D-0120578-C – 2019/11
Eclipse – Instructions for Use - US
Page 95

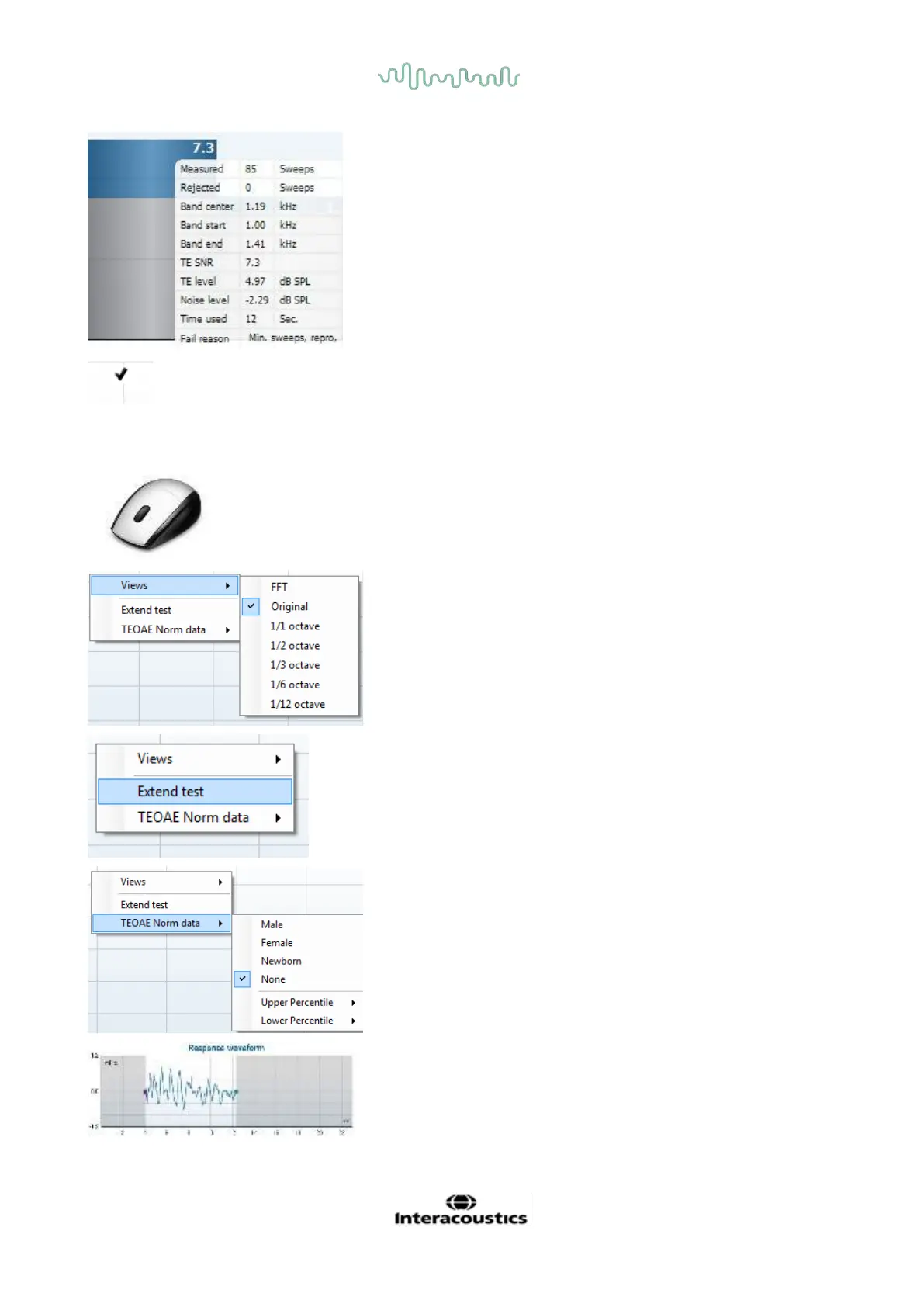

The SNR (Signal-to-noise ratio) is displayed within each of the
frequency bands tested and is calculated in dB.
Hovering the mouse over a frequency band shows details about
the ongoing or finished measurement.
The TE found checkmark symbol, a black checkmark, indicates
that this individual measurement met its specified criterion, but
testing will continue until the test time runs out or the test is
manually stopped.
Pointing at the desired graph and then using the scroll wheel of
your mouse allows zooming in and out on all graphs.
It is possible to change the view of the TE response graph by right
clicking. The dropdown menu gives the following options:
View allows you to change from the Original view to FFT view,
1/1, 1/2, 1/3, 1/6 and 1/12 octave band display.
Extend test allows continued testing after the test has ended on its
own or been manually stopped. The counter will revert to 0 and
start counting without a time limitation. Press Stop to stop testing.
Norm data allows you to change which TE norm data is displayed
in the TE response graph.
The response waveform along with the recording window and
response reproducibility range are shown.
The arrows indicate the recording window start and stop time.
The area outside the recording window is grayed out. The
recording window start and stop time can be changed prior to
starting a test by moving the arrows on the graph with the mouse,
