Intermec EasyCoder C4—User’s Guide 3
Chapter 1— Installation
O
I
Power Connection
1 Place the printer in a suitable location that allows easy access to
printed labels and preferably also easy reload of media and transfer
ribbon. The printer should only be operated while resting on a
horizontal surface, like a table or similar.
The printer and power supply unit must never be operated
in a location where they can get wet. Personal injury could
result! Only use with power supply Intermec SPN-470-24
P/N 1-092515-XX Mfg by PROTON.
2 Place the power supply in a suitable location between the printer and
an electrical outlet, for example on the fl oor. The power supply can
be used for 100 to 240 VAC, 50 to 60 Hz. The confi guration of the
power cord plug differs according to national standards.
3 Check that the printer’s On/Off switch at the back is off (O).
4 First, fi t the round connector into the power receptacle on the
printer's rear plate. Then connect the power cord between the power
supply and an AC wall socket.
5 The power can be switched on/off by means of the On/Off switch
situated at the back of the printer. The indicator lamp on the printer
lights green, red, or orange to indicate that the power is on. (It also
indicates various conditions, see Chapter 2.)

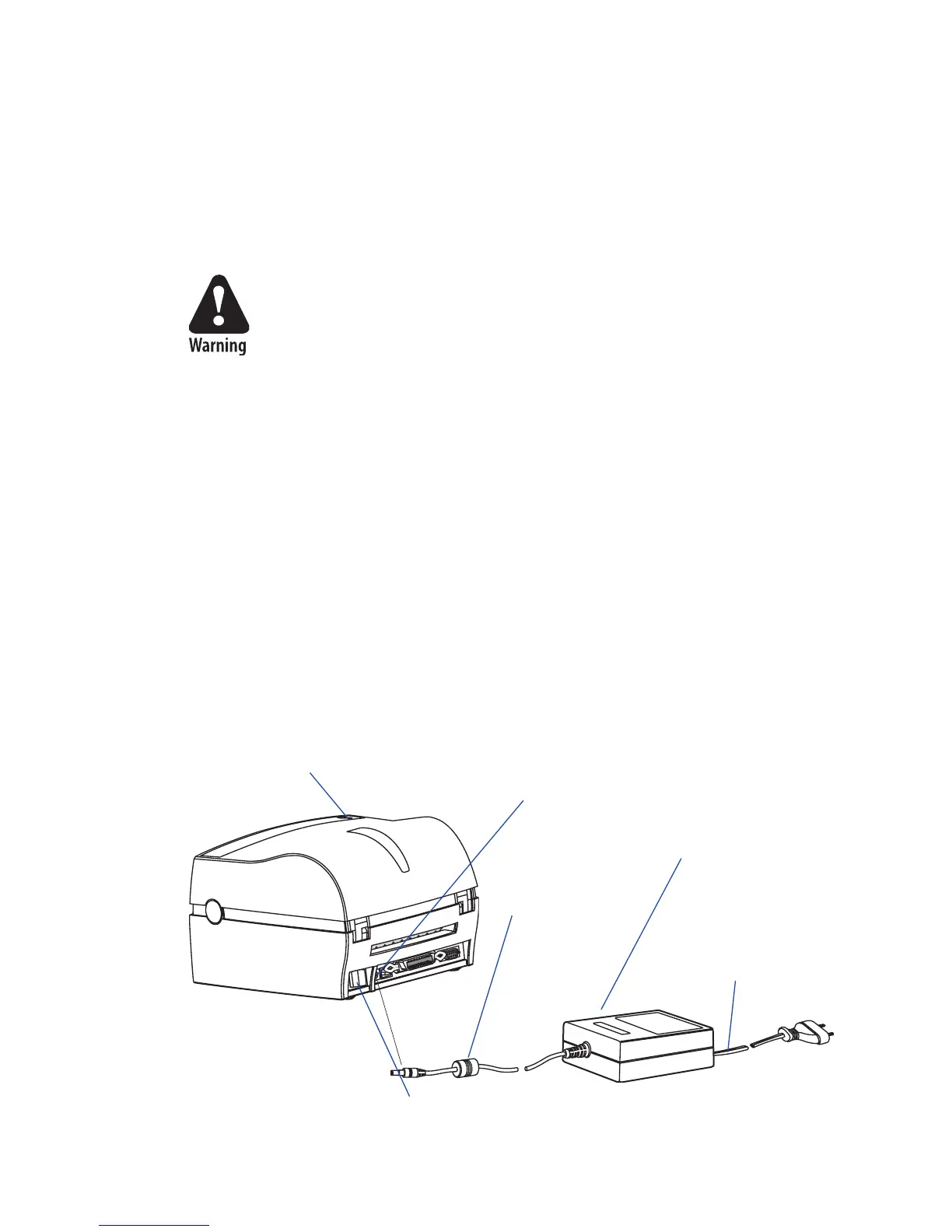

On/Off switch
Power receptacle
Power cord
Power supply unit
Low voltage
cable
Indicator lamp
