Chapter 2— Operation
Media Compartment

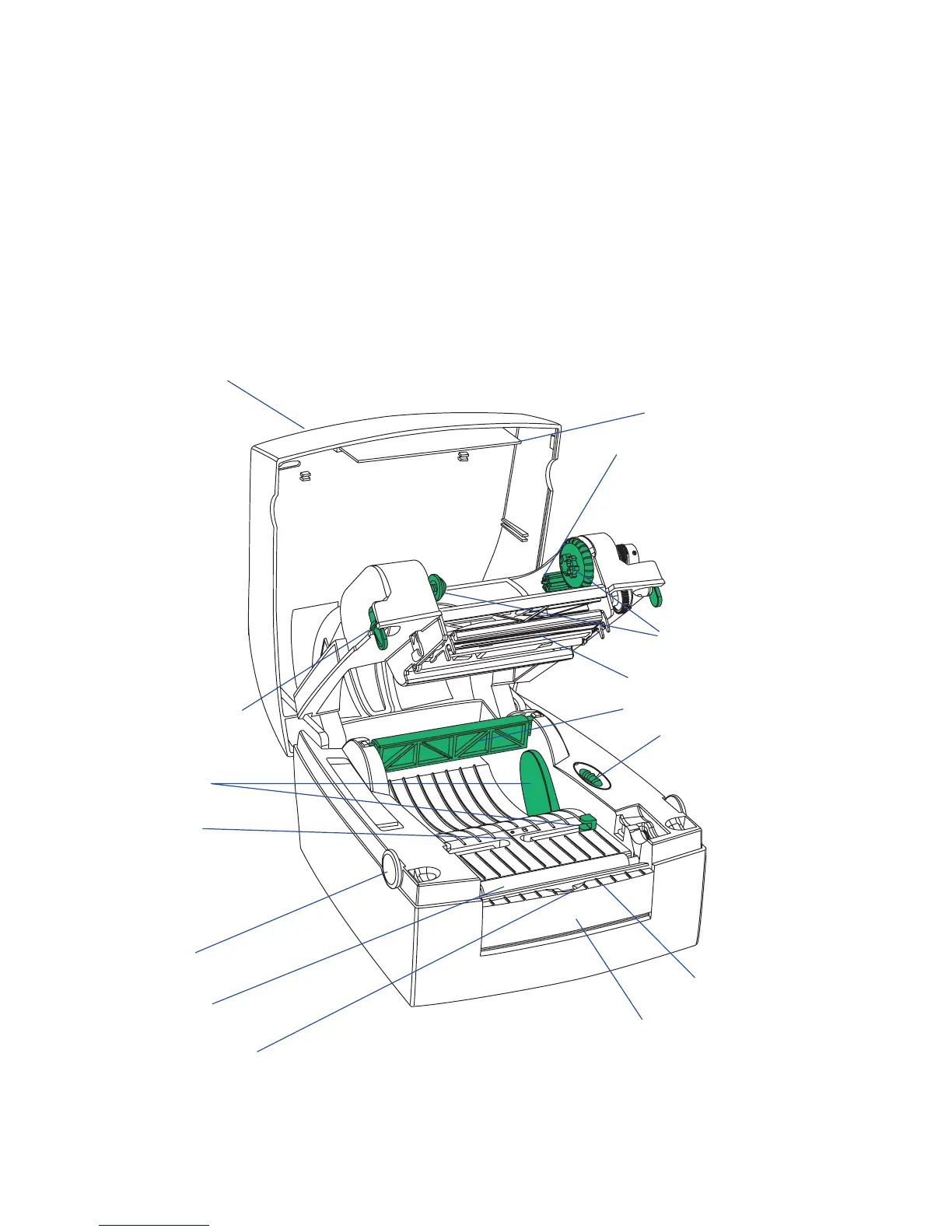

The media compartment accommodates the media supply and, in case
of thermal transfer capable printers, also the transfer ribbon supply (see
illustration below).
In dedicated direct thermal printers, the top cover and the print
mechanism are combined into a single unit.
Media roll spindle
Ribbon compart-
ment release
Print mechanism
Ribbon
rewind hub
Ribbon supply hub
Top cover
release
Edge guide
adjustment
wheel
Adjustable
edge guides
Peel-off
mechanism
or paper cutter
Label gap/
black mark
sensor
Peel-off bar
Label taken sensor
Top cover
Platen roller
Tear bar
