Intermec EasyCoder C4—User’s Guide 17
Chapter 2—Operation

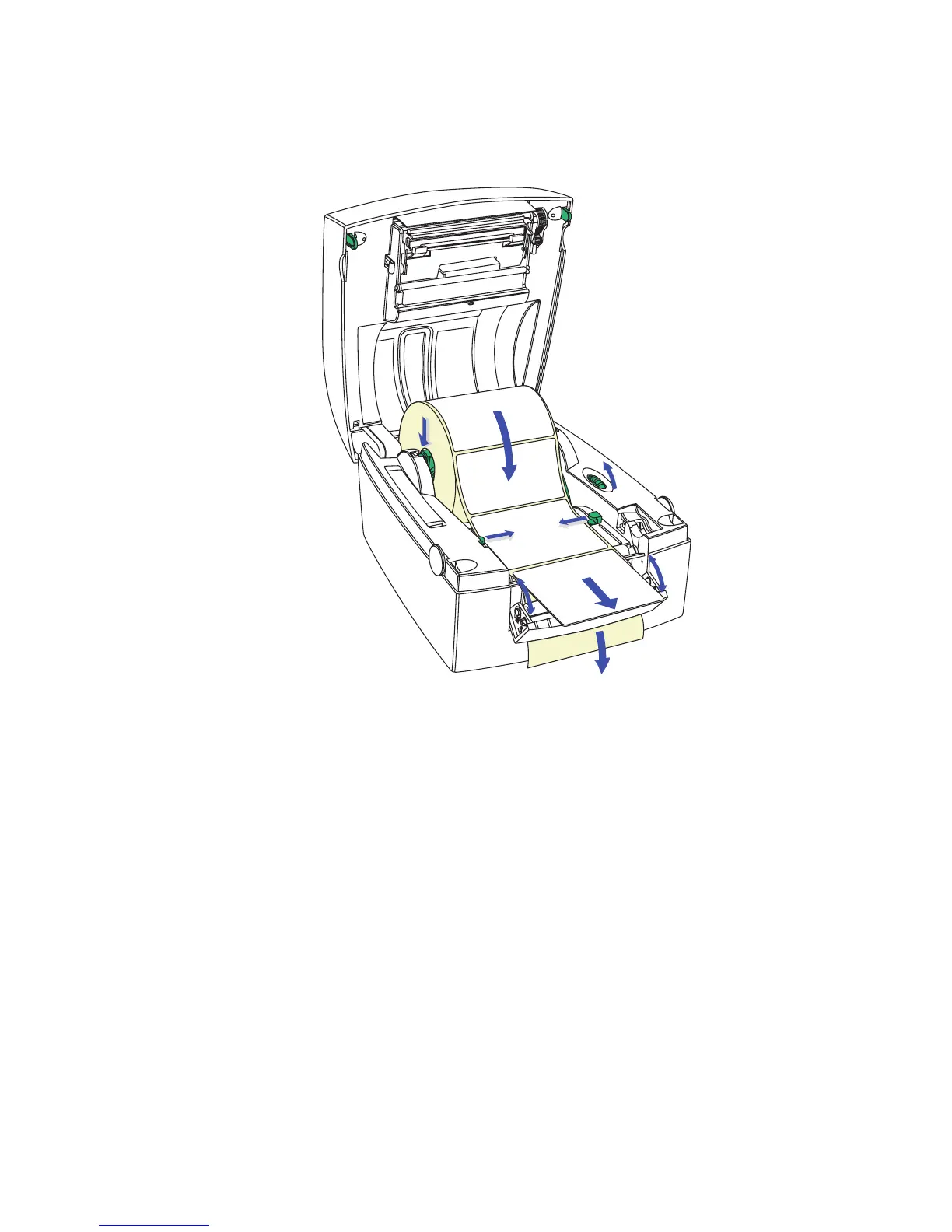

Peel-Off Operation
1 Open the printer's top cover by pressing the release buttons on both
sides and folding the cover upwards/rearwards.
2 Open the peel-off mechanism at the printer’s front.
3 Pull up the spindle and remove possible remaining labels or empty
label roll core.
4 Place the spindle into the core of a fresh label roll. Rotate the spindle
according to the inner diameter of the label roll core (see markings on
the spindle).
5 Wind the green edge guide wheel towards the front of the printer so
you can fi t the label roll between the guides.
6 Place the label roll and spindle in the media compartment and snap
the spindle into the slots on either side.
