Intermec EasyCoder C4 - Tags and Strip with Black Marks

42 Intermec EasyCoder C4—User’s Guide
Appendix B— Media Specifi cations
Tags and Strip with Black Marks

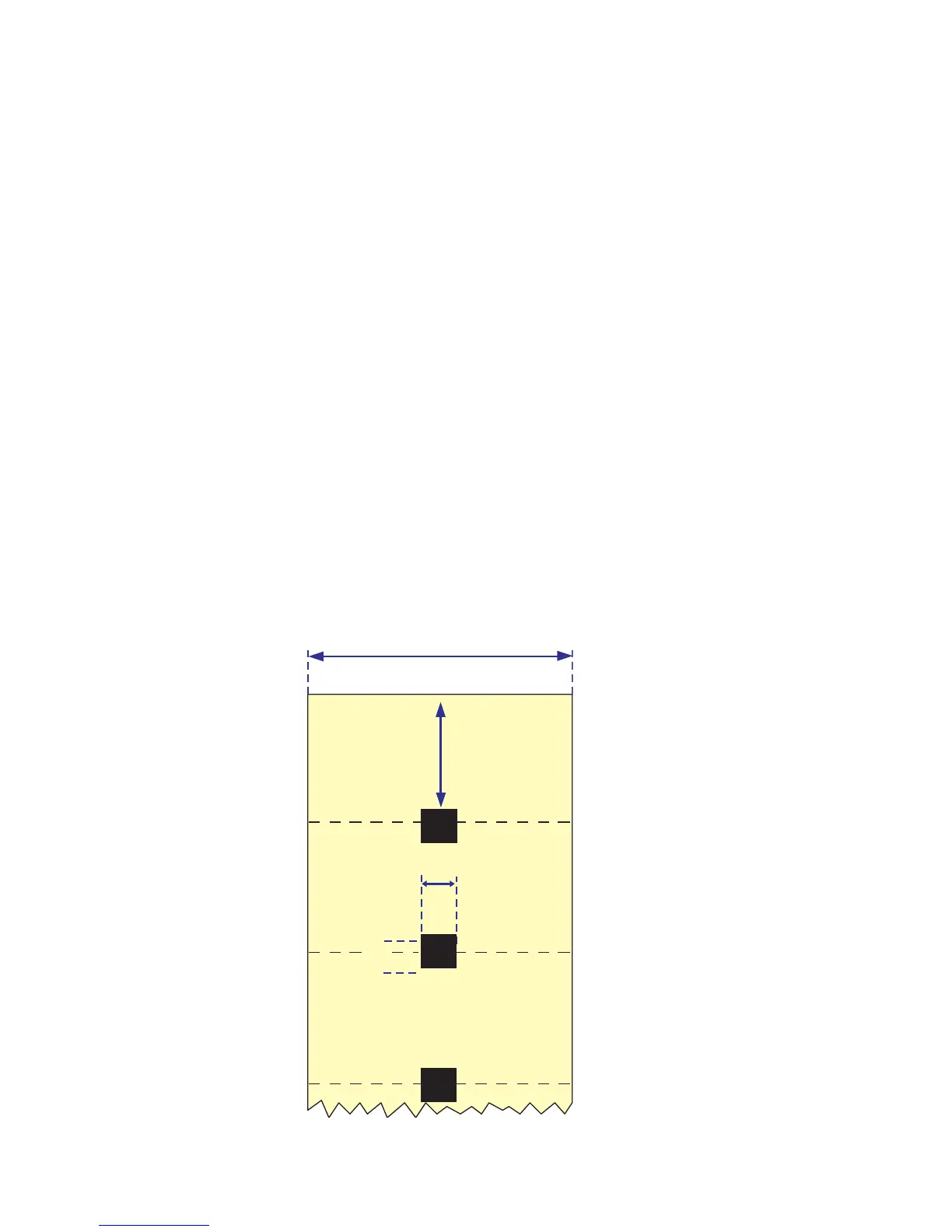

← a → Tag or strip width:
Maximum: 116.0 mm (4.57 inches)
Minimum: 25.0 mm (1.00 inches)
← b → Tag length:
Minimum: 6.35 mm (0.25 inches)
← c → Detection slot width:
← c → Black mark width:
Minimum: 28 mm (1.10 inches)
← d → Black mark height:
Maximum: 10 mm (0.39 inches)
Minimum: 3 mm 0.012 inches)
The black mark sensor is offset 10 mm (0.394 inches) to the right of the center of the
media path.
Max. refl ectance 5% at 940 nanometer. Carbon black.
a
c
TICKETS,TAGS, &
CONTINUOUS STRIP
d
b
