Chapter 4 — Media Load
36 EasyCoder PF2i Bar Code Label Printer User’s Guide (Fingerprint Version)

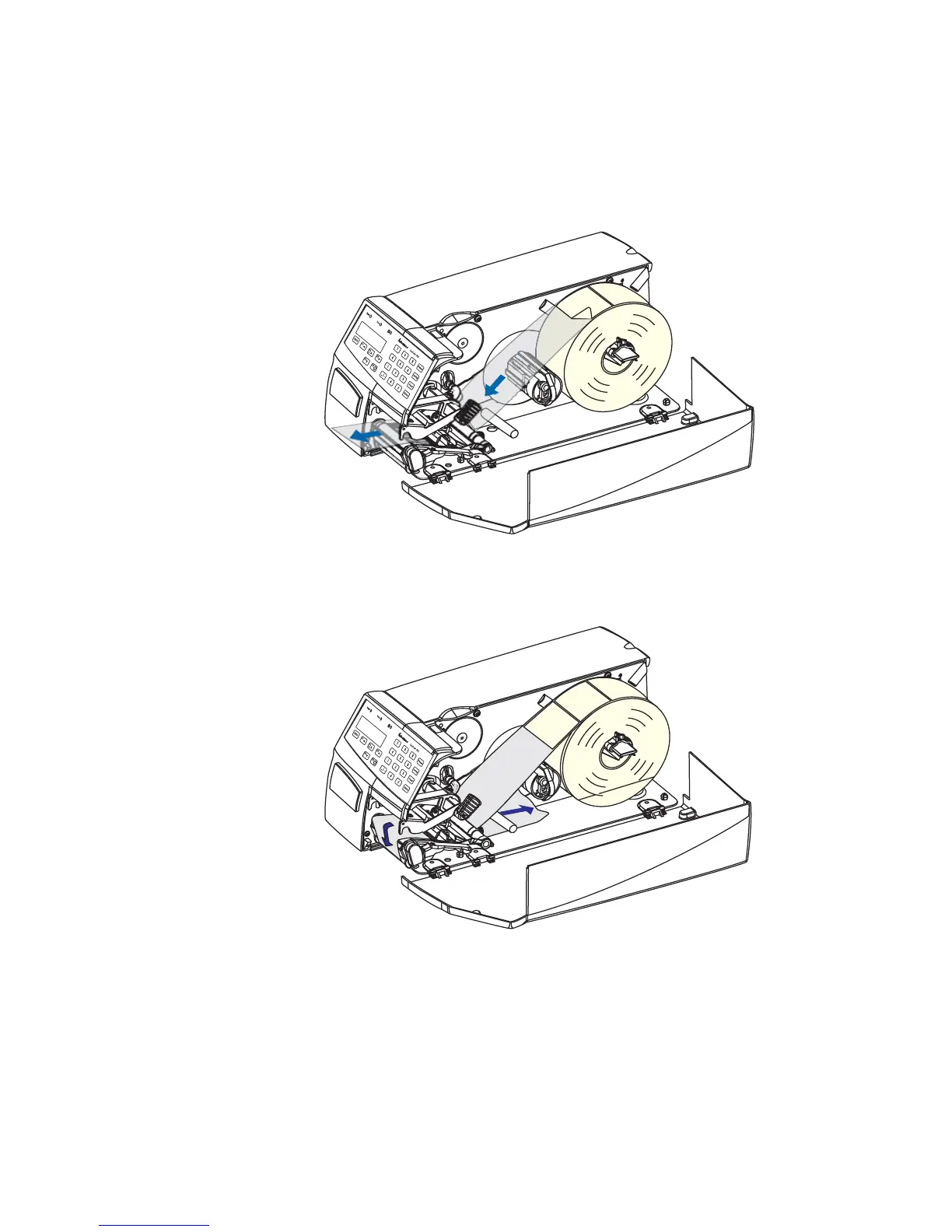

6 Remove labels from the first 50 cm (20 inches) of the liner.
Route the liner through the print mechanism and push it
inwards.
7 Route the liner around the tear bar and the liner drive roller
and back under the print mechanism and guide shaft.
