Intermec PC23d User Manual

Chapter 3 — Connect the Printer
78 PC23 and PC43 Desktop Printer User Manual
4 Press Enter.
5 Click Login in the upper right corner of the screen. The Login page
appears.
6 Type your Username and Password, and then click Login. The
default username is itadmin and the default password is pass.
7 Click the Configure tab. The Configuration Summary page
appears.

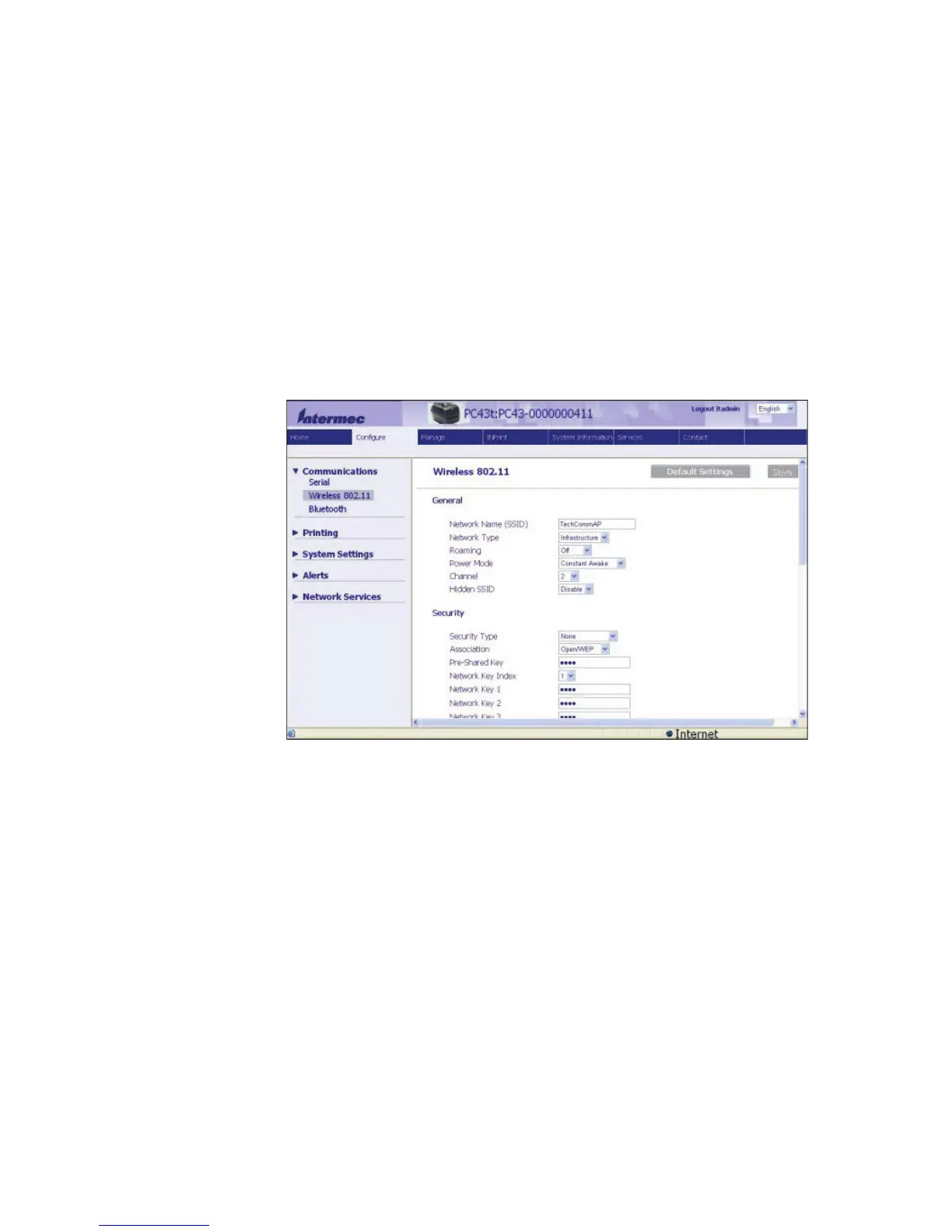

8 Click Communications > Wireless 802.11. The Wireless 802.11
page appears.
9 Change settings as needed, or click Default Settings to restore all
default Wireless 802.11 settings.
10 Click Save when you are done.
Wireless 802.11 General Settings
This section describes the 802.11 general settings. To view these
settings:
• From the printer Main Menu, select Settings > Communications
> Wireless 802.11 > General.
• From the printer web page, click the Configure tab >
Communications > Wireless 802.11.

Intermec PC23d Specifications

General

Color	-
Print technology	Direct thermal
Maximum resolution	203 x 203 DPI
Maximum print height	- mm
Maximum printing width	56 mm
Plug and Play	Yes
Sustainability certificates	ENERGY STAR
Certification	CE, RoHS
Internal memory	128 MB
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
AC adapter output current	2.5 A
AC adapter output voltage	24 V
Display	LCD
Product color	White
Operating temperature (T-T)	5 - 40 °C
Operating relative humidity (H-H)	10 - 80 %
USB 2.0 ports quantity	2
Connectivity technology	Wired
Quantity per pack	1 pc(s)
Maximum label width	60 mm
Maximum label length	1727 m
Maximum roll diameter	127 mm
Supported paper width	15 - 60 mm

Weight and Dimensions

Depth	215 mm
Width	125 mm
Height	177 mm
Weight	1450 g
