Interroll i Series User Manual

Interroll Drum motor series i, S, S/A, D
i-series product information
30
Version 4.1 (06/2015) en-US
Translation of original instruction manual
34 34

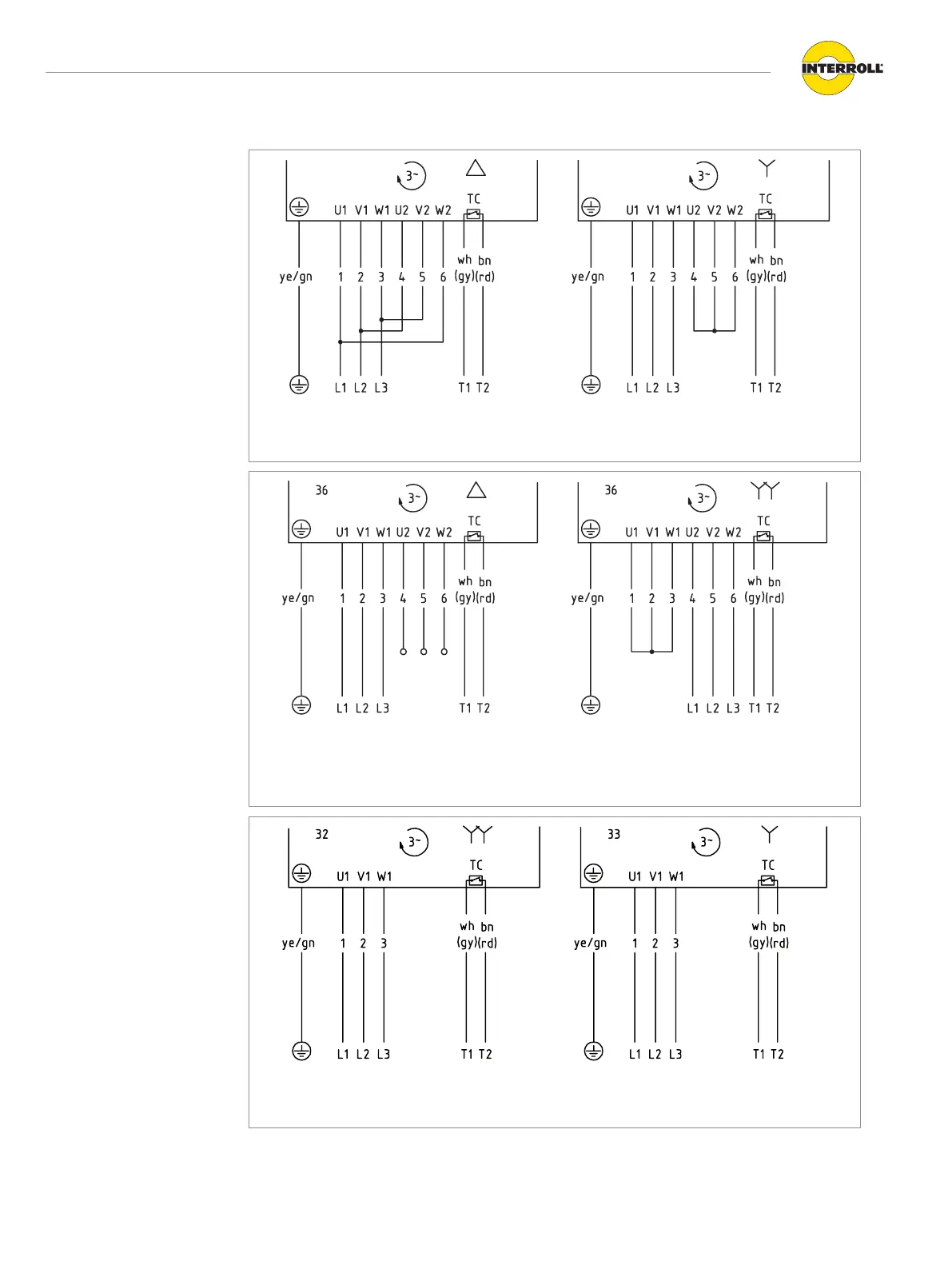

3-phase, 7+2-core cable, winding for 2 voltages, delta or star connection
Delta connection: Low voltage Star connection: High voltage
3-phase, 7+2-core cable, 2 speeds, delta or double star connection
Delta connection: Low speed Double star connection: High speed
The lines 4, 5 and 6 must be insulated individually.
3-phase, winding for 1 voltage, double star or star connection (inside connection)
Double star connection: Low voltage Star connection: High voltage
