Interroll Drum motor series i, S, S/A, D
D-series product information
Version 4.1 (06/2015) en-US
Translation of original instruction manual
55

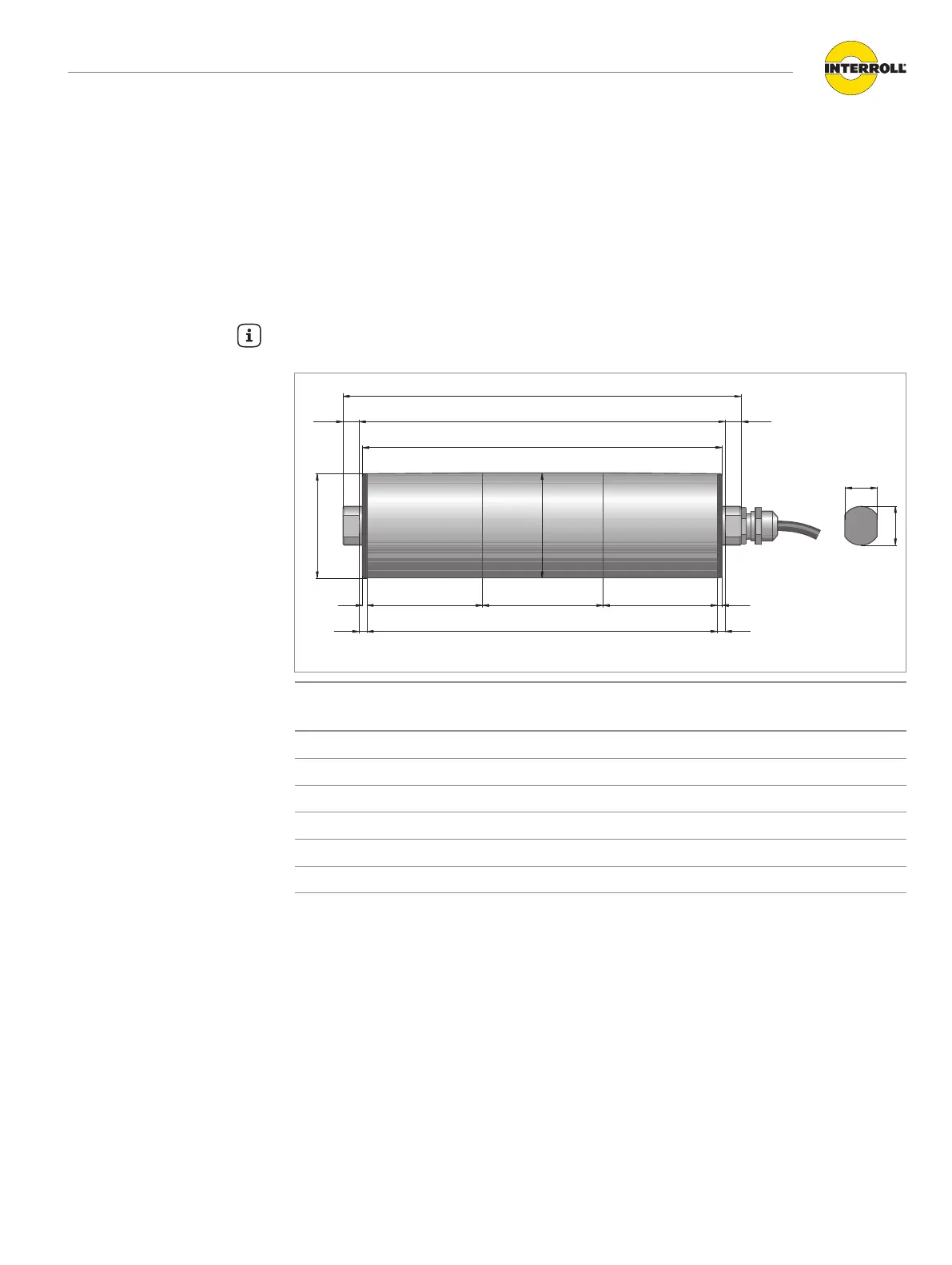

Dimensions of D-series drum motor
Some dimensions are listed as "SL+". SL is the abbreviation for "shell length" (tube length). This
dimension is indicated on the type plate of the drum motor (See "Type plate of D-series drum
motor", page 53).
All the length-dependent dimensions in the catalog and in this manual comply with the
requirements of DIN/ISO 2768 (medium quality).
The recommended distance between the mounting brackets (EL) under consideration of the
maximum thermal expansion and internal tolerances is EL + 2 mm.
6
3.5
3.5
12.5
12.5
6
1/31/3 1/3
25
EL = SL + 12
FW = SL + 7
SL
ØA
30
Dimensions of 80D and 113D
Type A
mm
B
mm
80D cambered 81.5 80.5
80D cylindrical 81.0 81.0
80D cylindrical with key 81.7 81.7
113D cambered 113.5 112.0
113D cylindrical 112.0 112.0
113D cylindrical with key 113.0 113.0
