Interroll Drum motor series i, S, S/A, D
Options and accessories
68
Version 4.1 (06/2015) en-US
Translation of original instruction manual
NOTICE
Damage of the encoder from excessive voltages/currents
4
Ensure that the maximum switching current is always less than 20 mA.
4 Do not operate the encoder with voltages above 24 V.
Abbreviations See "List of abbreviations", page 108

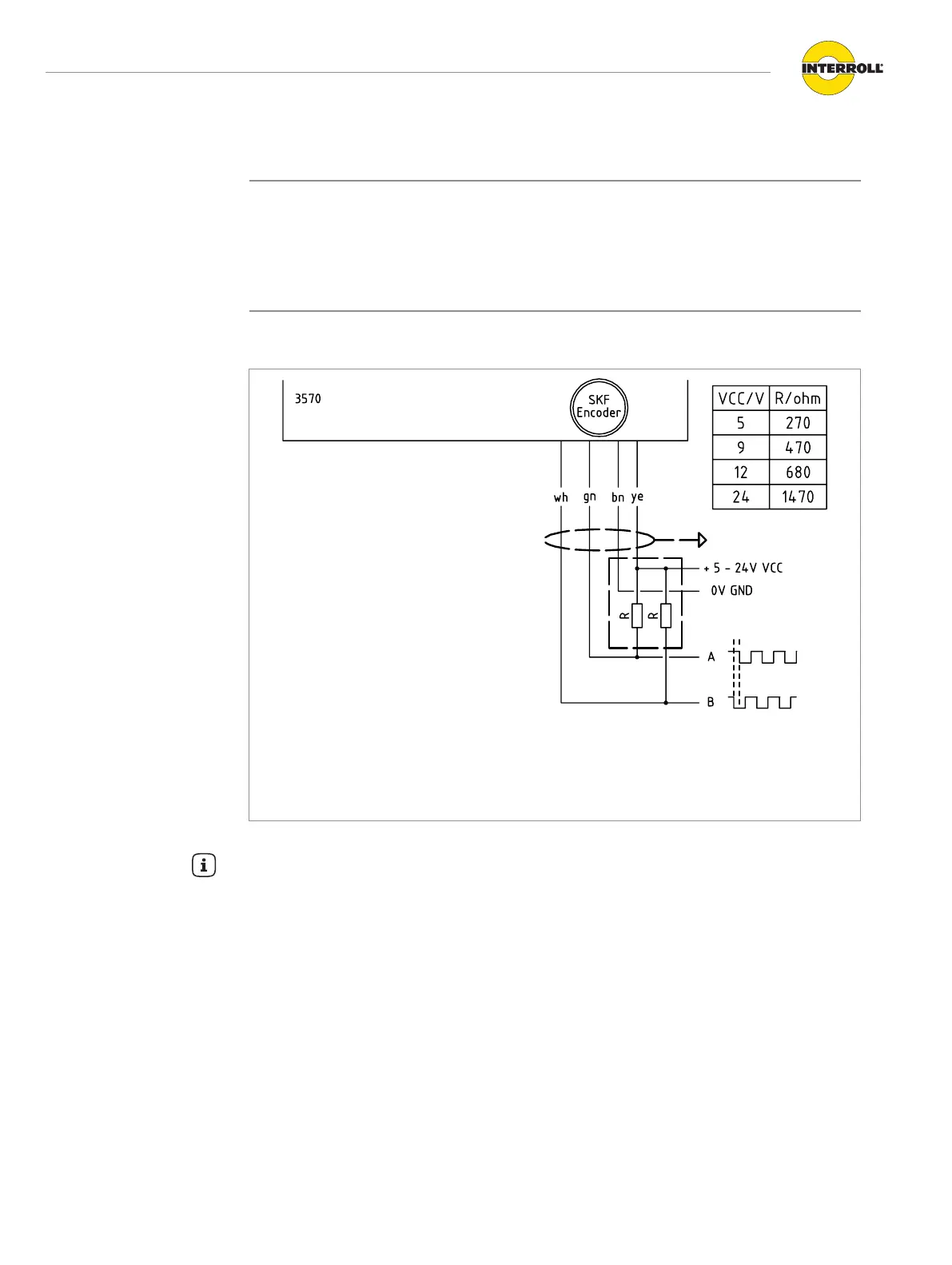

3-phase, 4+2 and 4-core cable, winding for 1 voltage, delta or star connection
Option: 2 voltages with 7+2-core cable available
Interroll recommends the use of optocouplers (See "Best connection option",
page 69).
The signal sequence of A and B depends on the gear stages of the drum motor. For this reason,
the rotational direction for drum motors with identical number of poles and output, but different
gear stages. In this case, the signal cables A and B can be swapped with each other.
Connections
