Interroll i Series User Manual

Interroll Drum motor series i, S, S/A, D
Options and accessories
Version 4.1 (06/2015) en-US
Translation of original instruction manual
61
Brake rectifiers for i-series
Input
voltage
V AC
Brake
voltage
V DC
Starting
voltage
V DC
Holding
voltage
V DC
Type Application Reference
number
115 104 104 52 Fast-switching rectifier Start/stop applications or
continuous operation
61011343
230 207 207 104 Fast-switching rectifier Start/stop applications or
continuous operation
61011343
230 104 104 104 One-way half-wave
rectifier and bridge
rectifier
Start/stop applications or
continuous operation
1001440
230 104 190 52 Phase rectifier Continuous operation 1001442
400 104 180 104 Multi-switch Continuous operation 1003326
460 104 180 104 Multi-switch Continuous operation 1003326
460 207 207 207 One-way half-wave
rectifier and bridge
rectifier
Start/stop applications or
continuous operation
1001441
The use of a fast-acting or phase rectifier allows saving energy since the holding voltage is lower
than the rated braking voltage.
Interroll recommends installing a switch between 3 and 4 for a faster release of the brake.

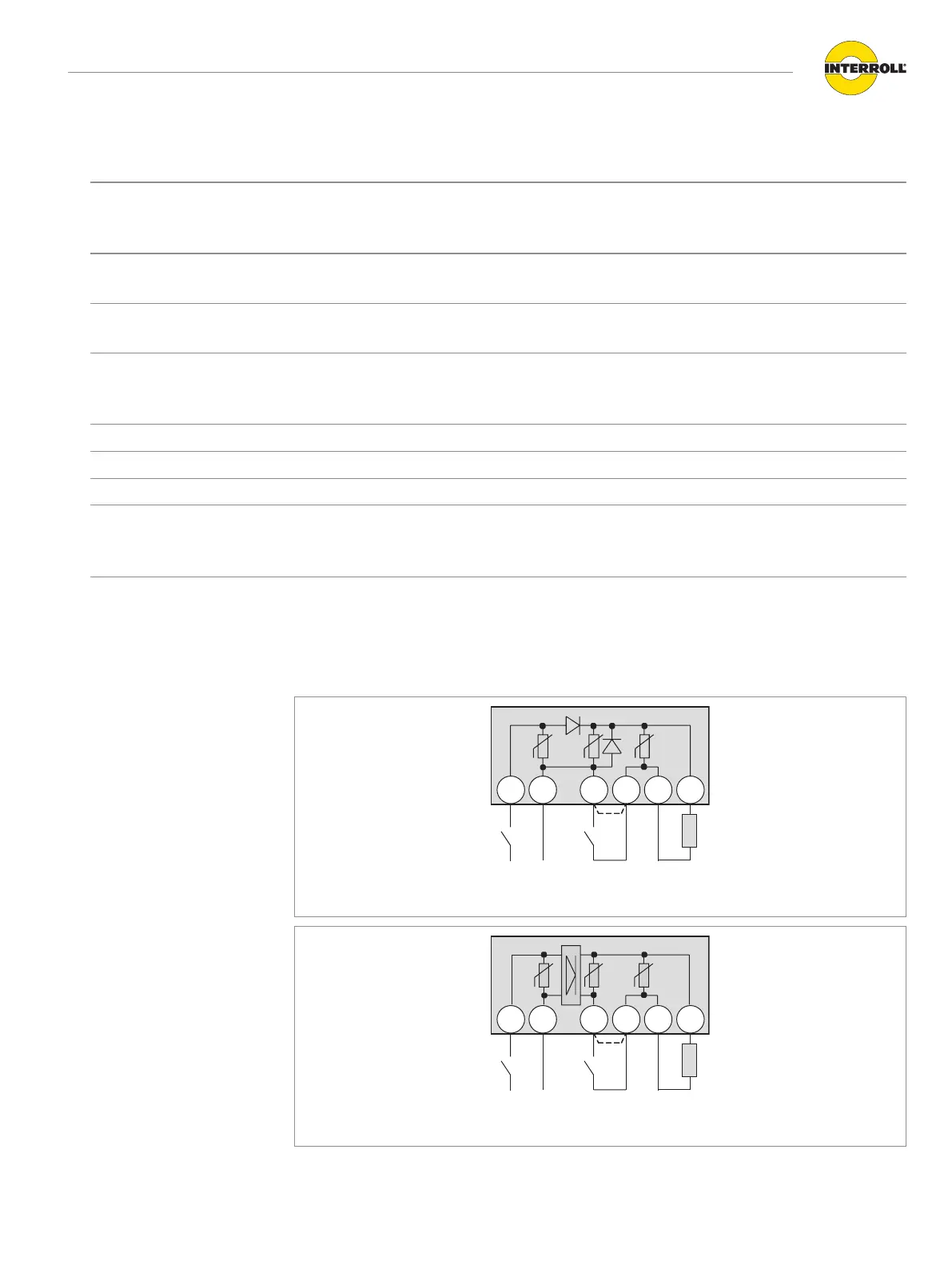

1 2
3 4 5 6
input bridge brake
One-way half-wave rectifier
1 2
3 4 5 6
input bridge brake
Bridge rectifier
Brake rectifier connections
