Interroll i Series - Connections in the Terminal Box

Interroll Drum motor series i, S, S/A, D
i-series product information
32
Version 4.1 (06/2015) en-US
Translation of original instruction manual
40B 41B

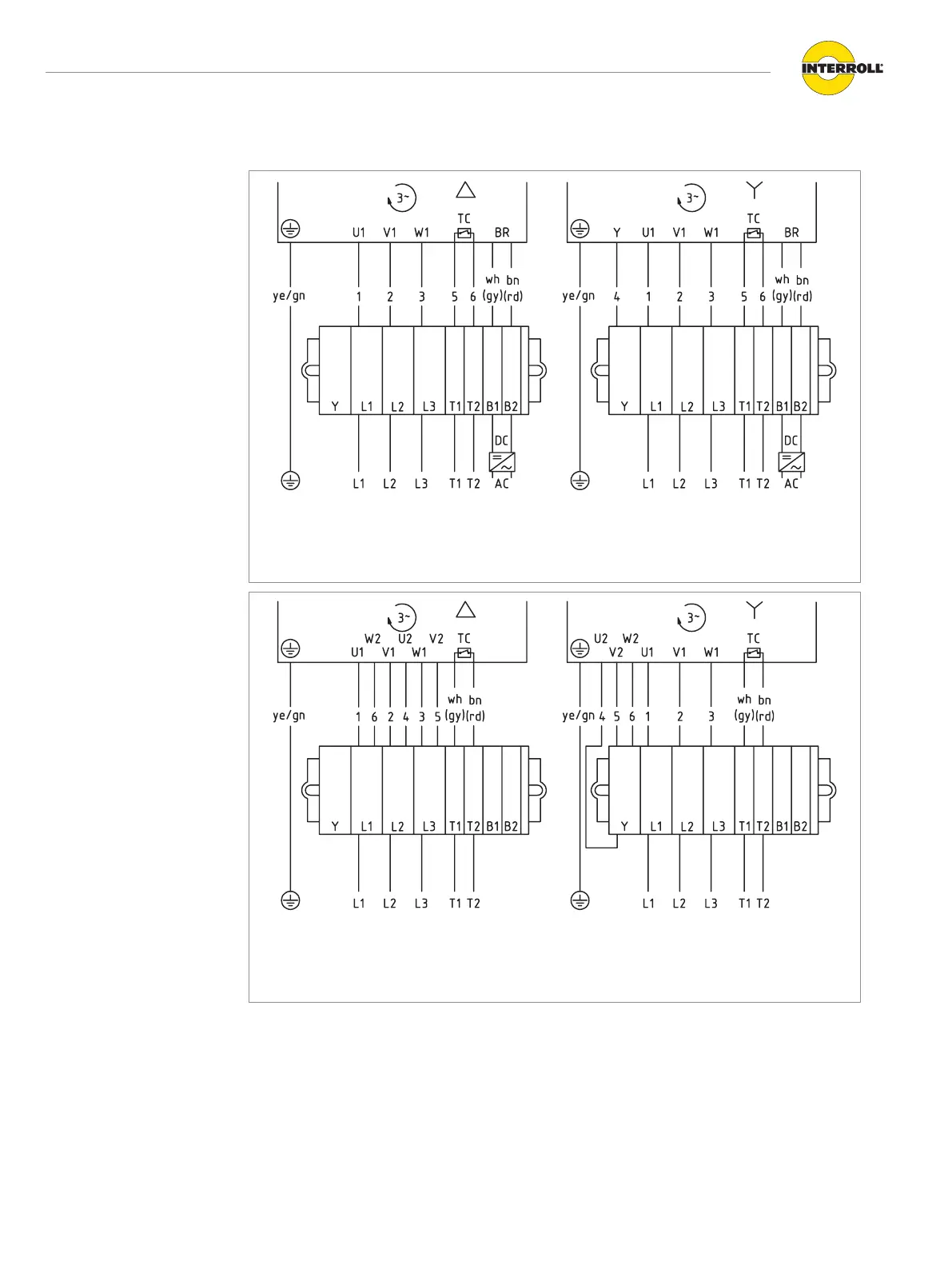

3-phase, winding for 1 voltage, delta or star connection (inside connection), with brake
Delta connection: Low voltage Star connection: High voltage
Maximum torque for terminal box cover screws: 1.5 Nm
44 45
3-phase, winding for 2 voltages, delta or star connection
Delta connection: Low voltage Star connection: High voltage
Maximum torque for terminal box cover screws: 1.5 Nm
Connections in the
terminal box
