Interroll i Series - Encoder connection

Interroll Drum motor series i, S, S/A, D
D-series product information
Version 4.1 (06/2015) en-US
Translation of original instruction manual
57
x

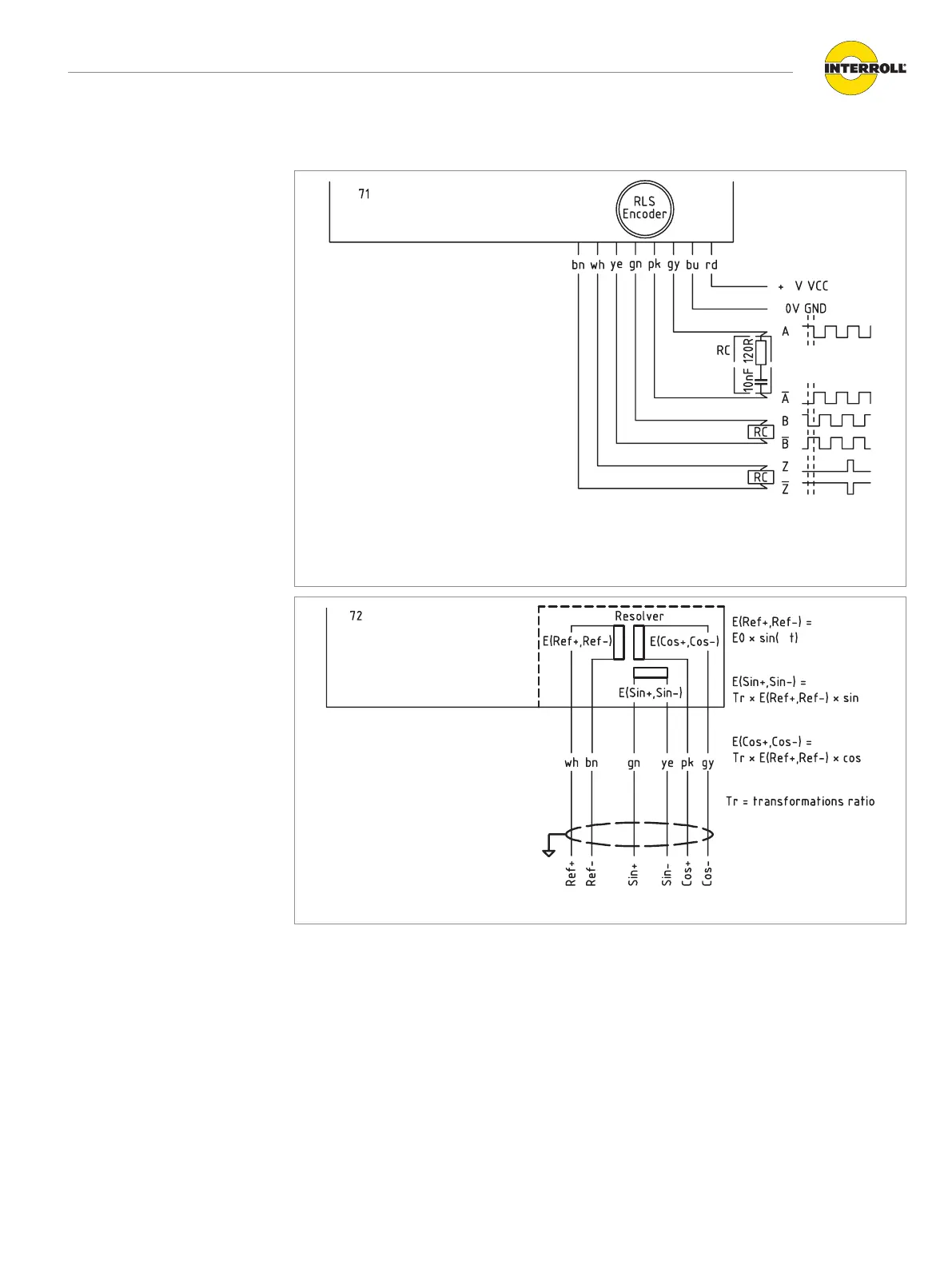

RLS incremental encoder
The connection with resistor and capacitor (RC) can reduce electronic interferences.
x = encoder voltage acc. to motor type plate
ϕ
ϕ
ω
LTN resolver
Encoder connection
