Interroll Drum motor series i, S, S/A, D
Assembly and installation
Version 4.1 (06/2015) en-US
Translation of original instruction manual
77
-2°
-5°
+2°
+5°

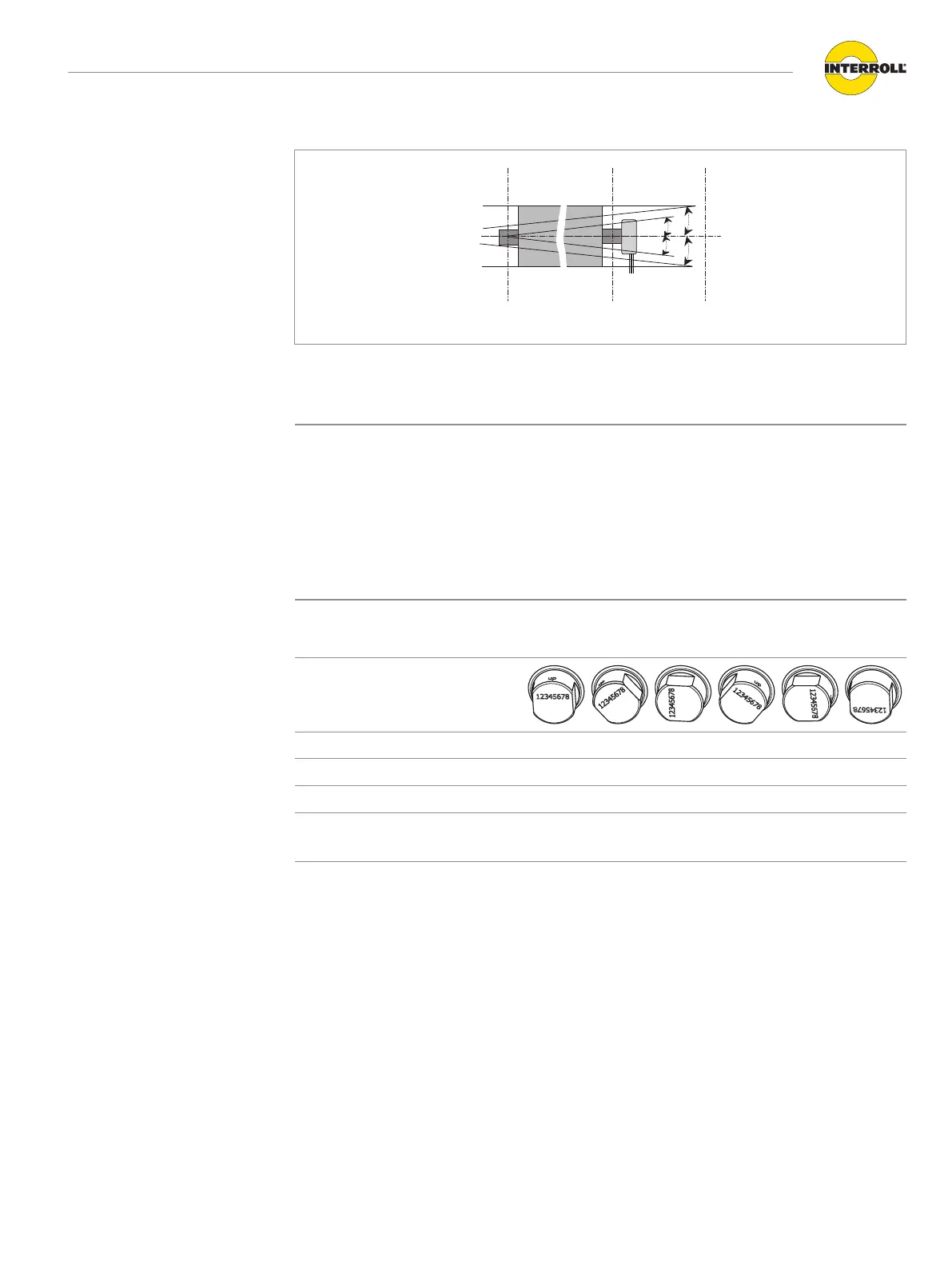

Position of the drum motor
All drum motors are identified with the serial number on one end of the axle and some with the
letters UP.
NOTICE
Property damages from incorrect mounting position
4
Do not install motors of the i-series in the 180° mounting position (serial number must not be
upside down).
4
Ensure that the serial number and/or the UP indicator is located at one of the positions
indicated in the following table.
The models 80S, 113S and the D-series can be installed in any orientation.
Motor type / mounting position 0° -45° -90° 45° 90° 180°
80i - 217i asynchronous motor
√ √ √ √ √
80S / 113S / 113S/A
√ √ √ √ √ √
80D / 88D / 113D synchronous
motor
√ √ √ √ √ √
The mounting brackets must be sufficiently robust to withstand the motor torque.
4
Install the brackets at the conveyor or machine frame. Ensure that the drum motor
is installed parallel to the idler pulley and at a right angle to the conveyor frame.
4
Insert the axle ends of the drum motor into the mounting brackets according to the
"Mounting position" table (see above).
4
If the axle must be fastened to the mounting brackets (e.g. with a screw through a cross hole
in the journal), it should be done only on one side so that the other side can move in axial
direction in case of thermal expansion.
4
Ensure that at least 80% of the key surfaces of the drum motor are held by the
mounting brackets.
4
Ensure that the distance between the key surfaces and the bracket is not more than 0.4 mm.
Installing the motor with
mounting brackets
