Interroll Drum motor series i, S, S/A, D
S/A-series product information
Version 4.1 (06/2015) en-US
Translation of original instruction manual
51

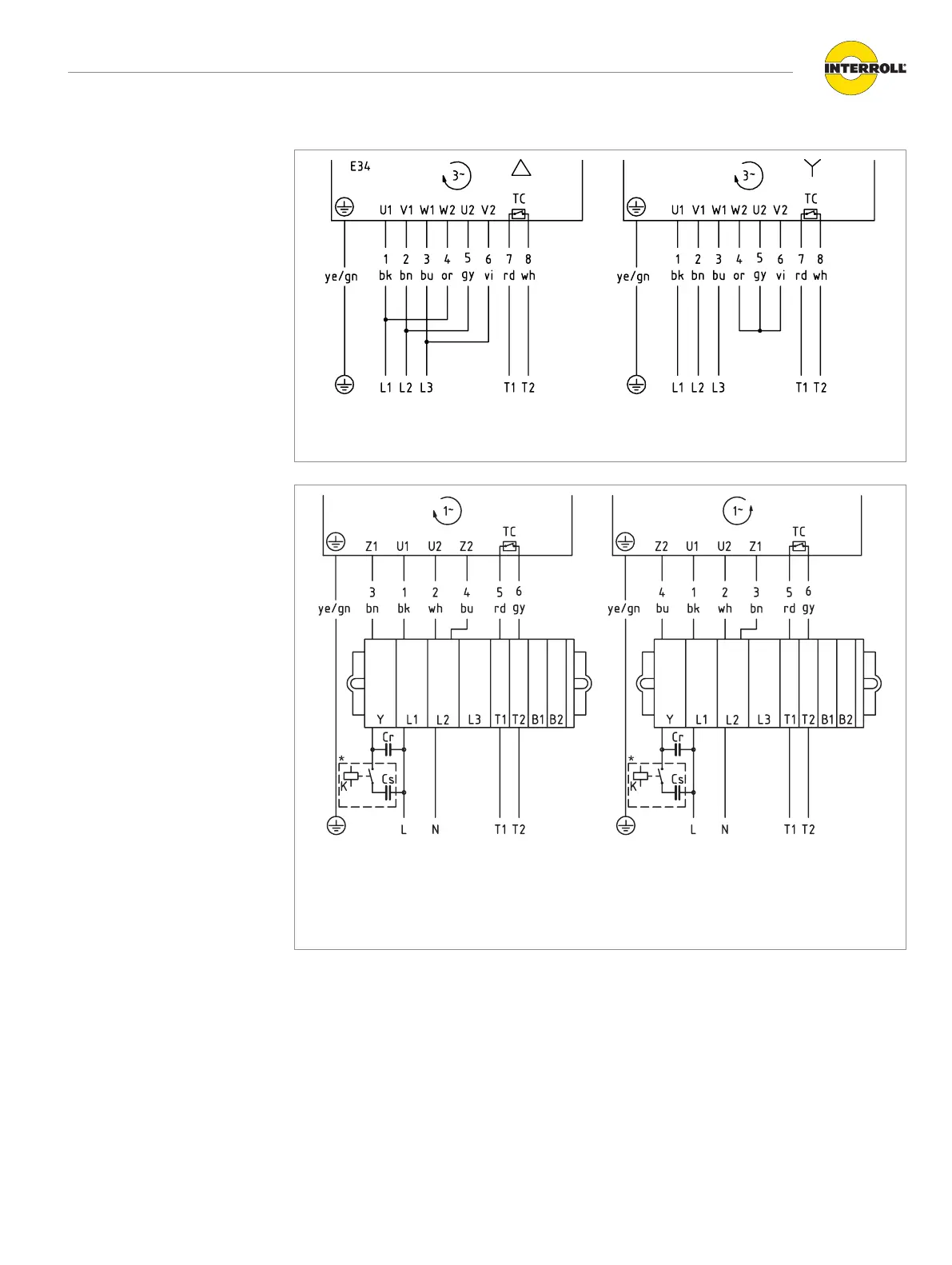

3-phase, 9-core cable, winding for 2 voltages, delta or star connection
Delta connection: Low voltage Star connection: High voltage
1-phase, 7-core cable
* A starting capacitor and a matching switching relay can be connected as an option to
improve the starting torque of the single-phase motor.
Maximum torque for terminal box cover screws: 1.5 Nm
Connections in the
terminal box
