Interroll Drum motor series i, S
, S
/
A, D
S/
A-series product information
52
V
ersion 4.1 (06/2015) en-US
T
ranslation of original instruction manual
E45
E44

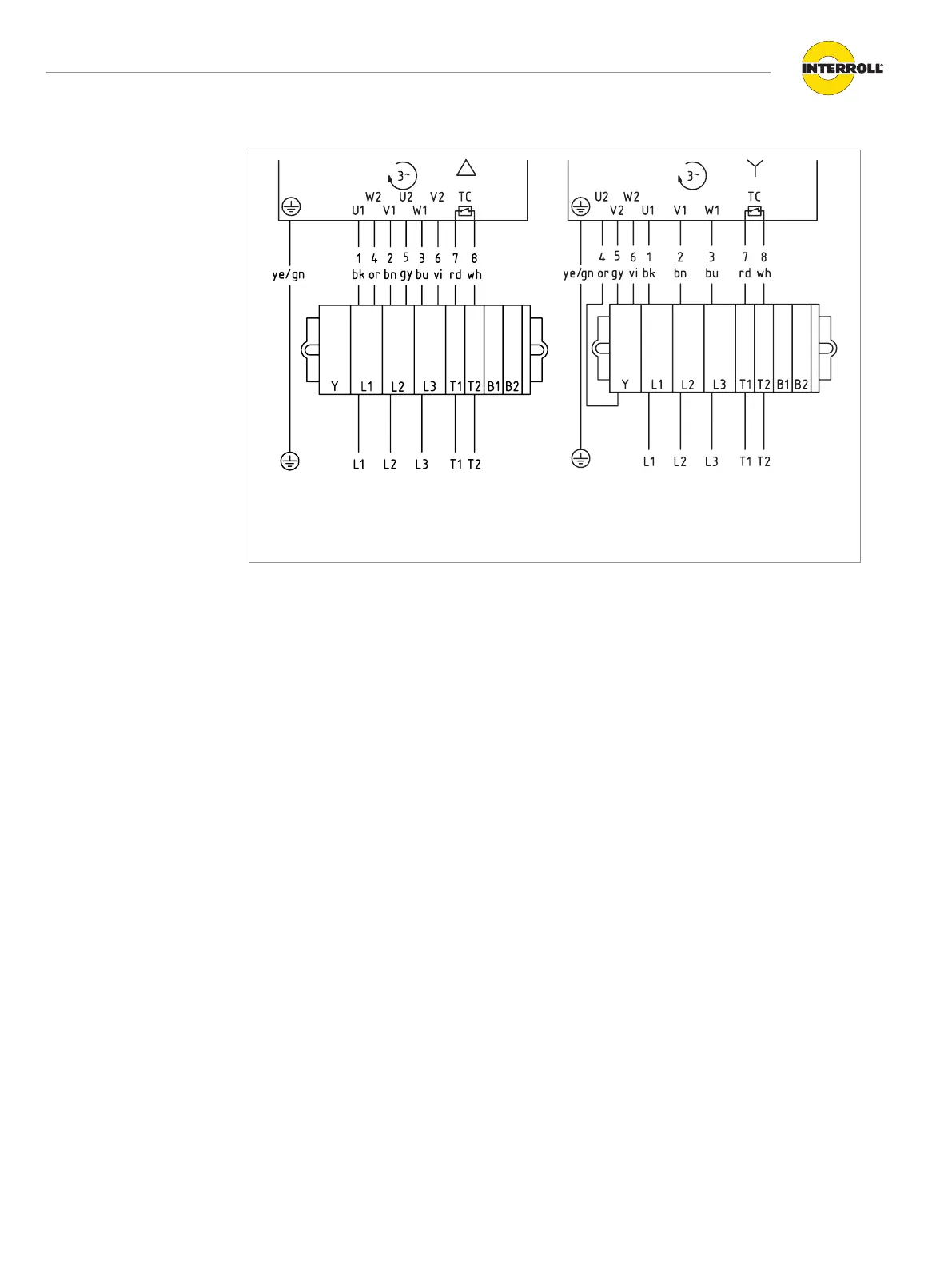

3-phase, 9-core cable, winding for 2 voltages
, delta or star connection
Delta connection: L
ow voltage
Star connection: High v
oltage
Maximum torque for terminal box cov
er screws: 1.5 Nm
51
53
Table of Contents
Default Chapter
3
Table of Contents
3
Introduction
7
Information about the Manual
7
Contents
7
The Instruction Manual Is Part of the Product
7
Warning Notices in this Manual
7
Symbols
8
Safety
9
State of the Art
9
Intended Use
9
Unintended Use
9
Personnel Qualification
10
Operators
10
Service Personnel
10
Electricians
10
Dangers
10
Bodily Injury
10
Electricity
10
Oil
10
Rotating Parts
10
Hot Motor Parts
11
Working Environment
11
Faults During Operation
11
Maintenance
11
Accidental Motor Start
11
Interfaces to Other Devices
11
General Technical Information
12
Product Description
12
Options
12
Technical Data
13
Product Identification
13
Thermal Protection
14
Standard Design: Temperature Limiter, Automatically Switching Back
14
Optional Version: PTC (Positive Temperature Coefficient)
15
Use of 50-Hz Motors on 60-Hz Supply System
15
I-Series Product Information
17
Type Plate of I-Series Drum Motor
17
Electrical Data of I-Series
19
80I 3-Phase
19
113I 3-Phase
20
138I 3-Phase
22
165I and 217I* 3-Phase
24
217I 3-Phase
26
Dimensions of I-Series Drum Motor
28
Connection Diagrams for the I-Series
29
Cable Connections
29
Connections in the Terminal Box
32
S-Series Product Information
37
Type Plate of S-Series Drum Motor
37
Electrical Data of S-Series
39
80S 1-Phase
39
113S 3-Phase
40
Dimensions of S-Series Drum Motor
42
Connection Diagrams for the S-Series
44
Cable Connections
44
Connections in the Terminal Box
46
S/A-Series Product Information
47
Type Plate of S/A-Series Drum Motor
47
Electrical Data of S/A-Series
48
113S/A 1-Phase
48
113S/A 3-Phase
48
Dimensions of S/A-Series Drum Motor
49
Connection Diagrams for the S/A-Series
50
Cable Connections
50
Connections in the Terminal Box
51
D-Series Product Information
53
Type Plate of D-Series Drum Motor
53
Electrical Data of D-Series
54
Dimensions of D-Series Drum Motor
55
Connection Diagrams for the D-Series
56
Cable Connections
56
Encoder Connection
57
Options and Accessories
59
Electromagnetic Brake for the I-Series
59
Brake Rectifiers for I-Series
61
Brake Rectifier Connections
61
Brake Rectifier Dimensions
63
Asynchronous Drum Motors with Frequency Inverters
65
Torque Dependent on Input Frequency
65
Frequency Inverter Parameters
65
Encoder Type BMB-6202 & 6205 SKF for the I-Series
67
Technical Data
67
Connections
68
Best Connection Option
69
Encoder Type RM44-RLS for the I and D-Series
70
Technical Data
70
Connections
71
Signal Connection
71
Resolver Type RE-15-1-LTN
72
Connections
72
Technical Data
72
Impedance
73
Transport and Storage
74
Transport
74
Storage
75
Assembly and Installation
76
Warning Notices Concerning the Installation
76
Installing the Drum Motor
76
Positioning the Drum Motor
76
Installing the Motor with Mounting Brackets
77
Installation Considering Hygienic Aspects
79
Belt Assembly
79
Belt Width / Tube Length
79
Belt Adjustment
79
Tensioning the Belt
80
Belt Tension
81
Belt Elongation
81
Measuring the Belt Elongation
82
Calculating the Belt Elongation
82
Drum Coating
83
Sprockets
83
Warning Notices Concerning the Electrical Installation
84
Electrical Connection of the Drum Motor
84
Connecting the Drum Motor - with a Cable
84
Connecting the Drum Motor - with a Terminal Box
84
Single-Phase Motor
84
External Motor Protection
85
Integrated Thermal Protection
85
Frequency Inverter
85
Backstop
86
Electromagnetic Brake
86
Initial Startup and Operation
88
Initial Startup
88
Checks before the Initial Startup
88
Operation
89
Checks before Every Startup
89
Procedure in Case of Accident or Fault
89
Maintenance and Cleaning
90
Warning Notices Concerning Maintenance and Cleaning
90
Preparation for Maintenance and Cleaning by Hand
90
Maintenance
90
Checking the Drum Motor
90
Relubricating the Drum Motor
90
Maintaining Drum Motors with Optional, Relubricating IP66 Seals
90
Oil Change at Drum Motor
91
Oil Types
92
Oil Quantities for the I-Series in Liters (Standard Installation)
93
Oil Quantities for the I-Series (Vertical Installation)
94
Cleaning
94
Cleaning the Drum Motor with Pressure Washer
94
Hygienic Cleaning
95
Troubleshooting
96
Decommissioning and Disposal
106
Shutdown
106
Disposal
106
Appendix
107
Warranty for Interroll Drum Motors
107
Restrictions
107
Exceptions
107
List of Abbreviations
108
Electrical Data
108
Connection Diagrams
109
Color Coding
109
Installation Declaration
111
