Interroll i Series User Manual

Interroll Drum motor series i, S, S/A, D
D-series product information
56
Version 4.1 (06/2015) en-US
Translation of original instruction manual
6
82
12.5
12.5
6
25
EL = SL + 12
FW = SL + 7
AGL = SL + 37
SL
Ø80.5
30
88

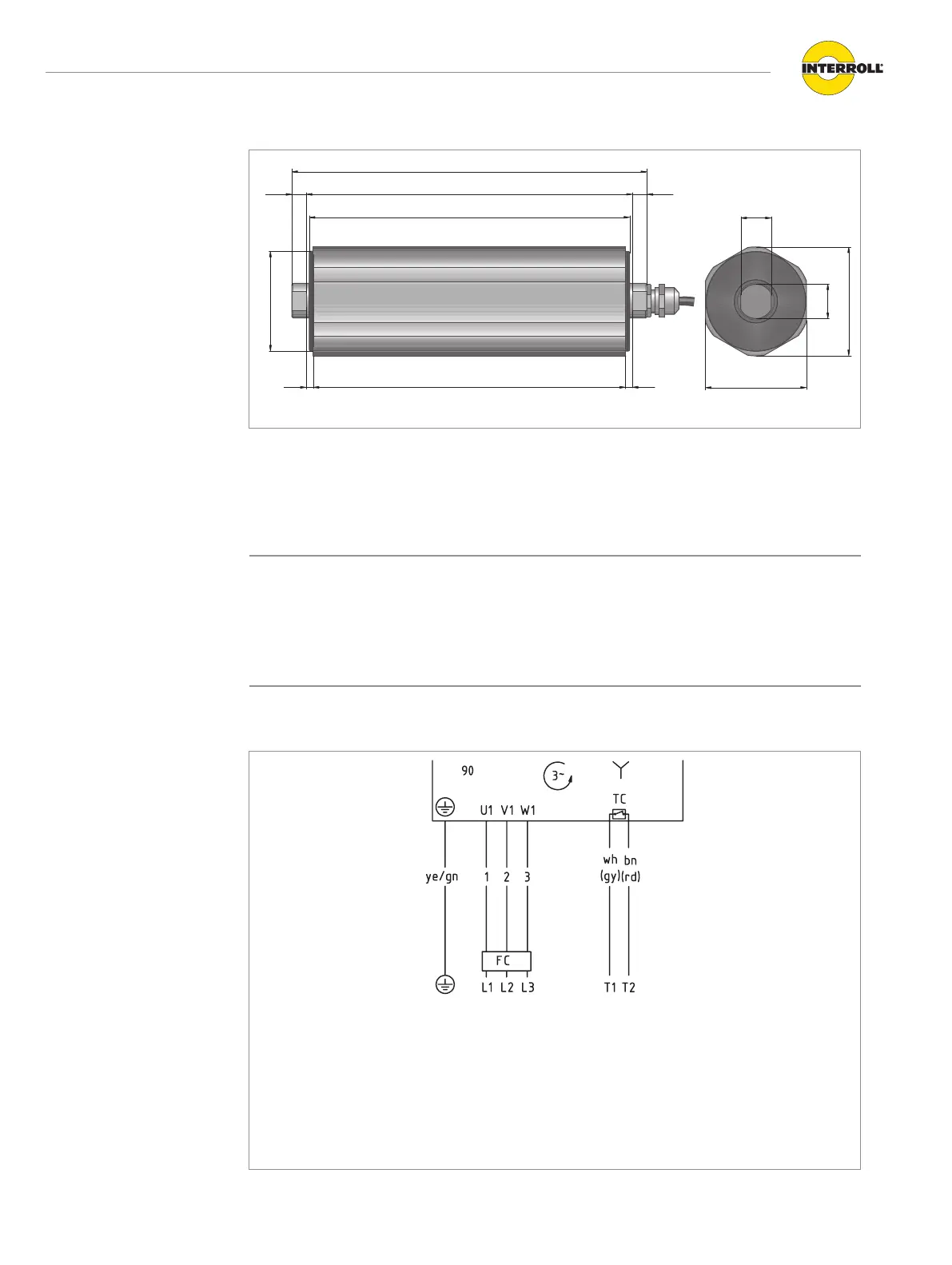

Dimensions of 88D
Connection diagrams for the D-series
This instruction manual lists only standard connection diagrams. For other connection types, the
connection diagram is supplied separately with the drum motor.
NOTICE
Damage of the drum motor from incorrect connection
4
Do not connect drum motors of the D-series directly to the supply system; instead, operate
them via a suitable frequency inverter.
Abbreviations See "
List of abbreviations", page 108
3-phase, 4+2-core cable, winding for 1 voltage, star connection
Cable connections
