Connection diagrams for the i-series
This instruction manual lists only standard connection diagrams. For other connection types, the
connection diagram is supplied separately with the drum motor.
Abbreviations See "
List of abbreviations", page 108
30 31

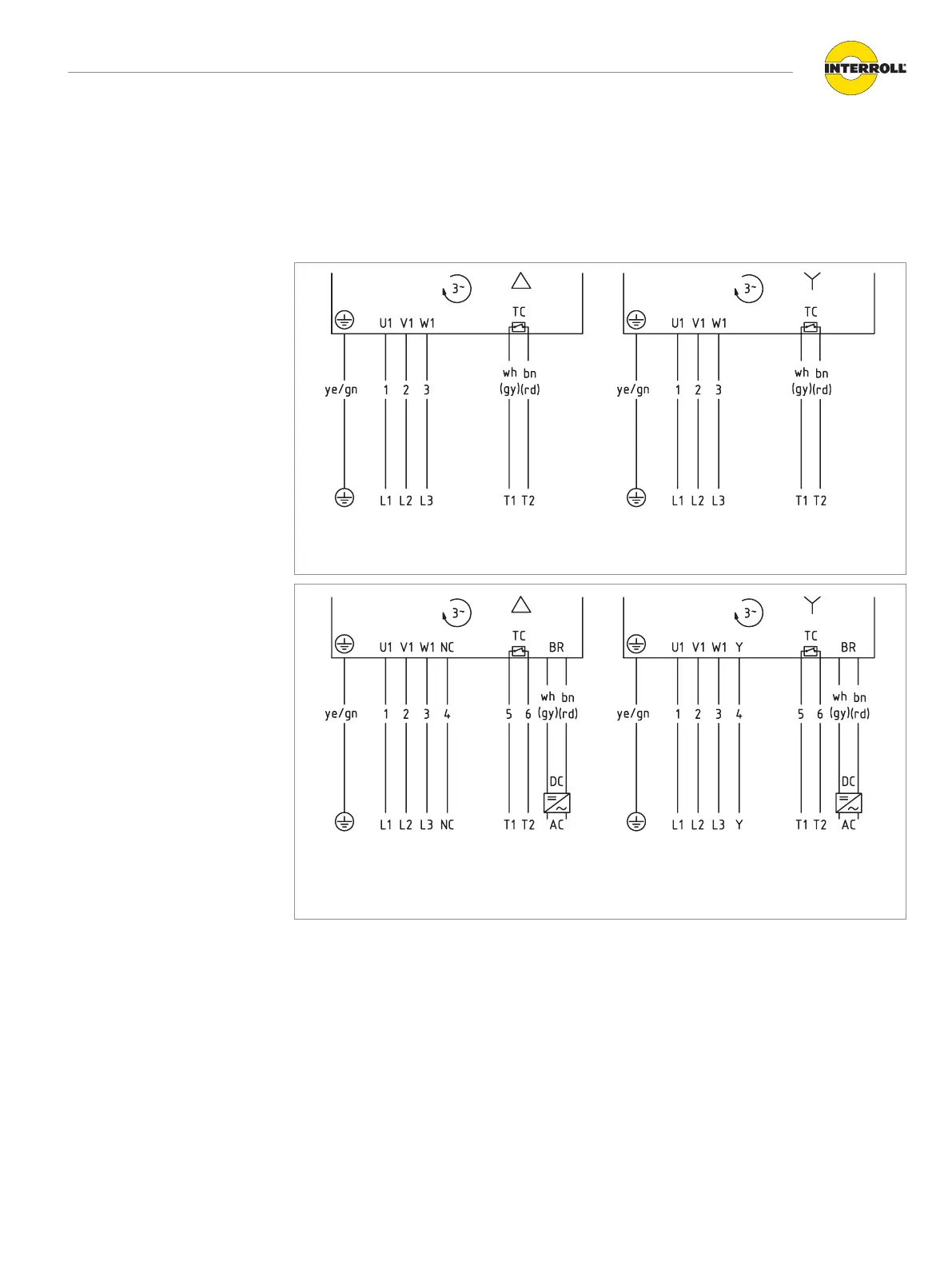

3-phase, 4+2-core cable, winding for 1 voltage, delta or star connection (inside connection)
Delta connection: Low voltage Star connection: High voltage
30B 31B
3-phase, 7+2-core cable, winding for 1 voltage, delta or star connection (switched internally), with
brake
Delta connection: Low voltage Star connection: High voltage
