Interroll i Series User Manual

Interroll Drum motor series i, S, S/A, D
S-series product information
44
Version 4.1 (06/2015) en-US
Translation of original instruction manual

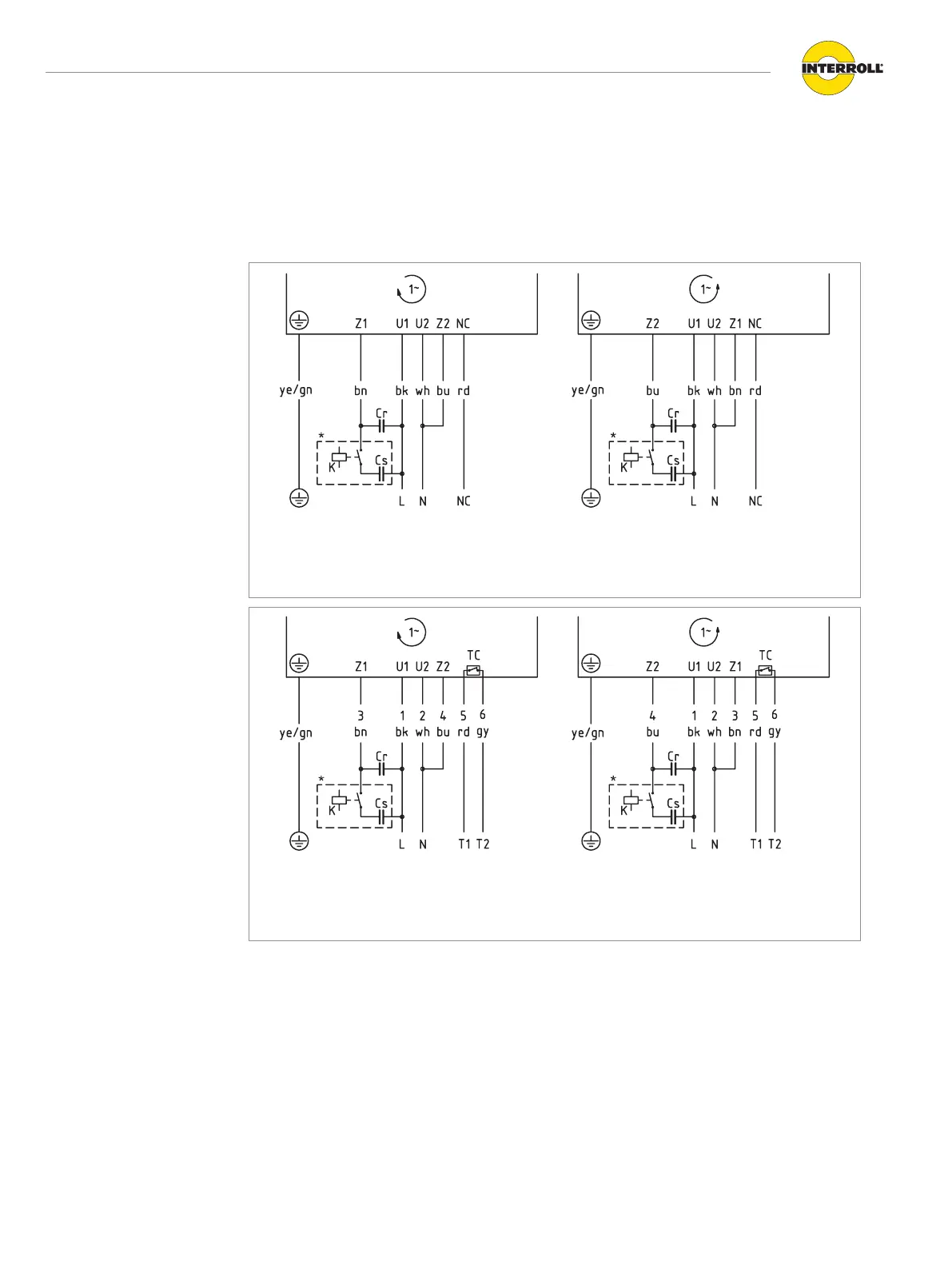

Connection diagrams for the S-series
This instruction manual lists only standard connection diagrams. For other connection types,
the connection diagram is supplied separately with the drum motor.
Abbreviations See "
List of abbreviations", page 108
E12 E12
1-phase, 6-core cable
* A starting capacitor and a matching switching relay can be connected as an option to
improve the starting torque of the single-phase motor.
E10E10
1-phase, 7-core cable
* A starting capacitor and a matching switching relay can be connected as an option to
improve the starting torque of the single-phase motor.
Cable connections
