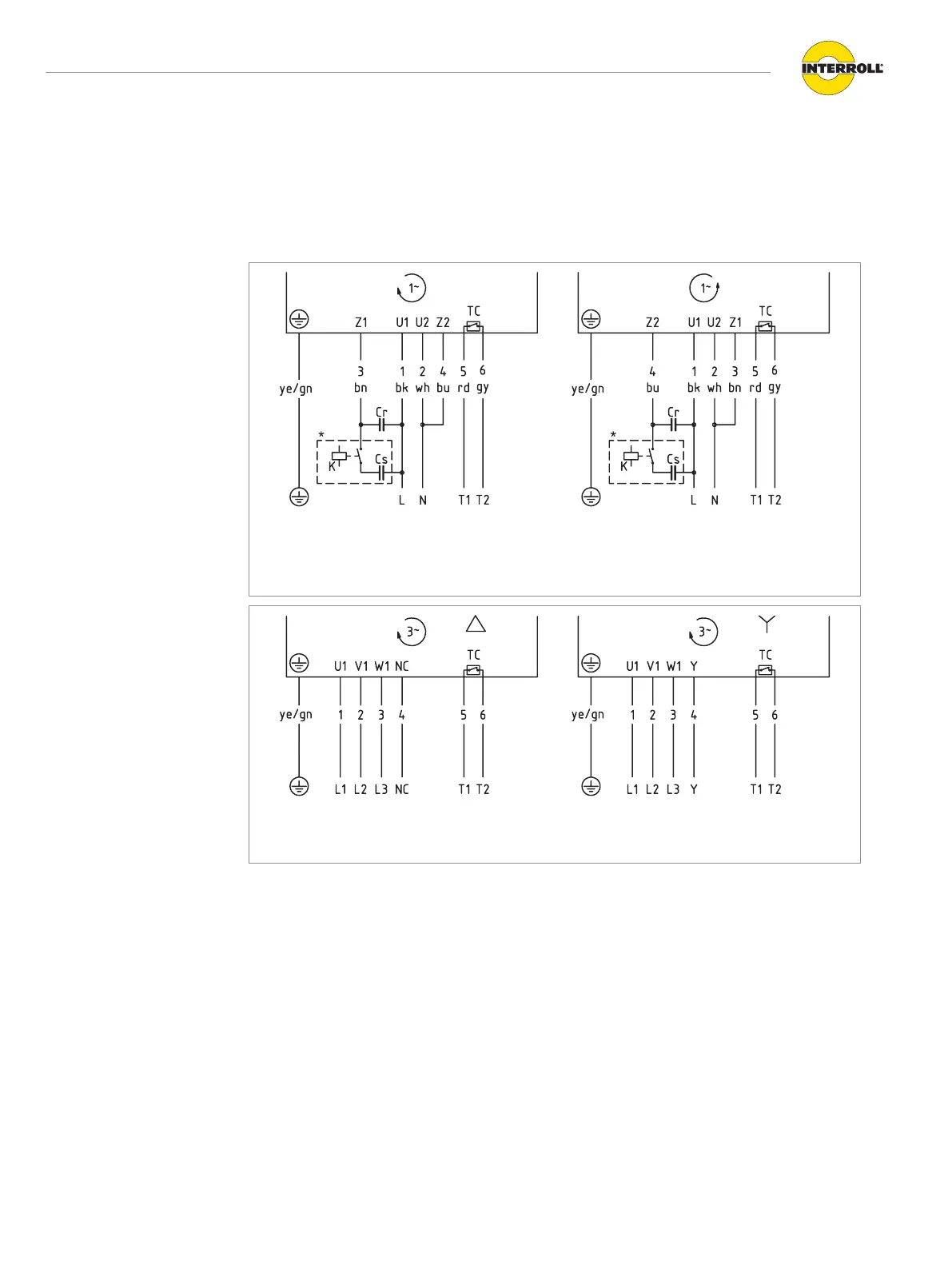

Connection diagrams for the S/A-series
This instruction manual lists only standard connection diagrams. For other connection types,
the connection diagram is supplied separately with the drum motor.
Abbreviations See "
List of abbreviations", page 108
1-phase, 7-core cable
* A starting capacitor and a matching switching relay can be connected as an option to
improve the starting torque of the single-phase motor.
3-phase, 7-core cable, winding for 1 voltage, delta or star connection (internally connected)
Delta connection: Low voltage Star connection: High voltage
Cable connections
