Interroll RollerDrive EC100 User Manual

11
Version 3.0 (04/2013) en
Translation of the original instructions
RollerDrive EC100 / EC110
Product information
DriveControls for the RollerDrive EC1xx
Interroll recommends using the RollerDrive EC1xx in combination with the
corresponding Interroll DriveControl.

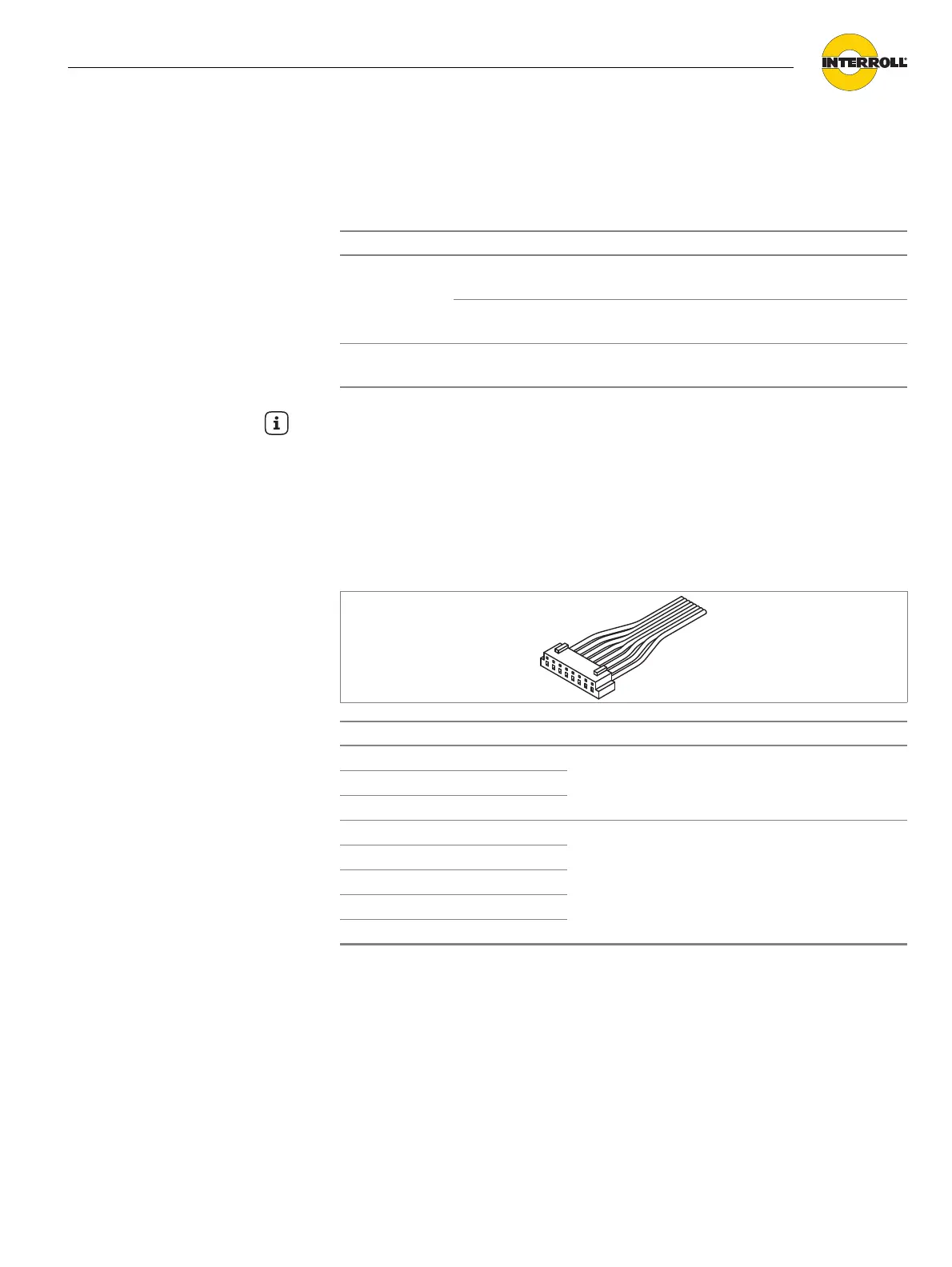

Motor plug
The motor plug for RollerDrive EC1xx is manufactured by AMP, consisting of a
plug (AMP-part # 175778-8) and terminal pins (AMP-part # 1-175102-1). In case
of ripped out cables the plug can be repaired using a crimping tool available
directly from AMP (part # 9184381).
Motor lead wire color code
RollerDrive Corresponding DriveControl Description
EC100 DC-EC100 Motor control card without
ZPA functionality
HC-EC100 ZPA and motor control on one
board, can be used separately
EC110 HC-EC110 ZPA and motor control on one
board, can be used separately
Hint
For DriveControl details, see the corresponding operation manual, catalogs or
publication at www.interroll.com.
Color Lead Description
Black Phase C Motor leads with AWG 22 (0.32 mm
2
)
White Phase B
Red Phase A
Yellow S3 (C) Hall effects sensor leads with
• AWG 26 (0.13 mm
2
) for EC100
• AWG 22 (0.32 mm
2
) for EC110
Orange S2 (B)
Brown S1 (A)
Blue 4.5 to 20 VDC
Green Ground
