22
Version 3.0 (04/2013) en
Translation of the original instructions
RollerDrive EC100 / EC110
Assembly
Anti-spin bracket
The following torque lock must be employed when using the unthreaded
hexagonal shaft on the motor side.

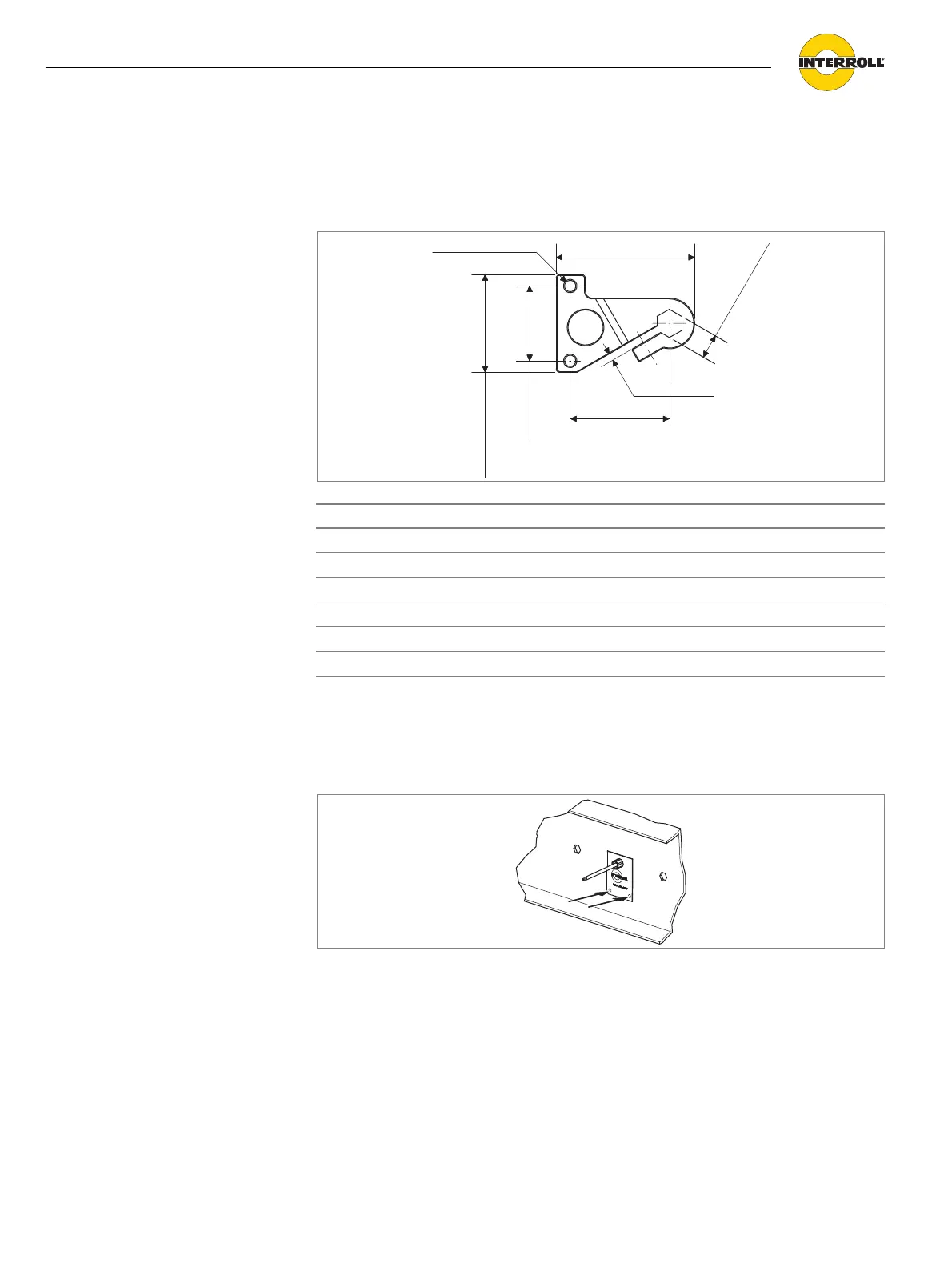

Dimensions of the anti-spin
bracket (flat up version)
Bill of material of the anti-spin
bracket
Mounting the anti-spin
bracket
Ensure that the power of the motor control board is switched off and that it
cannot be switched on accidentally.
If connected, disconnect the motor leads from the motor control board.
Slide the template over the motor leads and onto the hex shaft.
Use the template to mark the center of the mounting holes.
Remove the template from the hex shaft and the motor leads.
Drill two ø 7 mm (0.275 in) mounting holes at the marked spots and remove
burrs from the rear side of the holes.
Slide the anti-spin bracket with the flat side facing the conveyor frame over
the motor leads and onto the hex shaft.
Put two serrated flange hex cap screws in the bottom holes of the anti-spin
bracket and tighten them with the hex tooth washer nuts.
11.2 mm (0.44 in)
ø 7 mm (0.275 in)
3.3 mm (0.13 in)
62.8 mm (2.47 in)
44.5 mm (1.75 in)
34 mm (1.34 in)
45 mm (1.77 in)
No. Description Quantity
1 Anti-spin bracket 1
2 Template 1
3 1/8" Allen key 1
4 Button head screw 1
5 Serrated flange hex cap screw 2
6 Hex tooth washer nut 2
