Interroll RollerDrive EC100 User Manual

14
Version 3.0 (04/2013) en
Translation of the original instructions

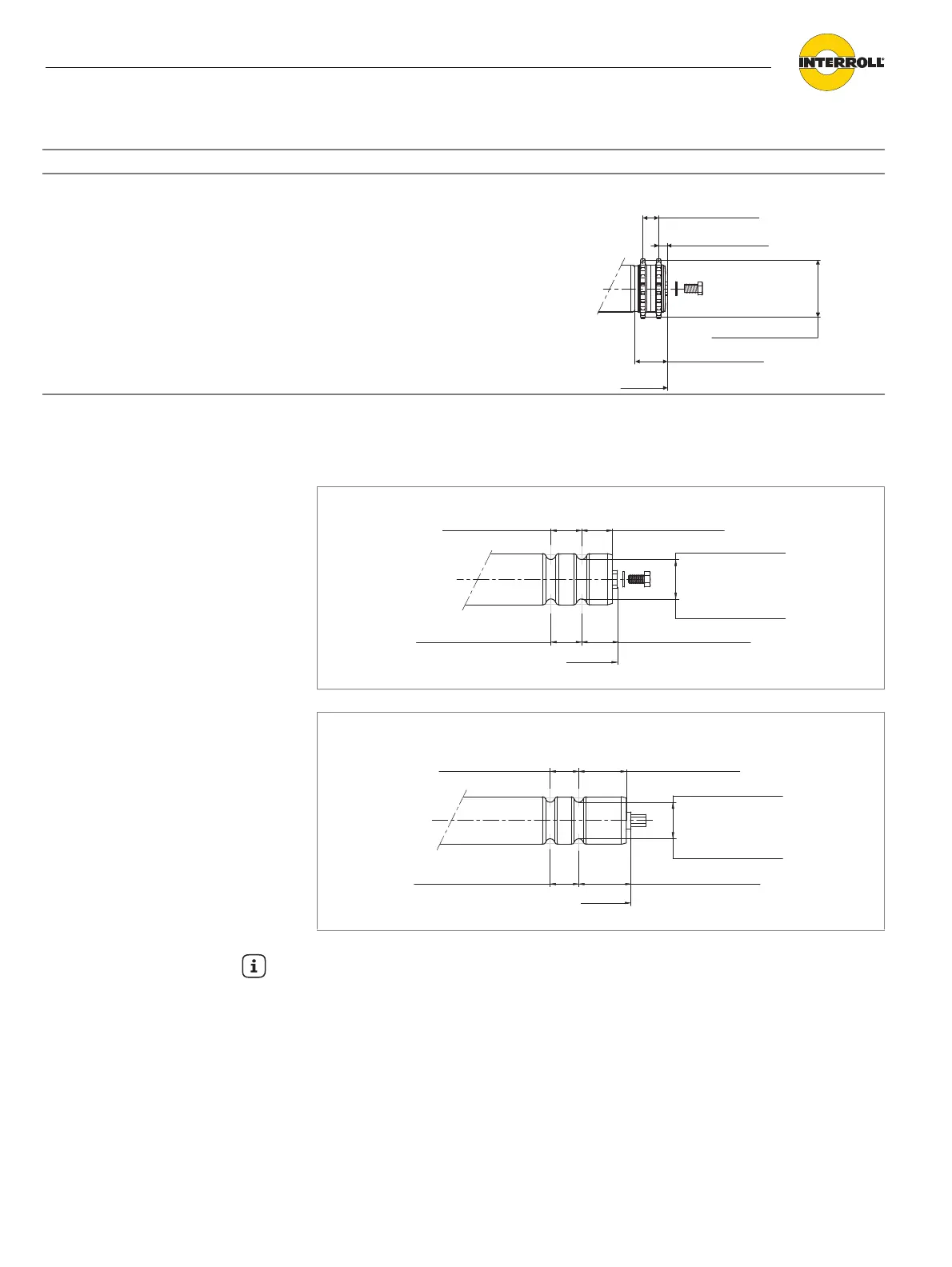

RollerDrive EC100 / EC110
Product information
BF/EL = Between Frames / Installation Length
Round belt groove locations
Female thread IGM8, single
bearing
Spring-loaded hex,
double bearing
Conical RollerDrives
For conical RollerDrives there must be an 1.8° angle compensation on the motor
end to avoid bending forces on the RollerDrive.
Sprocket head 11 mm (0.44 in) hex shaft; 3/8 in pitch; 20 teeth
11 mm (0.44 in) hex, Spring-loaded shaft Female threaded M8 (FTM8),
9.5 mm (0.37 in)
16.8 mm (0.66 in)
35 mm (1.38 in)
%)(/
ø60.9 mm (2.4 in)
min. 30 mm (1.2 in)
min. 30 mm (1.2 in)
for tube diameter 50 mm
for tube diameter 1.9 in
min. 31.75 mm (1.25 in) min. 31.75 mm (1.25 in)
ø38.5 mm (1.52 in)
ø38.1 mm (1.5 in)
%)(/
min. 30 mm (1.2 in)
for tube diameter 50 mm
for tube diameter 1.9 in
min. 31.75 mm (1.25 in)
min. 50 mm (1.9 in)
min. 54.6 mm (2.15 in)
←
ø38.5 mm (1.52 in)
ø38.1 mm (1.5 in)
%)(/
Hint
Other tube groove locations are possible.
