19
Version 3.0 (04/2013) en
Translation of the original instructions
RollerDrive EC100 / EC110
Assembly

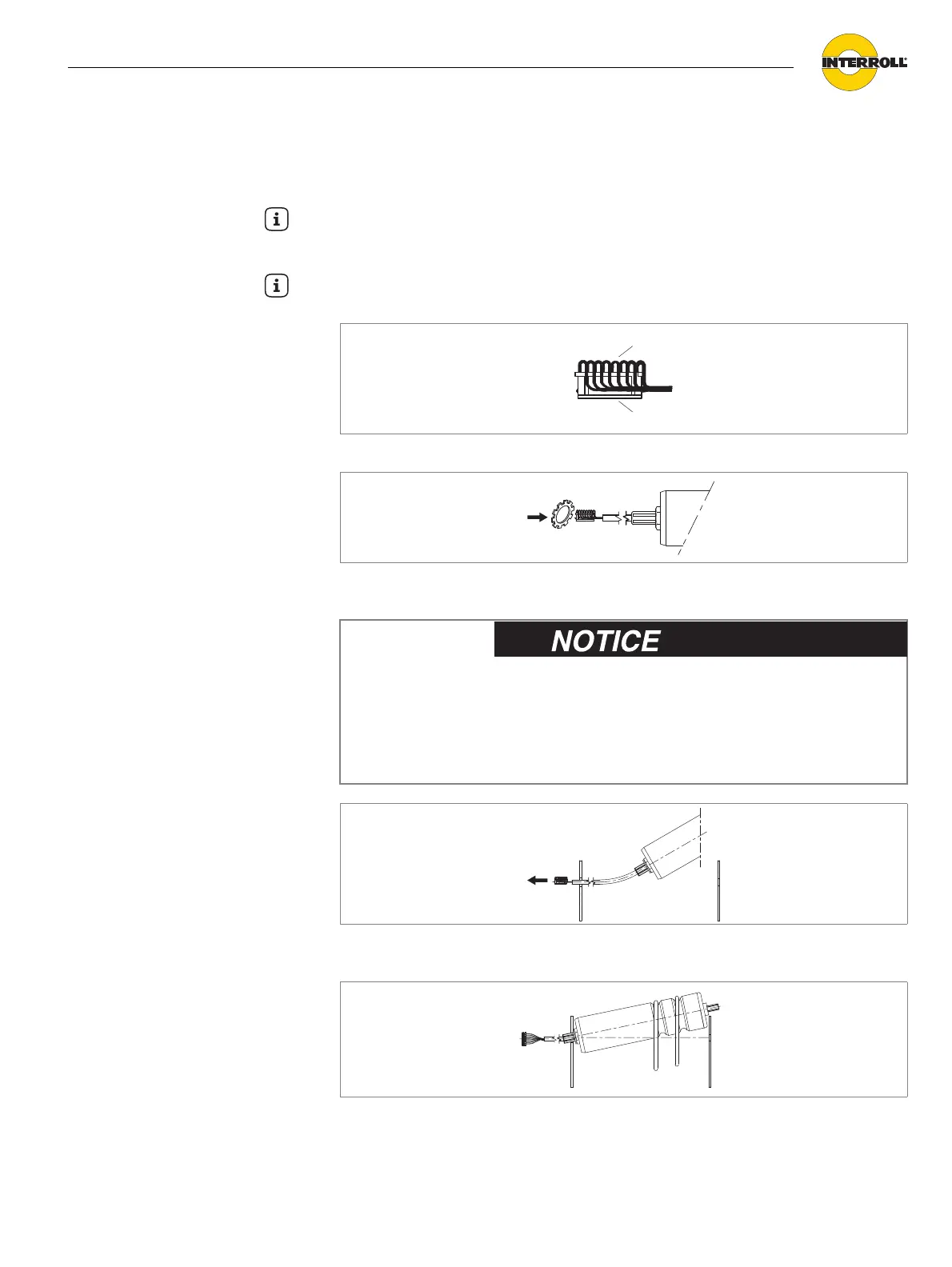

RollerDrive installation
Inserting the motor shaft Remove the shipping tube from the RollerDrive.
Place the first star washer on the motor shaft.
Pass the motor cable through the 11 mm (0.44 in) hex hole in the conveyor
frame and insert the motor shaft into the hex hole.
Fit one or two round belts, size 4 mm, max. 5 mm (3/16 in) or RollerDrive belts
(if used) on the non-driven end of the RollerDrive.
Hint
Use caution when cutting the tie-wrap from the harness. Do not cut any of the
sleeving or cables on the unit.
Hint
To pass the motor plug through holes, fold the motor cable as follows.
Internal damage of the RollerDrive due to improper
handling
Do not install the securing hardware at this time.
Do not bend the motor cable at the motor shaft. Leave a
minimum of 12 mm (0.5 in) of excess cable for stress
relief.
Motor cable
Motor plug
