Interroll RollerDrive EC100 User Manual

23
Version 3.0 (04/2013) en
Translation of the original instructions
RollerDrive EC100 / EC110
Assembly

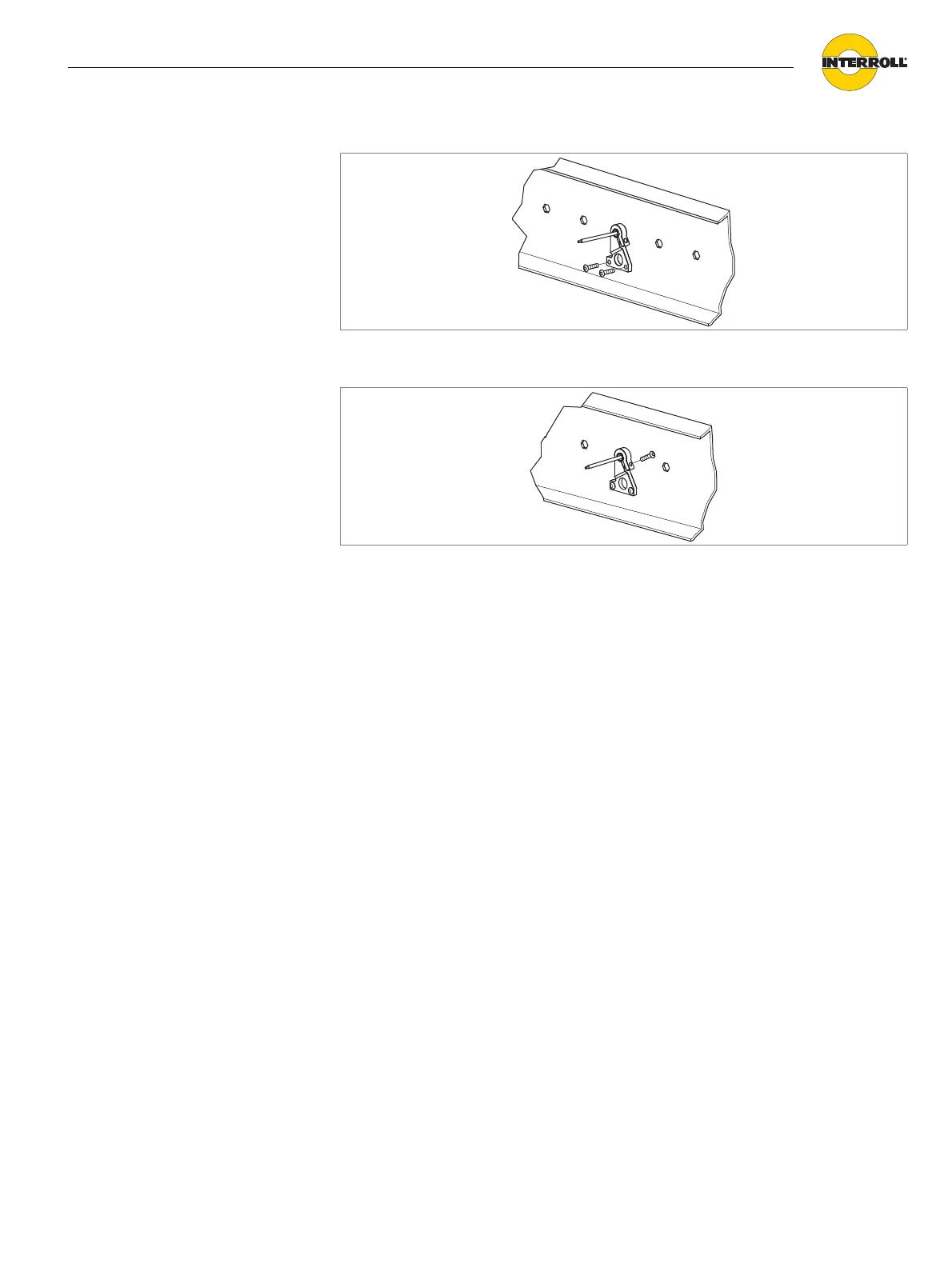

 Install the button head screw in the upper hole of the anti-spin bracket to
secure the shaft to the anti-spin bracket.
Electrical installation
 If you use the recommended DriveControl (see "DriveControls for the
RollerDrive EC1xx", page 11), connect the motor plug to the DriveControl.
 If you do not use the DriveControl, connect your control to the pins of the
motor plug (for the pin definition see "Motor plug", page 11)
