Version 3.0 (04/2013) en
Translation of the original instructions
RollerDrive EC100 / EC110
Product information
Failsafe brake for RollerDrive EC100
Optionally, the RollerDrive EC100 is also available with a failsafe brake (then
called EC100B), which is designed to hold the RollerDrive in position in case of a
power shut down, mainly at declines. The brake shall be used as holding brake
only and not as a dynamic brake (e.g. not for deceleration or positioning).
Recommended break leads connection:
• Green lead with red stripes: 24 VDC
• Green lead with blue stripes: GND
The fail save brake is not sensitive to electrical polarity, so it can be connected bi
polar; for clearness it is recommended to connect them as stated above.

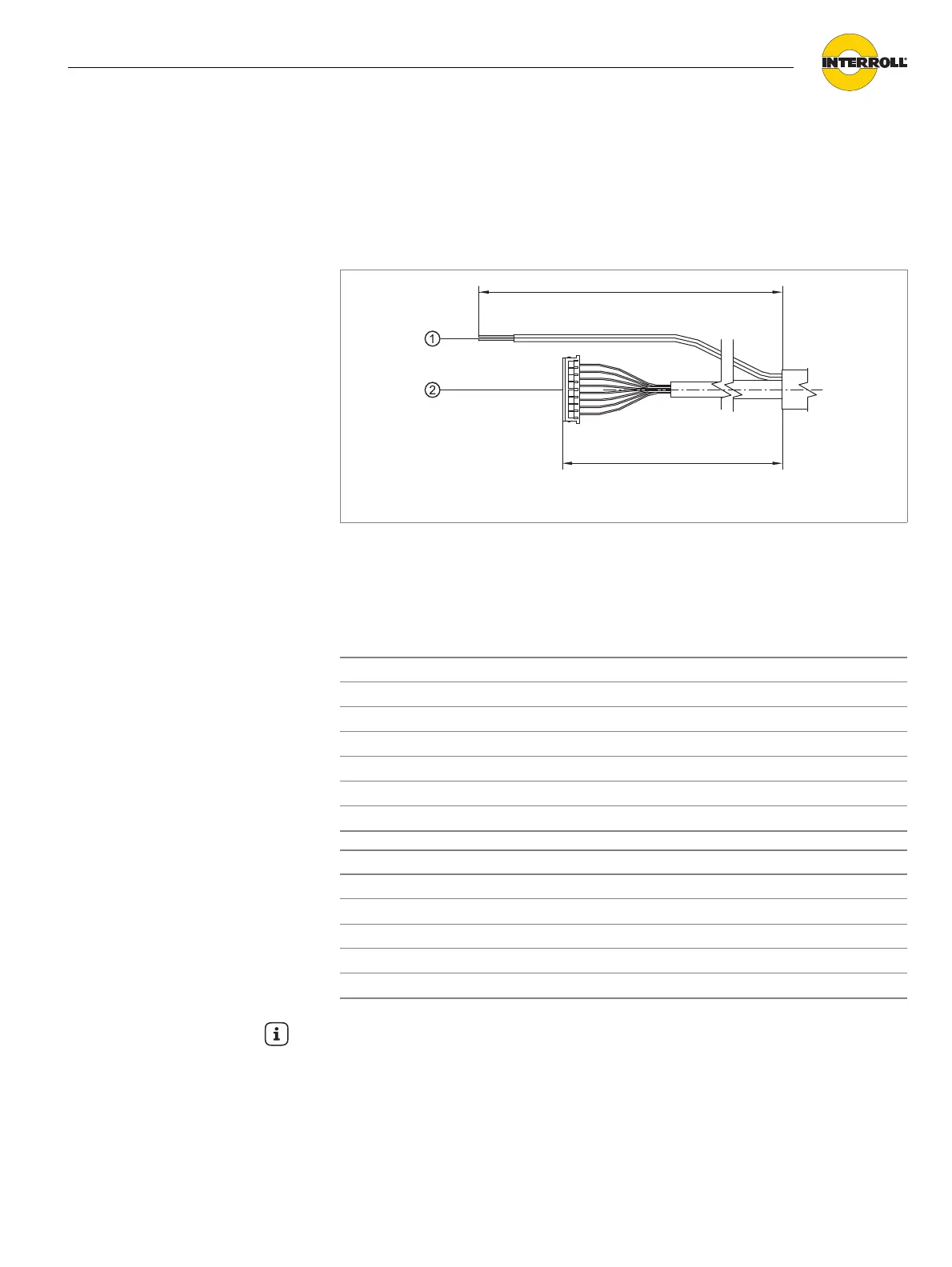

Technical data
1 Brake leads
2 Motor plug
PPLQ
PPLQ
Nominal voltage 24 VDC
Voltage range 0 to 28 VDC
Brake locking voltage max. 6.0 VDC
Brake releasing voltage min. 12.2 VDC
Current consumption 0.167 A
Internal resistance 144 Ω
Lead wires AWG 22 Teflon
Gear ratio Static holding torque
24:1 8.4 Nm (74.3 in-lbf)
36:1 12.6 Nm (111.5 in-lbf)
48:1 16.8 Nm (148.7 in-lbf)
64:1 22.4 Nm (198.2 in-lbf)
96:1 33.6 Nm (297.4 in-lbf)
Hint
The RollerDrive EC100 (12:1) and RollerDrive EC100 (16:1) are not available
with failsafe brake.
