RollerDrive EC100 / EC110
Product information

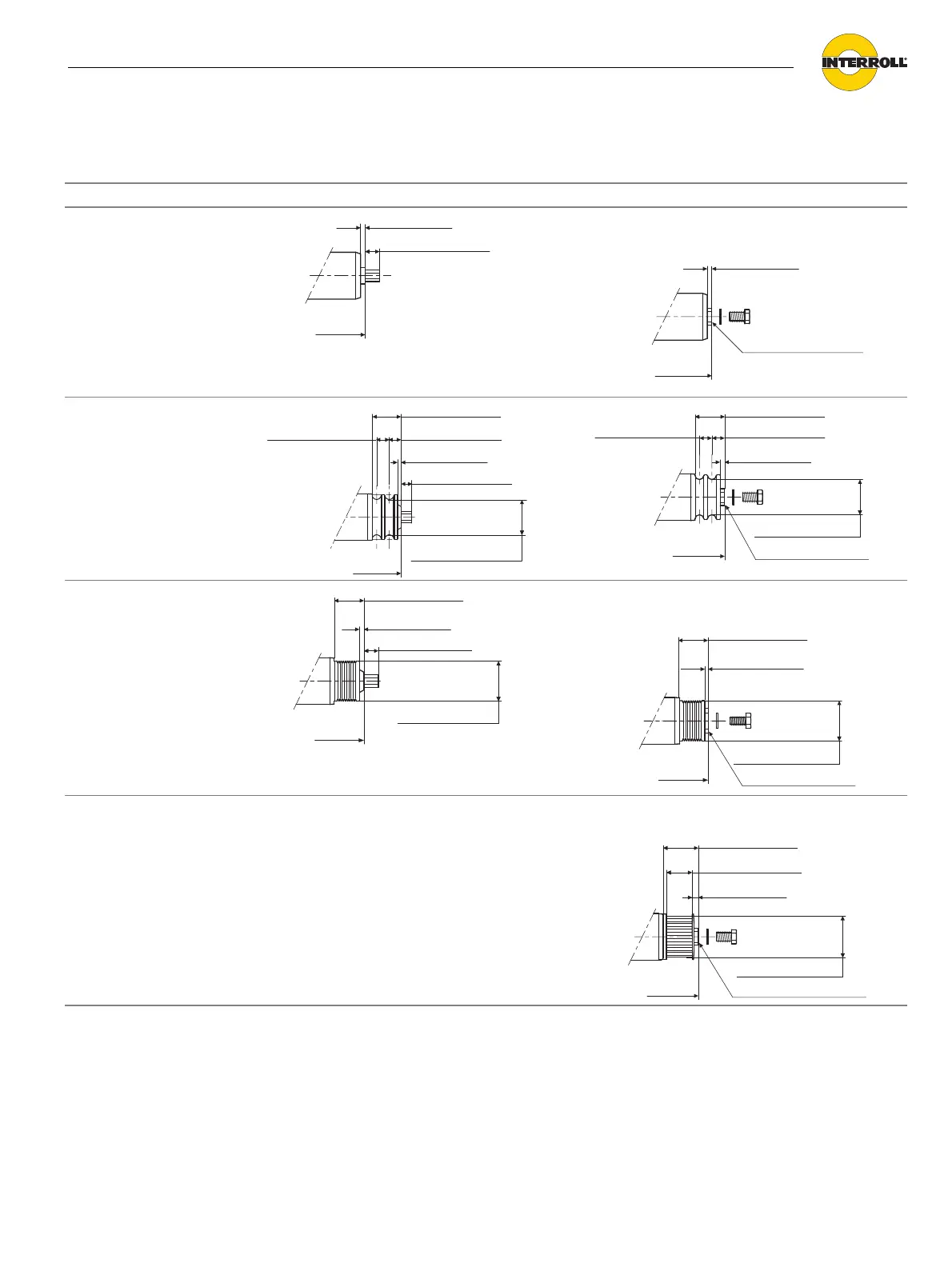

Dimensions of bearing seats on the non-driven side
11 mm (0.44 in) hex, Spring-loaded shaft Female threaded M8 (FTM8),
Straight
Round belt head
PolyVee head
Toothed belt head Poly-Chain GT; 8 mm pitch; 18 teeth
%)(/
5 mm (0.2 in)
15.5 mm (0.61 in)
%)(/
5 mm (0.2 in)
AF 13 mm (0.51 in)
31 mm (1.22 in)
ø37.8 mm (1.49 in)
%)(/
4 mm (0.16 in)
11 mm (0.44 in)
←
13.5 mm (0.53 in) 13 mm (0.51 in)
31 mm (1.22 in)
%)(/
4 mm (0.16 in)
13.5 mm (0.53 in)
13 mm (0.51 in)
AF 19 mm (0.75 in)
ø37.8 mm (1.49 in)
4 mm (0.16 in)
31 mm (1.22 in)
%)(/
11 mm (0.44 in)
ø43 mm (1.7 in)
4 mm (0.16 in)
31 mm (1.22 in)
%)(/
ø43 mm (1.7 in)
AF 19 mm (0.75 in)
35 mm (1.38 in)
%)(/
27.5 mm (1.08 in)
4 mm (0.16 in)
ø45.8 mm (1.8 in)
AF 11 mm (0.44 in) hex
