RollerDrive EC100 / EC110
Product information

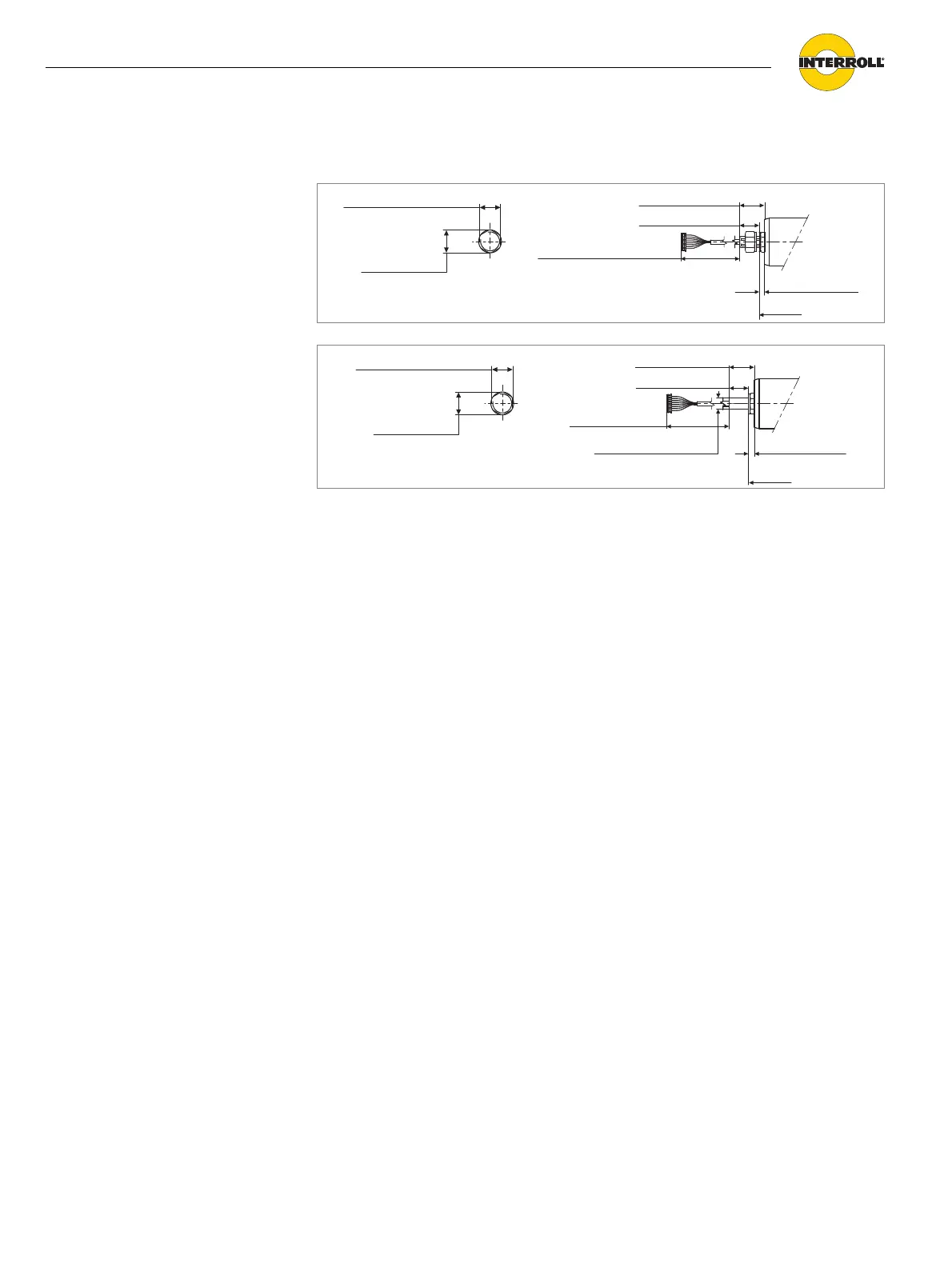

Dimensions of motor shaft
Standard configuration
EC110 solid hex configuration
20 mm (0.79 in)
26 mm (1.02 in)
%)(/
6 mm (0.24 in)
EC100: 840 mm (33 in)
EC110: 1070 mm (42 in)
AF 11 mm (0.44 in) hex
M12 x 1.5 mm
25 mm (0.98 in)
19 mm (0.75 in)
%)(/
6 mm (0.24 in)
11 mm (0.43 in) hex
840 mm (33 in)
AF 11 mm (0.44 in) hex
M12 x 1.5 mm
