3.9. Guidelines for Mounting (IP66 Units)
Before mounting the drive, ensure that the chosen location meets the environmental condition requirements for the drive shown in
section 10.1. Environmental.
The drive must be mounted vertically, on a suitable flat surface.

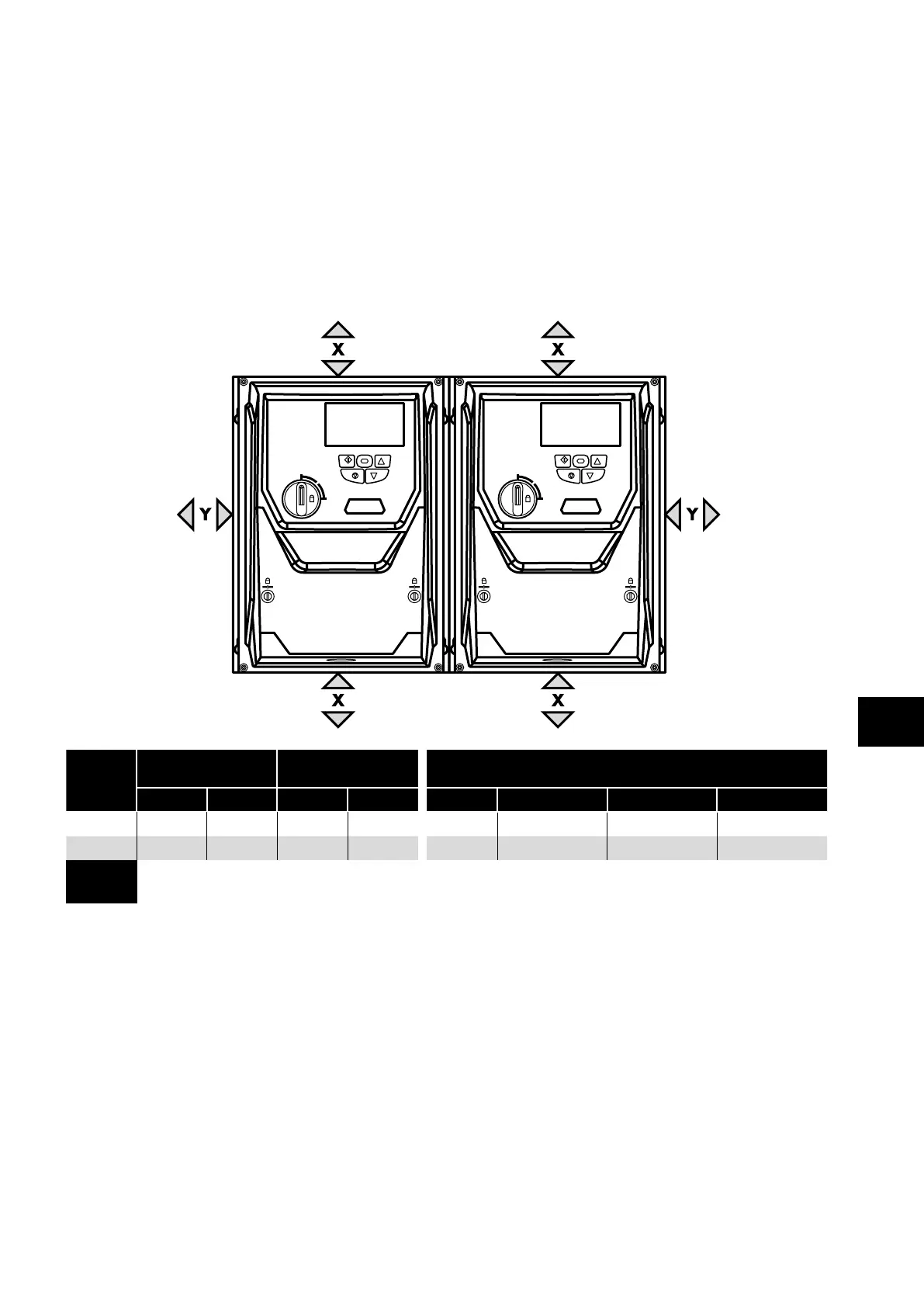

The minimum mounting clearances as shown in the table below must be observed.
The mounting site and chosen mountings should be sufficient to support the weight of the drives.
Using the drive as a template, or the dimensions shown below, mark the locations required for drilling.
Suitable cable glands to maintain the ingress protection of the drive are required. Gland holes for power and motor cables are
pre-moulded into the drive enclosure, recommended gland sizes are shown above. Gland holes for control cables may be cut as
required.
ON
OFF
PWR
ON
OFF
PWR
Drive
Size
X
Above & Below
Y
Either Side
Cable Gland Sizes
mm in mm in Frame Power Cable Motor Cable Control Cables
2 200 7. 8 7 10 0.39 2 M25 (PG21) M25 (PG21) M20 (PG13.5)
3 200 7. 8 7 10 0.39 3 M25 (PG21) M25 (PG21) M20 (PG13.5)
NOTE
Typical drive heat losses are approximately 3% of operating load conditions.
Above are guidelines only and the operating ambient temperature of the drive MUST be maintained at all times.
