12 | Optidrive P2 User Guide | Version 3.00 www.invertekdrives.com
3
Mechanical Installation

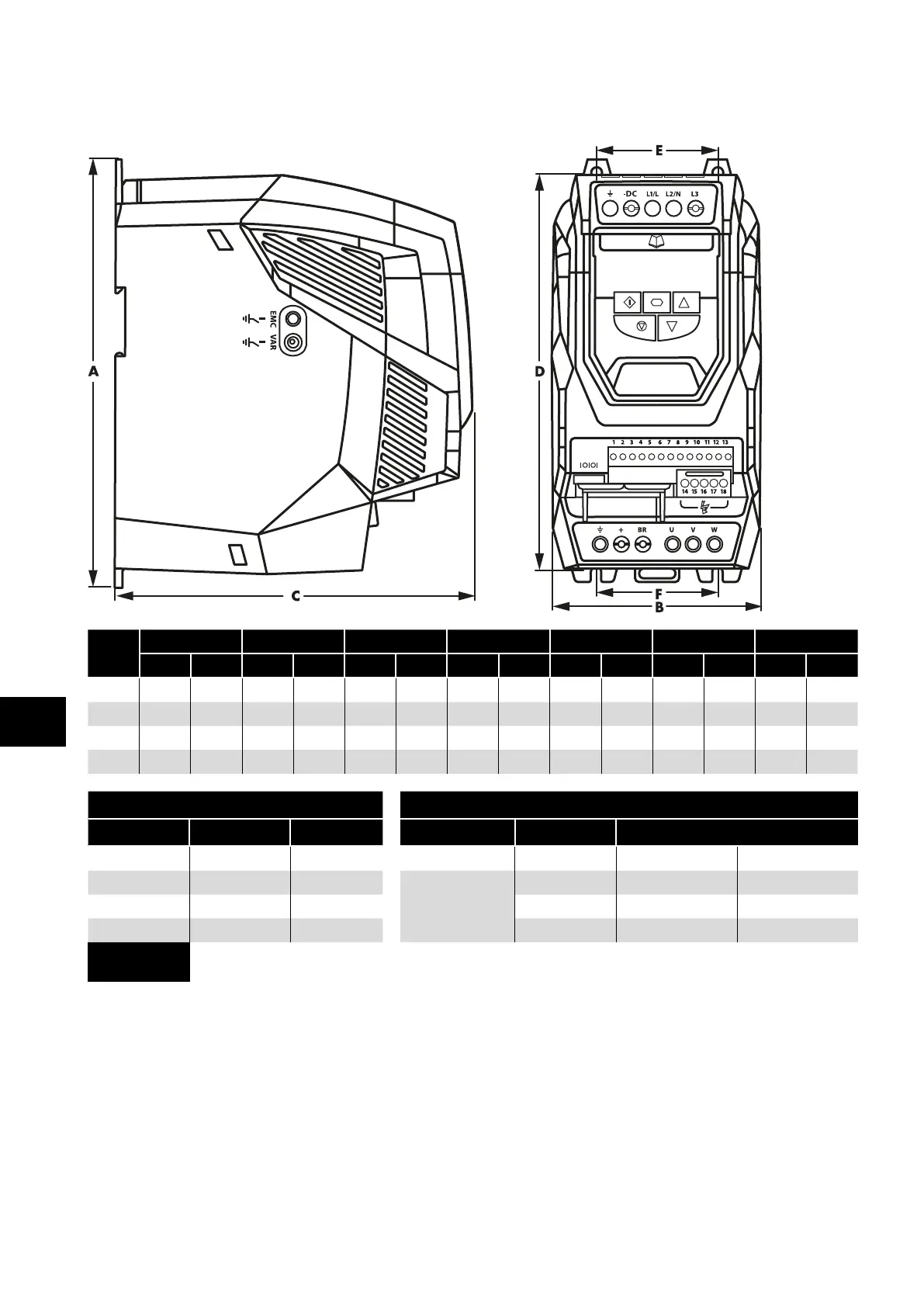

3.5. Mechanical Dimensions and Weight
3.5.1. IP20 Units
Drive
Size
A B C D E F Weight
mm in mm in mm in mm in mm in mm in Kg Ib
2 221 8.70 11 0 4.33 185 7.28 209 8.23 63 2.48 63 2.48 1.8 4.0
3 2 61 10.28 131 5.16 205 8.07 247 9.72 80 3.15 80 3 .15 3.5 7. 7
4 418 16.46 160 6.30 240 9.45 400 15 . 75 125 4.92 125 4.92 9.2 20.3
5 486 19.13 222 8 . 74 260 10.24 460 18.11 175 6.89 175 6.89 18 .1 39.9
Mounting Bolts Tightening Torques
Frame Size Metric UNF Frame Size Required Torque
2 M4 #8 Control Terminals All 0.5 Nm 4.5 lb-in
3 M4 #8
Power Terminals
2 & 3 1 Nm 9 lb-in
4 M8 5/16 4 2 Nm 18 lb-in
5 M8 5/16 5 4 Nm 35.5 lb-in
NOTE
*The IP20 Frame Size 4 Chassis can obstruct the rotation (tightening) of a bolt or screw with a hex head, a fixing with a round
head will be most suitable for the mounting of this unit.
