Version 3.00 | Optidrive P2 User Guide | 13www.invertekdrives.com
3

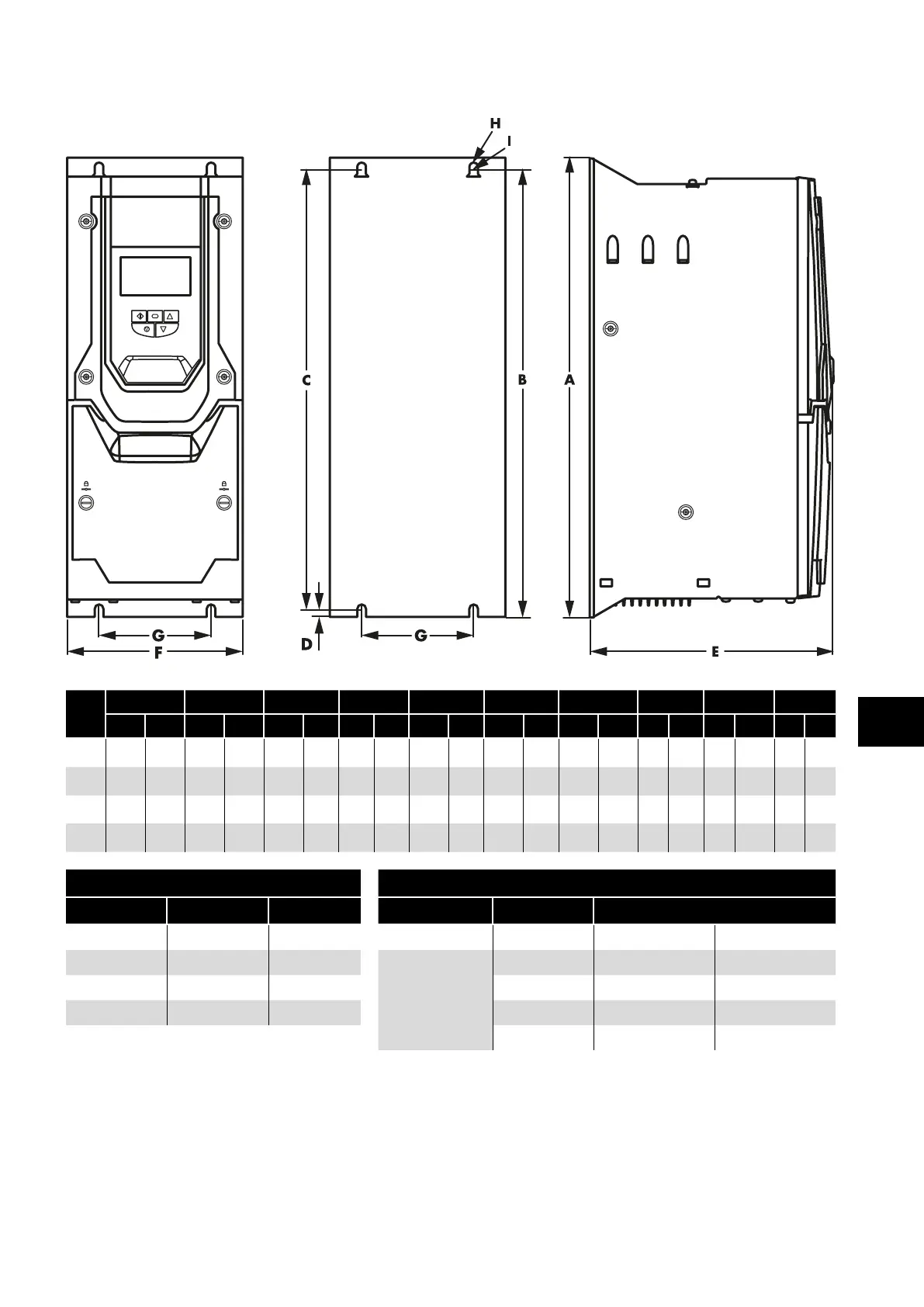

Mechanical Installation
3.5.2. IP55 Units
Drive
Size
A B C D E F G H I Weight
mm in mm in mm in mm in mm in mm in mm in mm in mm in kg Ib
4 450 17. 72 428 16.85 433 17.05 8 0.31 252 9.92 171 6. 73 110 4.33 4.25 0.17 7. 5 0.30 11 . 5 25.4
5 540 21.26 515 20.28 520
20.47
8 0.31 270 10.63 235 9.25 175 6.89 4.25 0 .17 7. 5 0.30 23 50.7
6 865 34.06 830 32.68 840 33.07 10 0.39 330 12.99 330 12.99 200 7. 87 5.5 0.22 11 0.43 55 121 . 2
7 1280 50.39 124 5 49.02 12 5 5 49.41 10 0.39 360 14 .17 330 12.99 200 7. 87 5.5 0.22 11 0.43 89
196.2
Mounting Bolts Tightening Torques
Frame Size Metric UNF Frame Size Required Torque
4 M8 #8
Control Terminals All 0.5 Nm 4.5 lb-in
5 M8 #8
Power Terminals
4 2 Nm 18 lb-in
6 M10 5/16
5 4 Nm 35.5 lb-in
7 M10 5/16
6 15 Nm 11 lb-ft
7 15 Nm 11 lb-ft
