Version 3.00 | Optidrive P2 User Guide | 19www.invertekdrives.com

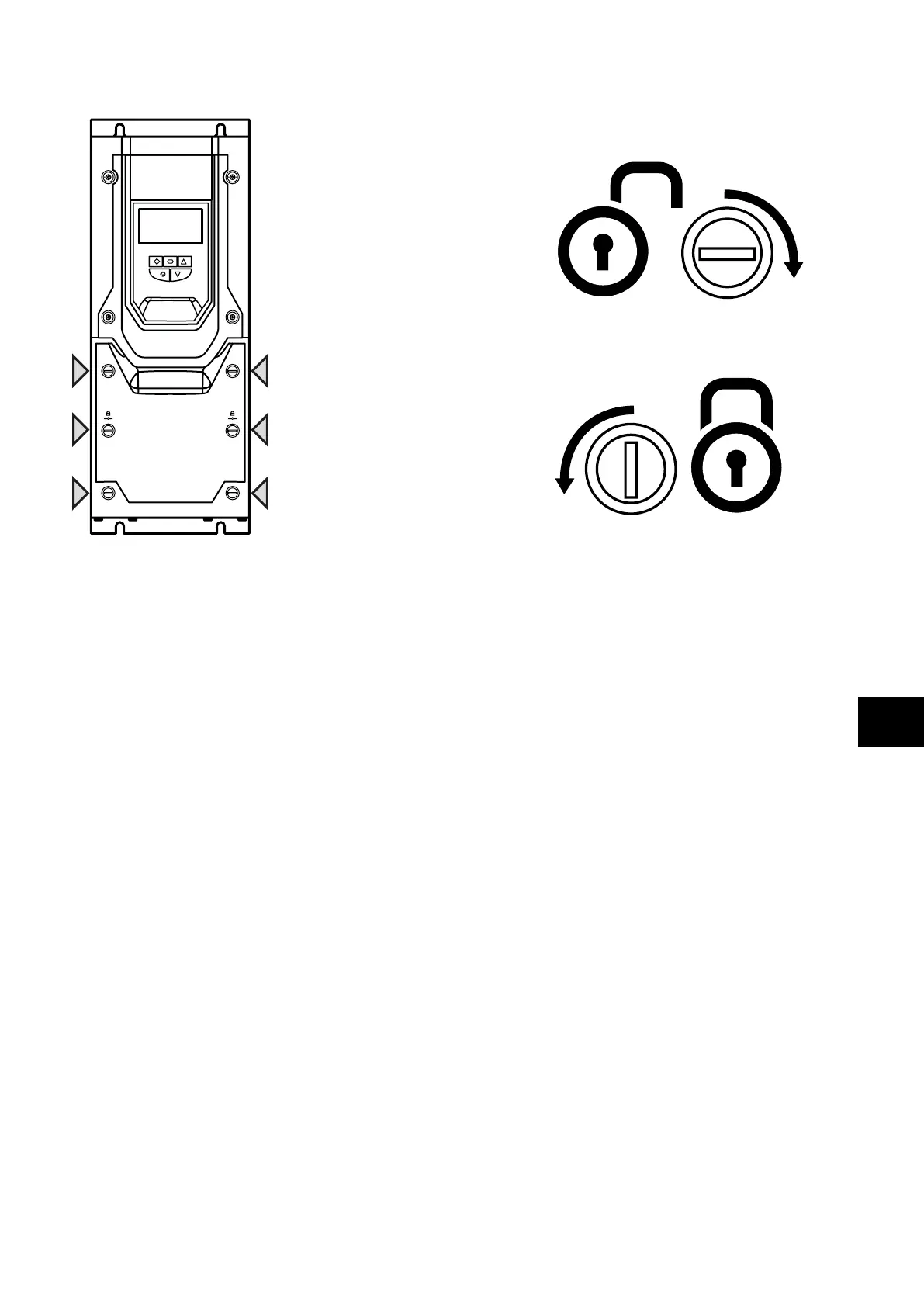

3.10.4. Frame Sizes 6 & 7
Using a suitable flat blade
screwdriver, rotate the six retaining
screws indicated until the screw slot
is vertical.
3.11. Routine Maintenance
The drive should be included within the scheduled maintenance program so that the installation maintains a suitable operating
environment, this should include:
Ambient temperature is at or below that set out in section 10.1. Environmental.
Heat sink fans freely rotating and dust free.
The Enclosure in which the drive is installed should be free from dust and condensation; furthermore ventilation fans and air filters
should be checked for correct air flow.
Checks should also be made on all electrical connections, ensuring screw terminals are correctly torqued; and that power cables
have no signs of heat damage.
3
Mechanical Installation
