CHV180 series frequency inverter special for elevator Appendix B
.124.

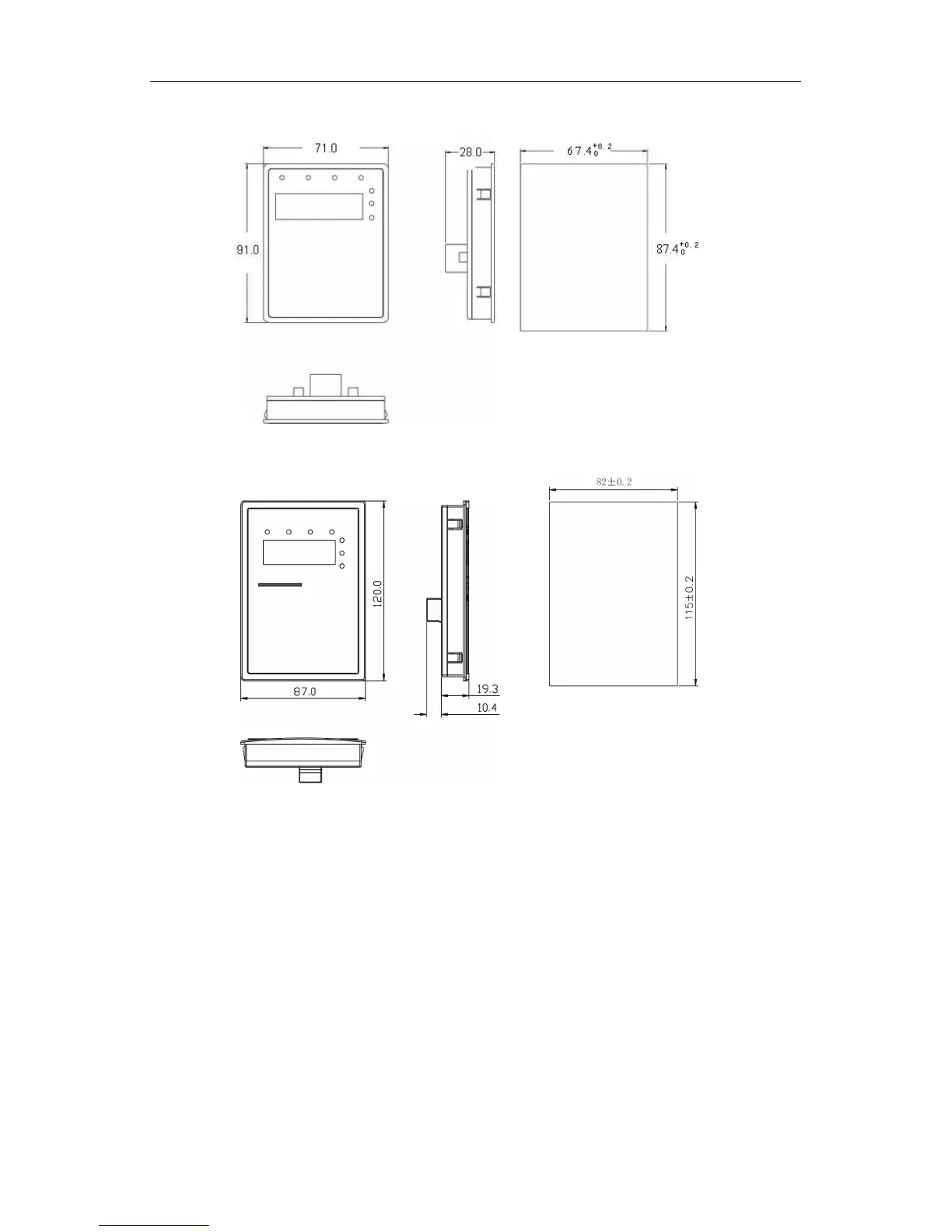

B.2 Dimensions of external keypad
FigureB.3 Dimension of small keypad.
Figure B.4 Dimension of big keypad.
