CHV180 series frequency inverter special for elevator Detailed function description
.73.
following diagram:

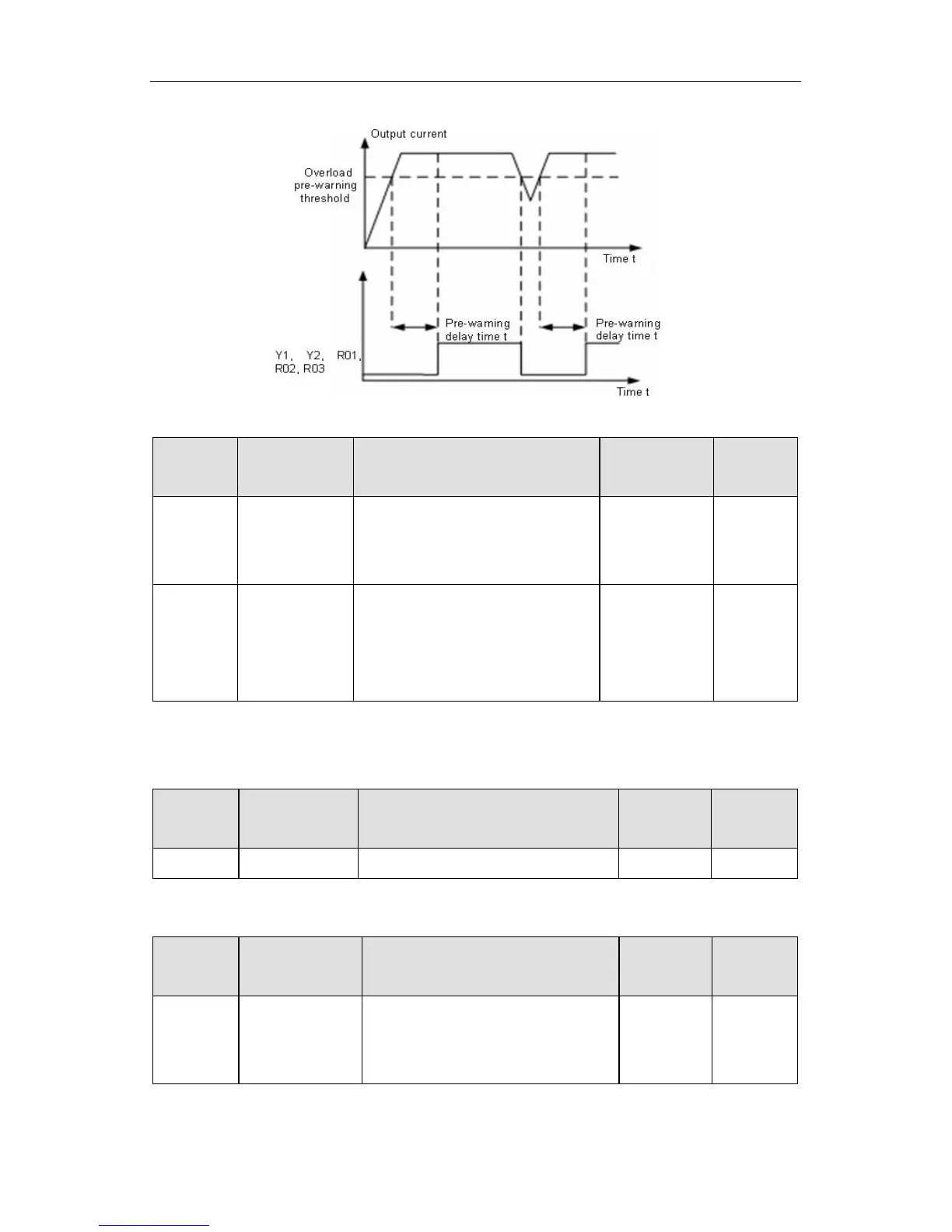

Figure 6.17 Overload pre-warning schematic diagram.
Function
Code
Name Description
Setting
Range
Factory
Setting
P9.07
Threshold of
over speed
deviation
0.0%~50% 0.0~50 20.0%
P9.08
Detection
time of over
speed
deviation
0.000~10.000s 0.000~10.000
0.5000
The parameter defines the protection point of over speed deviation, and is main for
prevent runaway of motor whose corresponding fault code is dEV. The speed
threshold fault detection is not carried out when detection time is set to be 0.
Function
Code
Name Description
Setting
Range
Factory
Setting
P9.08 Reserved 0~65536 0 Reserved
6.11 PA Group --Serial communication
Function
Code
Name Description
Setting
Range
Factory
Setting
PA.00
Local
communication
address
0~247 0~247 1
When the master is writing the frame, if the communication address of the slave is set
