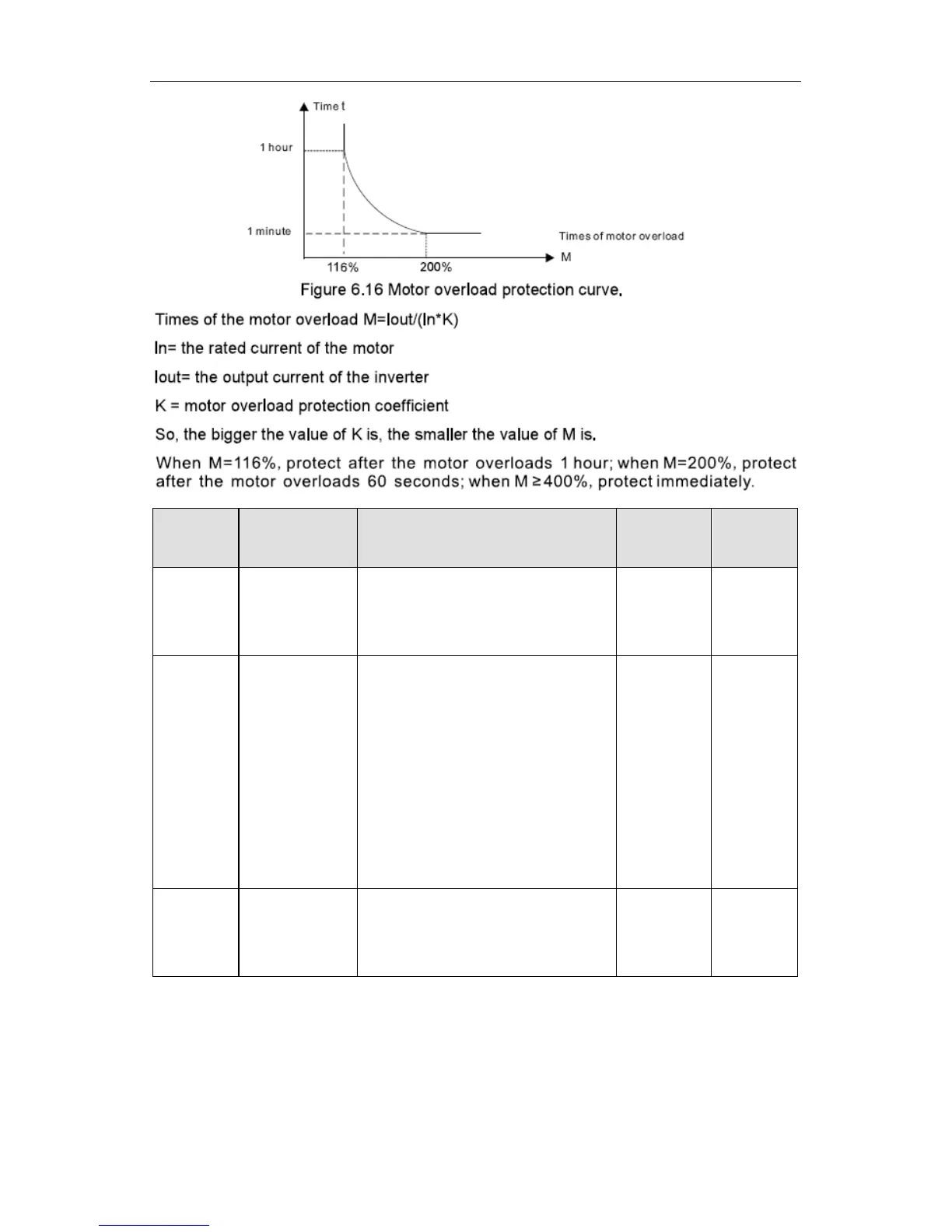

CHV180 series frequency inverter special for elevator Detailed function description
.72.
Function
Code
Name Description
Setting
Range
Factory
Setting
P9.04
Overload
pre-warning
threshold
20.0%~150.0% 20.0~150.0
130.0%
P9.05
Overload
pre-warning
selection
0: Always detect relative to
motor rated current
1: Detect while constant speed
relative to motor rated current
2: Always detect relative to
inverter rated current
3: Detect while constant speed
relative to inverter rated current
0~3 0
P9.06
Overload
pre-warning
delay time
0.0~30.0s 0.0~30.0
5.0s
The value of P9.05 determines the pre-warning category, such as motor overload (OL1)
or inverter overload (OL2).
P9.04 determines the current threshold of pre-warning actionn, it is a percentage of the
rated current. When output current of inverter exceeds the value of P9.04 and last the
duration determined by Pb.06, inverter will output a pre-warning signal. Please refer to
