CHV180 series frequency inverter special for elevator Wiring
.14.
R S T
P1
(+)
(-)
U V W
POWER MOTOR

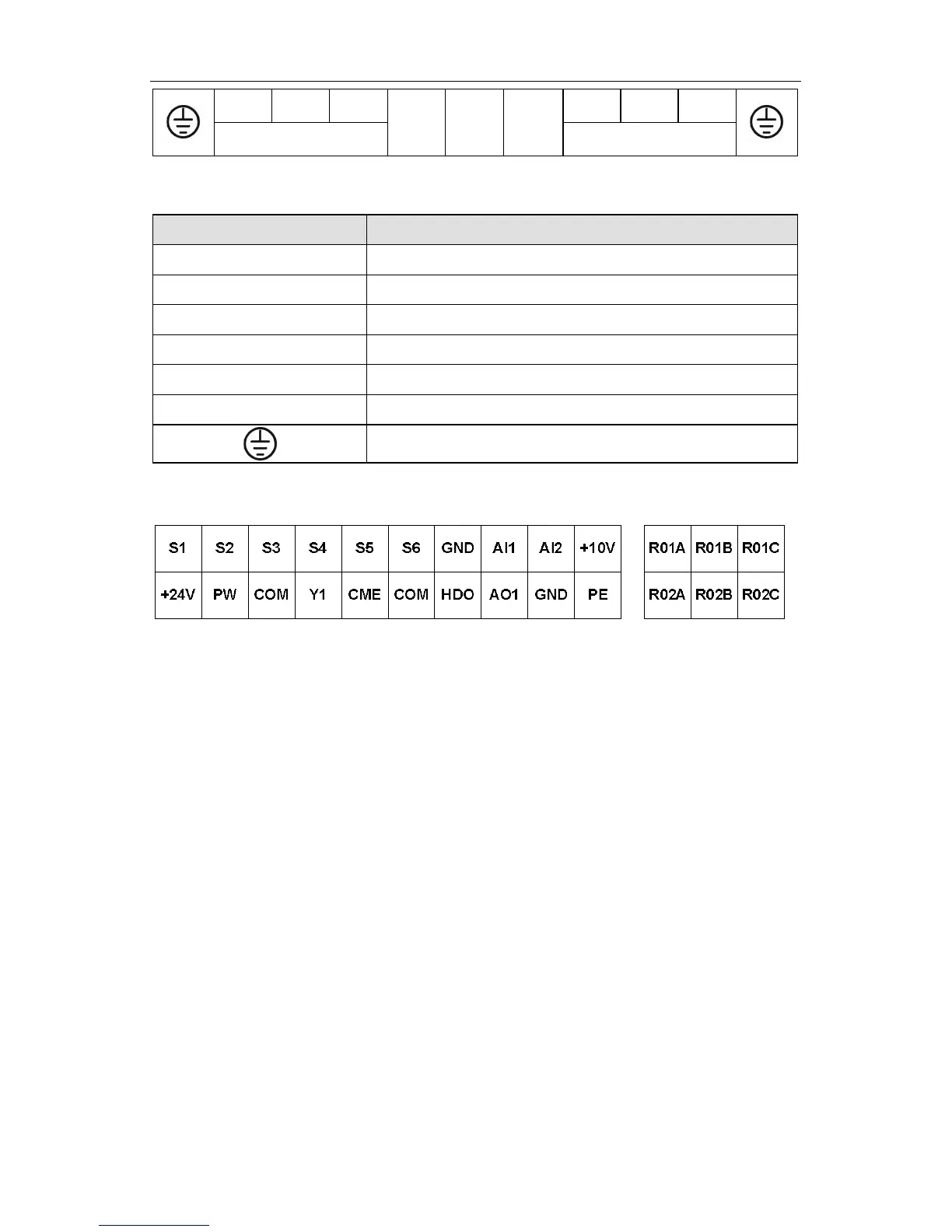

Figure 4.4 Main circuit terminals (18.5~30kW).
Functions instruction:
Terminal Description
R, S and T Terminals of 3 phase AC input
(+) and (-) Spare terminals of external braking unit
(+) and PB Spare terminals of external braking resistor
P1 and (+) Spare terminals of external DC reactor
(-) Terminal of negative DC bus
U, V and W Terminals of 3 phase AC output
Terminal of ground
4.2.2 Control circuit terminals
Figure 4.5 Control circuit terminals.
