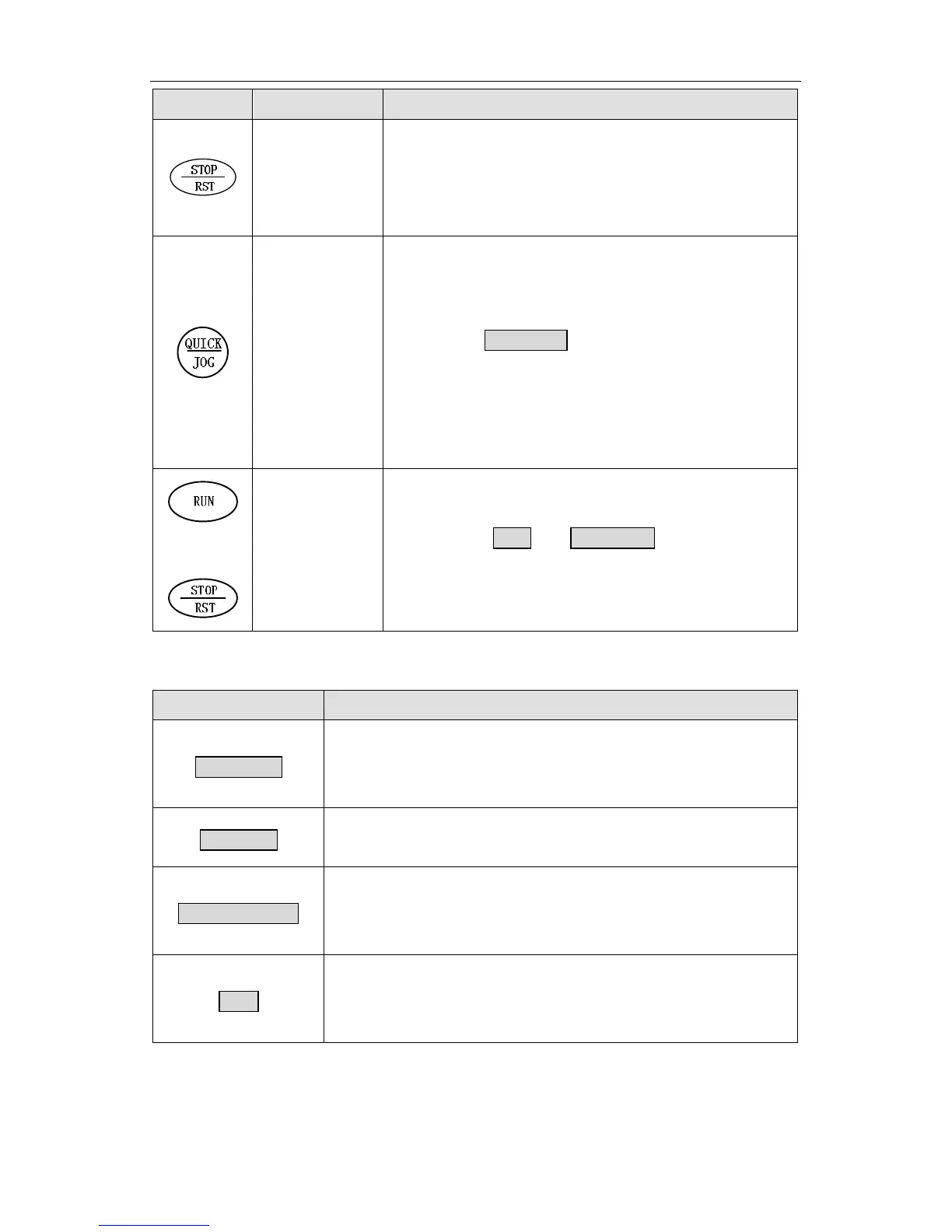

STOP/RESET
Key
In running state, restricted by P7.04, can be used to
stop the inverter.
When fault alarm, can be used to reset the inverter
without any restriction.
Shortcut Key
Determined by Function Code P7.03:
0: Jog operation
1: Switch between forward and reverse
2: Clear the UP/DOWN settings.
3: Quick debugging mode1 (by menu)
4: Quick debugging mode2 (byT T latest order)
5: Quick debugging mode3 (by non-factory setting
parameters)
Combination
Key
Pressing the RUN and STOP/RST at the same time
can achieve inverter coast to stop.
5.1.3 Indicator light description
5.1.3.1 Function indicator light description
Function indicator Description
RUN/TUNE
Extinguished: stop state
Flickering: parameter autotuning state
Light on: operating state
FWD/REV
Extinguished: forward operation
Light on: reverse operation.
LOCAL/REMOT
Extinguished: keypad control
Flickering: terminal control
Light on: communication control
TRIP
Extinguished: normal operation state
Flickering: overload pre-warning state
Light on: fault state
