CHV180 series frequency inverter special for elevator Detailed function description
.54.
Function
Code
Name Description
Setting
Range
Factory
Setting
P5.13 AI1 lower limit
0.00V~10.00V 0.00~10.00
0.00V
P5.14
AI1 lower limit
corresponding
setting
-100.0%~100.0% -100.0~100.0
0.0%
P5.15 AI1 upper limit
0.00V~10.00V 0.00~10.00
10.00V
P5.16
AI1 upper limit
corresponding
setting
-100.0%~100.0% -100.0~100.0
100.0%
P5.17
AI1 filter time
constant
0.00s~10.00s 0.00~10.00
0.10s
These parameters determine the relationship between analog input voltage and the
corresponding setting value. When the analog input voltage exceeds the range of lower
limit and upper limit, it will be regarded as the upper limit or lower limit.
When the analog input is current signal, the 4~20mA current signal correspond to 0~5V
voltage signal.
For different applications, the corresponding value of 100.0% analog setting is different.
For details, please refer to description of each application.
Note: AI1 lower limit must be less or equal to AI1 upper limit.

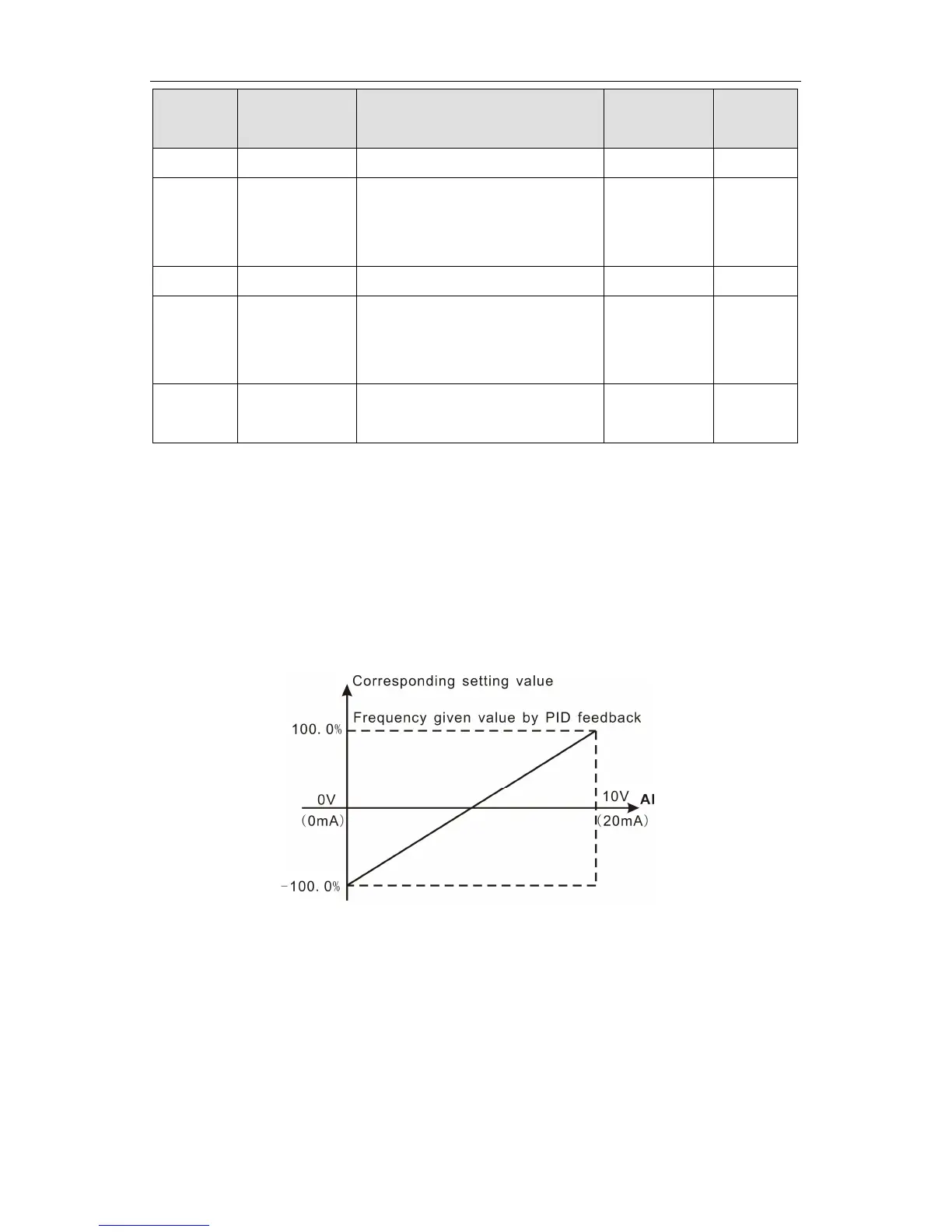

Figure 6.10 Relationship between AI and corresponding setting.
The input filter time of AI1: determine the accuracy of the analog input. This parameter
can be increased to prevent the analog input from transcending and becoming instable.
Then the input will be more stable but the accuracy will be reduced.
