CHV180 series frequency inverter special for elevator Extension card
.84.
Terminal name Specification
TERA+
TERA-
TERB+
TERB-
Input channel of the encoder signal
Voltage range: 12~15V
Response speed: 0~80kHz
TER-OA
TER-OB
Output frequency: 0~80kHz
Output impedance: 30Ω
Frequency range:1~256

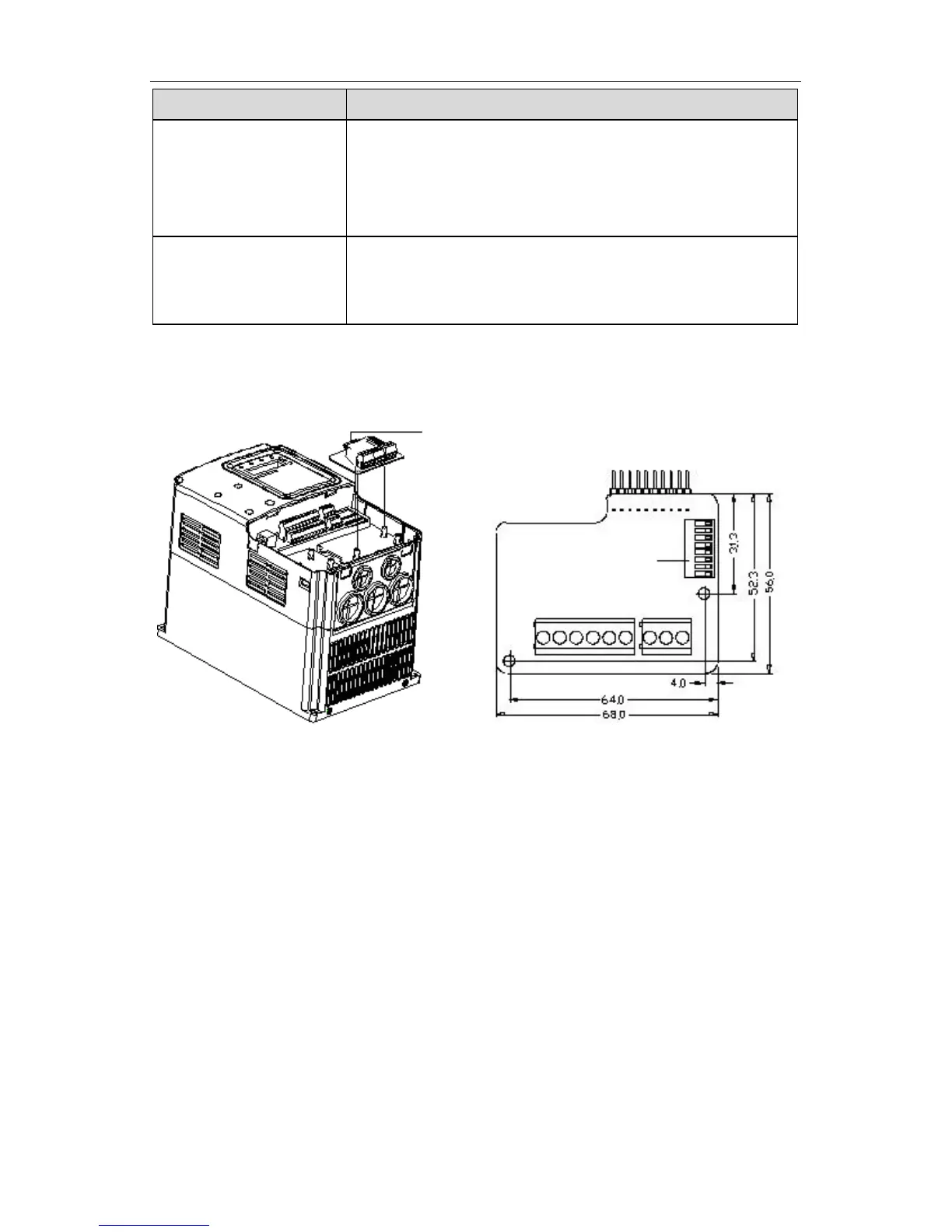

7.3.1.2 Dimensions and Installation of asynchronous motor PG card
Connector with control board
Installation diagram of PG card Outside dimensions and installation
dimensions of PG card
Two PB3×10 tapping screws for
PG card installation
Position of DIP switch
Figure 7.7 Installation and dimensions of PG card.
Note: Asynchronous PG card can be plugged in the below of the control board
CN9. Synchronous PG card can be plugged in CN9.
7.3.2 Operating Instructions of asynchronous motor PG card
7.3.2.1 Functions
Functions
When the user selects PG vector control, it is necessary to select PG Card. The
function of PG card includes 2 ways of processing circuit for orthogonal encoder signal
and it can receive differential, open collector and push-pull output signal and the power
supply of the encoder (+12V); it can also output frequency division for the encoder
signal (the output is 2 ways of orthogonal open collector signal), so the user can select
according to the actual use.
