INVT GD100-0R4G-SS2-PV User Manual

Goodrive100-PV series solar pumping inverters Function parameters
-33-
Function
code
Name
Detailed illustration of parameters
Default
Modify
Setting range of P04.01: 0.0%:
(automatic) 0.1%~10.0%
Setting range of P04.02: 0.0%~50.0%

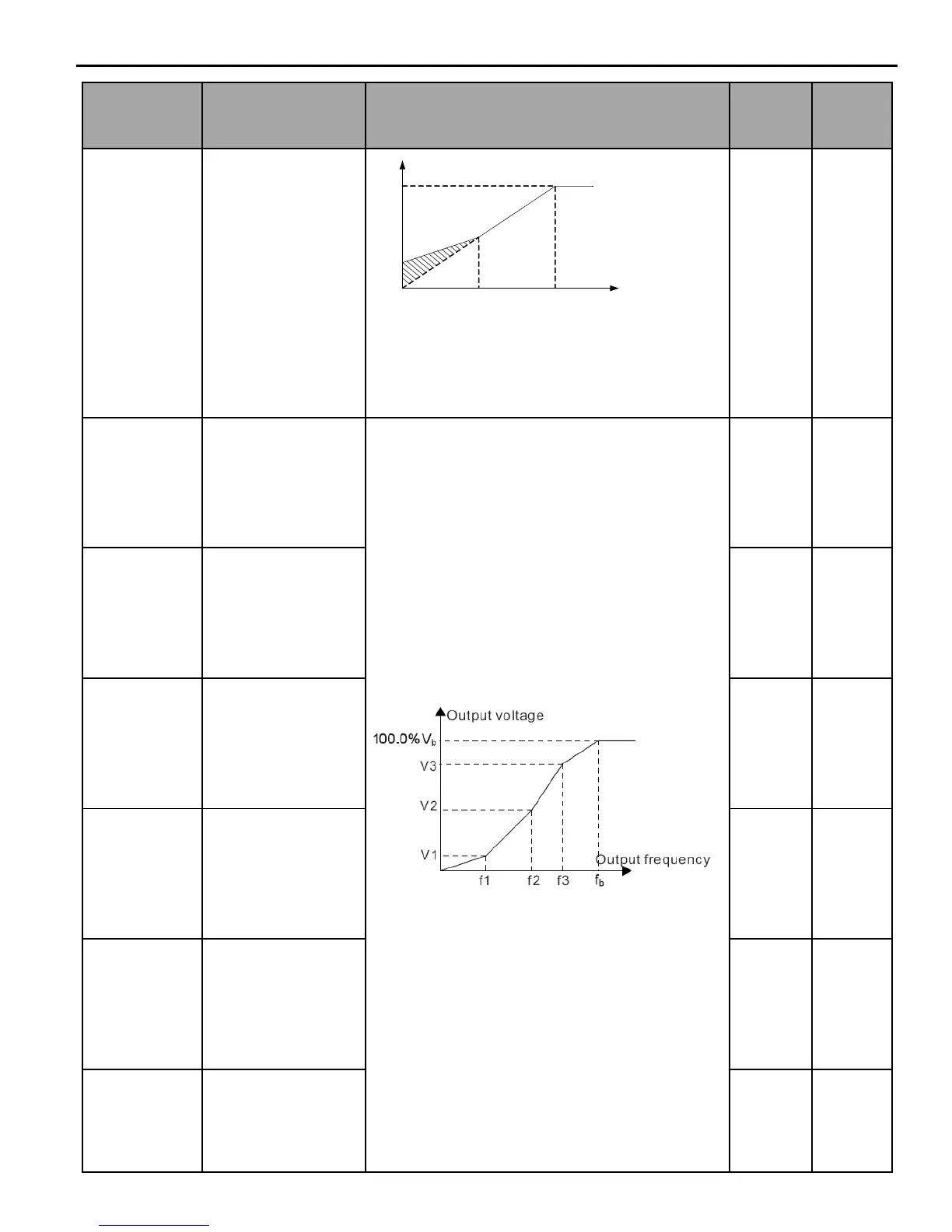

P04.03
V/F
frequency point 1
of motor 1
If P04.00 =1, the user can set V//F curve
by P04.03~P04.08.
V/F is set to the motor load.
Note: V1＜V2＜V3; f1＜f2＜f3. If the
low-frequency voltage is high,
overtemperature and burning may occur
and the overcurrent stall and protection
may occur to the inverter.
Setting range of P04.03: 0.00Hz~P04.05
Setting range of P04.04: 0.0%~110.0%
(rated voltage of motor1)
Setting range of P04.05: P04.03~P04.07
Setting range of P04.06:
0.0%~110.0%(rated voltage of motor1)
Setting range of P04.07:
P04.05~P02.02(rated frequency of
0.00Hz
○
P04.04
V/F
voltage point 1 of
motor 1
00.0%
○
P04.05
V/F
frequency point 2
of motor 1
00.00
Hz
○
P04.06
V/F
voltage point 2 of
motor 1
00.0%
○
P04.07
V/F
frequency point 3
of motor 1
00.00
Hz
○
P04.08
V/F
voltage point 3 of
motor 1
00.0%
○
b
f
截至
f
提升
V
b
V
Output voltage
Output frequency
