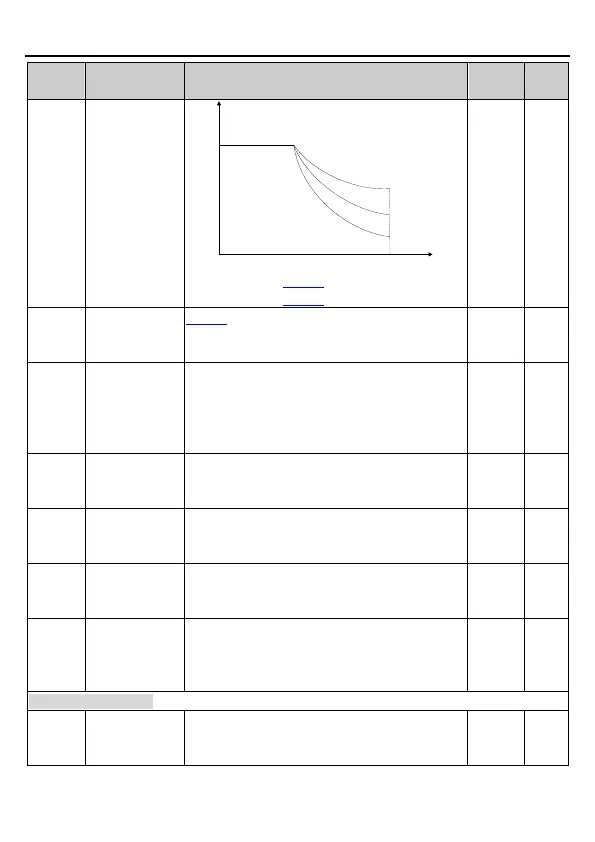

INVT Goodrive18 Series User Manual

Goodrive18 series two-in-one VFD Function parameters and function terminal reuse
-48-
Function
code
Name
Description
Default
value
Modify
Setting range of P03.22: 0.1–2.0
Setting range of P03.23: 10%–100%
P03.24
Max. voltage
limit
P03.24 sets the max. output voltage of the VFD,
which is dependent on the site situation.
Setting range: 0.0–120.0%
100.0%
◎
P03.25
Pre-exciting
time
Pre-exciting is performed for the motor when the
VFD starts up. A magnetic field is built up inside
the motor to improve the torque performance
during the starting process.
Setting range: 0.000–10.000s
0.300s
○
P03.26
Weakening
proportional
gain
0–8000
1200
○
P03.27
Speed display
selection in
vector control
0: Display the actual value
1: Display the set value
0
○
P03.28
Static friction
compensation
coefficient
0.0–100.0%
0.0%
○
P03.29
Dynamical
friction
compensation
coefficient
0.0–100.0%
0.0%
○
P04 SVPWM control
P04.00
V/F curve
setting
This function codes defines the V/F curve of
motor 1 to meet the needs of different loads.
0: Straight V/F curve, applying to constant torque
0
◎
T
f
0.1
Flux-weakening
coefficient of motor
1.0
2.0
Min. flux-weakening limit of motor
