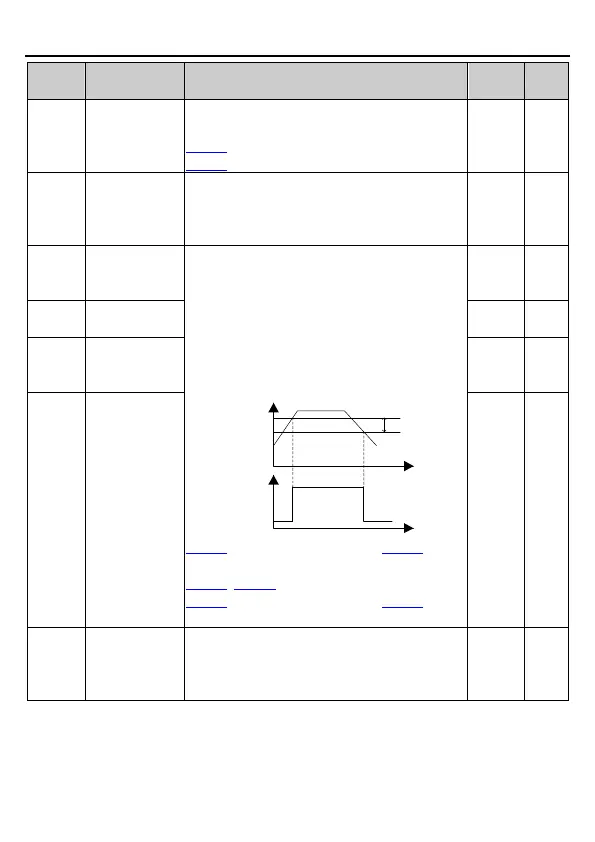

Goodrive18 series two-in-one VFD Function parameters and function terminal reuse
-73-
Function
code
Name
Description
Default
value
Modify
fault occurred to the time when automatic fault
reset action.
P08.28 setting range: 010
P08.29 setting range: 0.13600.0s
P08.30
Frequency
decreasing ratio
in drop control
The output frequency of the VFD changes as the
load changes. It is mainly used to balance the
power when several motors drive one load.
Setting range: -50.00Hz50.00Hz
0.00Hz
P08.32
FDT1 electrical
level detection
value
When the output frequency exceeds the
corresponding frequency of FDT electrical level,
the multifunction digital output terminal
continuously outputs the signal of "Frequency
level detection FDT". The signal is invalid only
when the output frequency decreases to a value
lower than the frequency corresponding to (FDT
electrical levelFDT lagging detection value).
Output frequency f
FDT level
Y, RO1, RO2
FDT lag
Time t
Time t
P08.32 setting range: 0.00HzP00.03 (Max.
output frequency)
P08.33, P08.35 setting range: 0.0100.0%
P08.34 setting range: 0.00HzP00.03 (Max.
output frequency)
50.00Hz
P08.33
FDT1 lagging
detection value
5.0%
P08.34
FDT2 electrical
level detection
value
50.00Hz
P08.35
FDT2 lagging
detection value
5.0%
P08.36
Frequency
arrival detection
amplitude value
When the output frequency is within the
detection range, the multifunction digital output
terminal will output the signal of "Frequency
arrival".
0.00Hz
