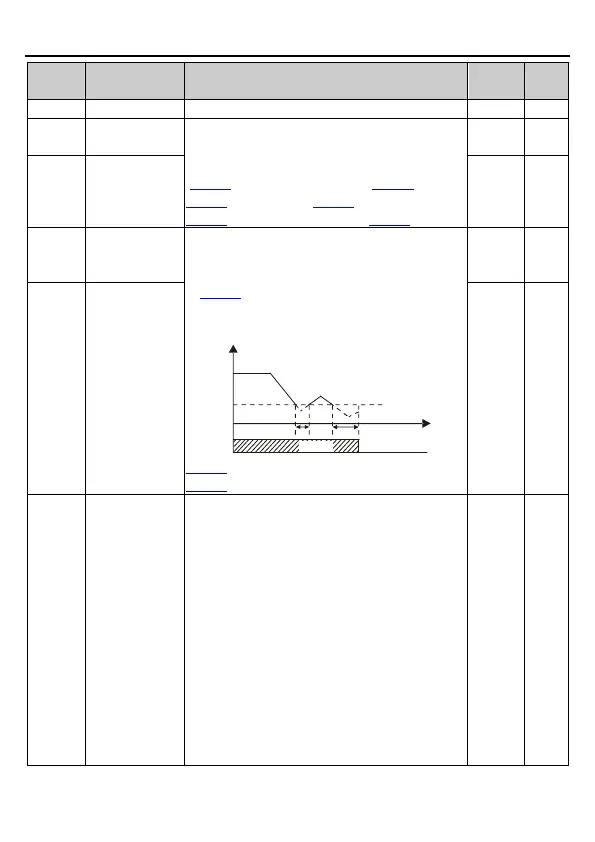

Goodrive18 series two-in-one VFD Function parameters and function terminal reuse
-80-
Function
code
Name
Description
Default
value
Modify
Setting range: 0.0100.0%
P09.09
Upper limit of
PID output
The function codes are used to set the upper and
lower limits of PID adjustor output.
100.0 % corresponds to max. frequency
(P00.03) or the max. voltage of (P04.31).
P09.09 setting range: P09.10100.0%
P09.10 setting range: -100.0%P09.09
100.0%
P09.10
Lower limit of
PID output
0.0%
P09.11
Feedback
disconnection
detection value
When the detection value is smaller than or
equal to the feedback disconnection detection
value, and the lasting time exceeds the set value
in P09.12, the VFD will report "PID feedback
disconnection fault" and the keypad will display
PIDE.
Time t
Output frequency f
t1
t2
P09.11
t1< t2, so the VFD continues running
t2=P09.12
Running Fault output PIDE
PIDE
P09.11 setting range: 0.0100.0%
P09.12 setting range: 0.03600.0s
0.0%
P09.12
Feedback
disconnection
detection time
1.0s
P09.13
PID adjustment
selection
0x00000x1111
LED ones:
0: Keep on integral adjustment when the
frequency achieves the upper/lower limit
1: Stop integral adjustment when the frequency
reaches the upper/lower limit
LED tens:
0: Same as the main reference direction
1: Opposite to the main reference direction
LED hundreds:
0: Limit according to the max. frequency
1: Limit according to A frequency
LED thousands:
0: A+B frequency, buffering
acceleration/deceleration of main reference
0x0001
