INVT iMars MG Series User Manual

INVT iMars MG series grid-tied solar inverters Product overview
2.1 Solar grid-tied power generation system
The photovoltaic grid-tied power generation system consists of solar modules, grid-tied inverter,
metering devices and public grid.

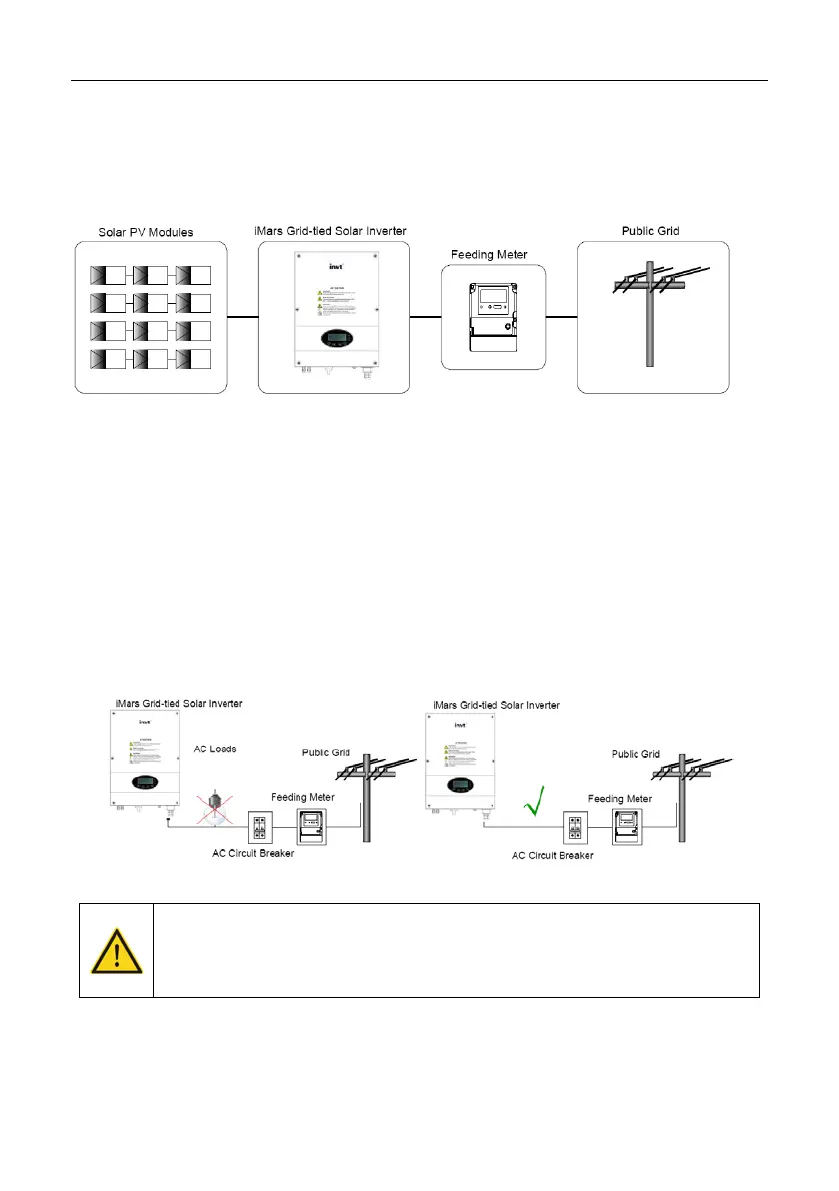

Figure 2.1 Application of iMars MG series grid-tied solar inverters
Grid-tied solar inverter is the core of photovoltaic power generation system. The solar energy can
be converted into DC electric energy through solar modules and then be changed into sinusoidal
AC energy which has the same frequency and phase with the public grid by grid-tied solar
inverters, and then be fed to the grid.
iMars MG series grid-tied solar inverters are only applied in solar grid-tied power generation
system and its DC input are only composed of crystalline silicon solar modules whose negative
and positive poles are not grounded. Do not connect any AC loads between the inverter and
breakers which is shown as the figure below:
Figure 2.2 Connection of inverters and AC breakers
 The recommended solar modules need to comply with IEC61730 Class A rating.
 iMars MG series grid-tied solar inverters are only for crystalline silicon solar
modules.
