INVT iMars MG Series User Manual

INVT iMars MG series grid-tied solar inverters Product overview
2.2 Products appearance
2.2.1 Single-phase inverters
1
2
3
4
5
6
7
8
9

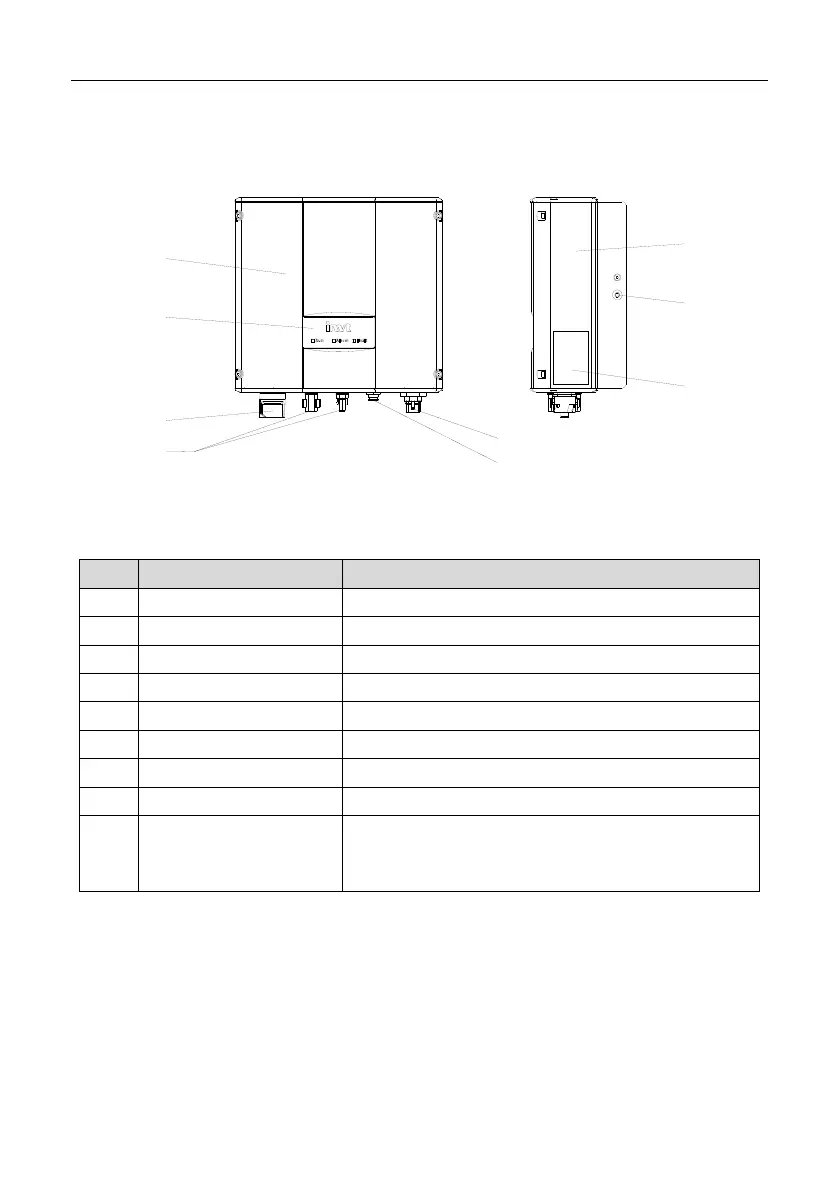

Figure 2.3 Products appearance of single-phase inverter
Table 2-1 Parts instruction of single-phase inverter
No.
Name
Instruction
1
Cover
2
Operational panel
LED indicators
3 DC switch On –off of the DC input
4 DC input port For the connection of solar modules
5
AC terminal
For the connection of AC output
6
Communication port
RS485 and EXT communication port
7
Cooling chamber
8 Radiator
9 Name plate
For rated parameters and safety precautions
of the inverter
2.3 Name plates
After receiving, please check the information of name plates are the ordered one. If not, please
contact with the supplier as soon as possible.
- 11 -
