INVT iMars MG series grid-tied solar inverters Installation
(5) The installation position keeps away from the interface of other electrical devise.
(6) The inverter needs to be installed on a firm and sturdy surface, such as wall and metal
bracket and so on.
(7) The installation surface should be perpendicular to the horizontal line. Refer to Figure 3.3.

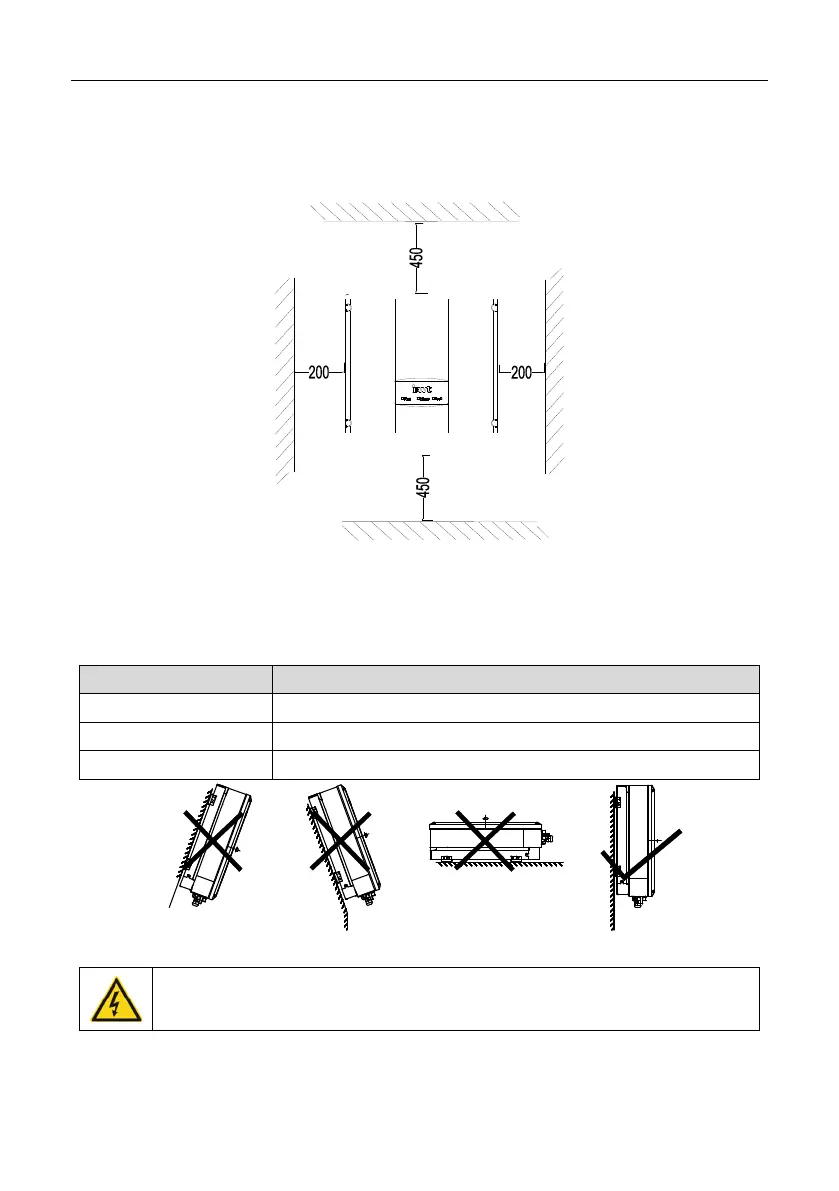

Figure 3.2 Installation space
Ensure there is sufficient space for heat-releasing. In generally, below space requirement should
be met:
Table 3-3 Detailed installation space
Minimum clearance
Lateral 200mm
Top
450mm
Bottom
450mm
Figure 3.3 Installation position
 Do not remove any part and component of the inverter unintended; otherwise
damage to the device and physical injury may occur.
3.2.3 Connection cables
The user can select connection cable according the table below:
- 21 -
