INVT iMars MG Series User Manual

INVT iMars MG series grid-tied solar inverters Installation
Model
DC input
AC output
Recommended DC
breakers (optional for
length >100m)
Recommended AC
breakers
MG5KTL/ MG4K6TL
/MG4K6TL-2M/MG5KTL-2M
DC600V, C16A, 2P AC240V, C32A, 2P
3.3 Mechanical installation
Since the installation place can be made by different construction materials, the inverter can be
installed by different mounting methods. Take the typical installation environment as the example,
the manual describes how to install the inverter on concrete wall. And because of different
structure, the single-phase and three-phase inverter has different instillation modes.
The inverter should be mounted in a vertical position of 90°to the horizontal line as shown in figure
3.3.
3.3.1 Installation of single-phase inverter
3-Ø8
A

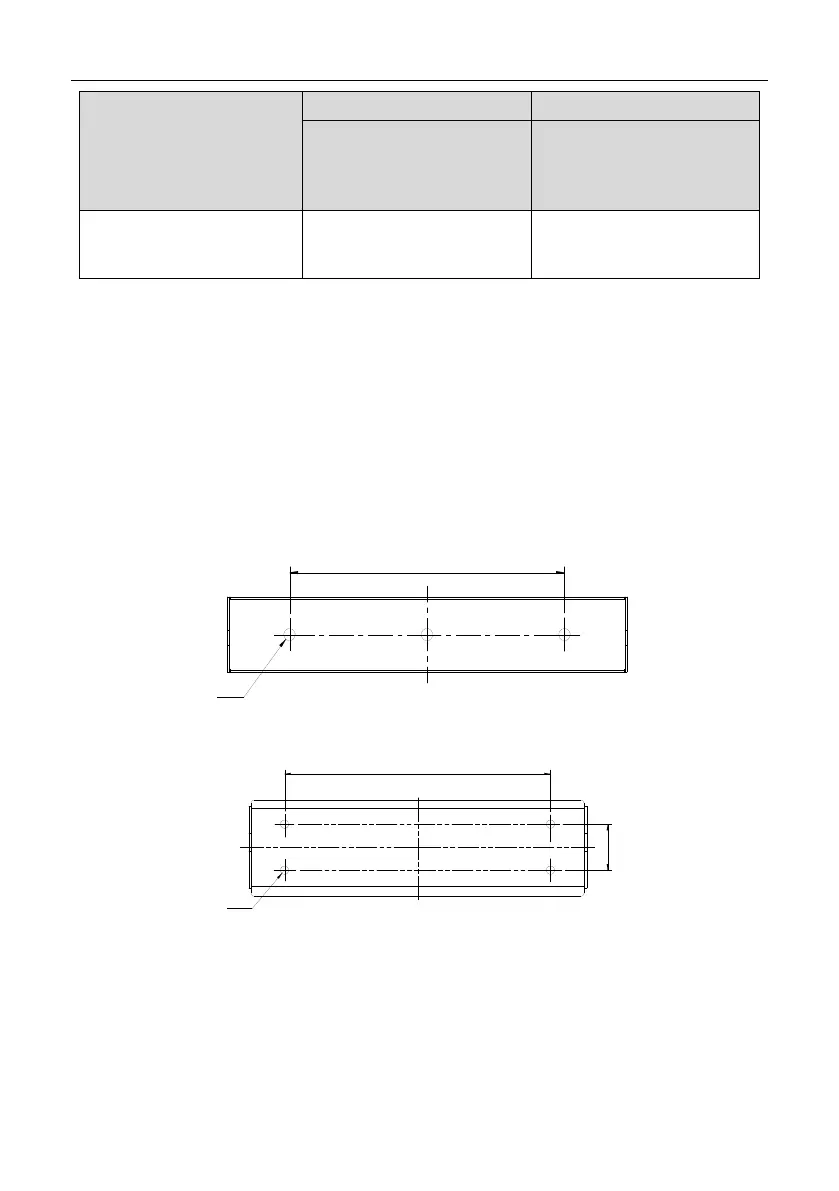

Figure 3.4 Installation bracket of 0.75~3kW inverter
4-Ø8
A
B
Figure 3.5 Installation bracket of 4~5kW inverter
- 23 -
