INVT iMars MG Series User Manual

INVT iMars MG series grid-tied solar inverters Installation
Table 3-6 Size of installation bracket
Model
Installation hole
A(mm)
MG750TL/MG1K1TL / MG1K5TL
/MG2KTL /MG3KTL
195
MG4KTL/MG4K6TL/MG5KTL/MG3KTL-2M/
MG4KTL-2M/MG4K6TL
260
Table 3-7 Instruction of installation bracket
No.
Structure instruction
1
Installation holeΦ8
2
Hexagon assembling bolt hole M4
Installation steps of single-phase inverter:
(1) At first, take down the installation bracket from the machine by only removing M5 hex socket
cap screws;
(2) Then use expansion bolts to fix the installation bracket at the proper location of the walls;
(3) Lift the inverter to suspend it on the installation bracket through M8 hex socket cap screws;
(4) Finally, fasten M5 hex socket cap screws connecting the inverter with the bracket. For firm
installation, the operators cannot release the device until the inverter is installed on the bracket
firmly.

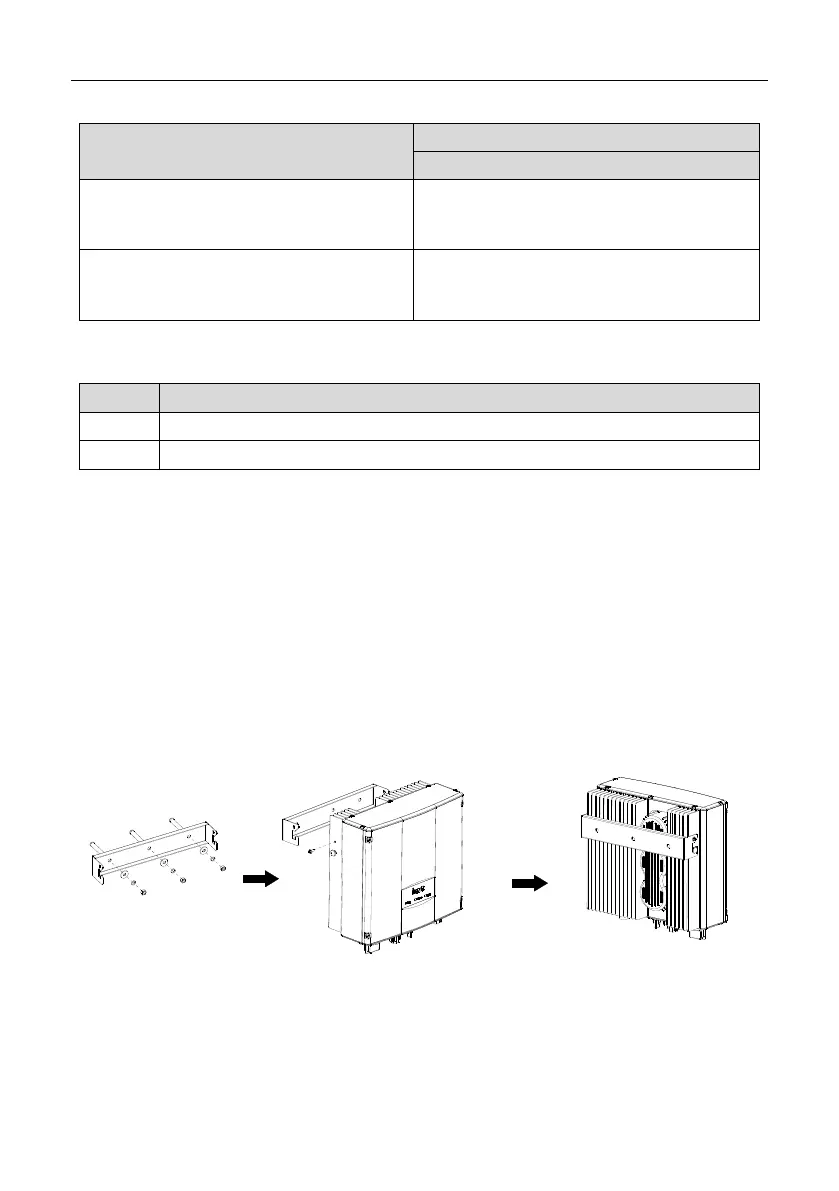

Figure 3.6 Installation of single-phase inverter
- 24 -
