INVT iMars MG Series User Manual

INVT iMars MG series grid-tied solar inverters Monitoring communication
Interface Parameters function
Others
1. TCP Server, TCP Client, UDP mode and UDP Server mode
2. Operation interface, target IP address and interface can be set
in random
3. Disconnect autom
atically after the network disconnection,
ensure the reliable TCP connection of the whole network
4. Support TCP/IP/UDP network protocol stack
5. IE configuration interface
6. Operation mode, Transparent data transmission or agreement
transfer mode
7. Input power supply: 5VDC~12V/170mA~300mA and the power
is provided by the inverter directly
8. Working temperature: -20~70°C
9. Working humidity:10%-90%RH (no condensation)
10. Storage temperature: -40-80 ℃
11. Storage humidity: 5%-90%RH (no condensation)
12. Other frequency: 20MHz, 40MHz and automatic
WiFi200 is AP mode in the factory. It can be connected with the 485 communication interface of
inverters and visited by computer or mobile software.
6.2.1.2 Monitoring solutions
WiFi200 communication converter has 3 monitoring solutions to establish the solar power
generation system for different requirements:
The first solution: direct connection. Short distance site control is available.
The second solution: router LAN. Remote LAN monitoring is available.
The third solution: router internet. Remote access internet control is available.
1. Direct connection

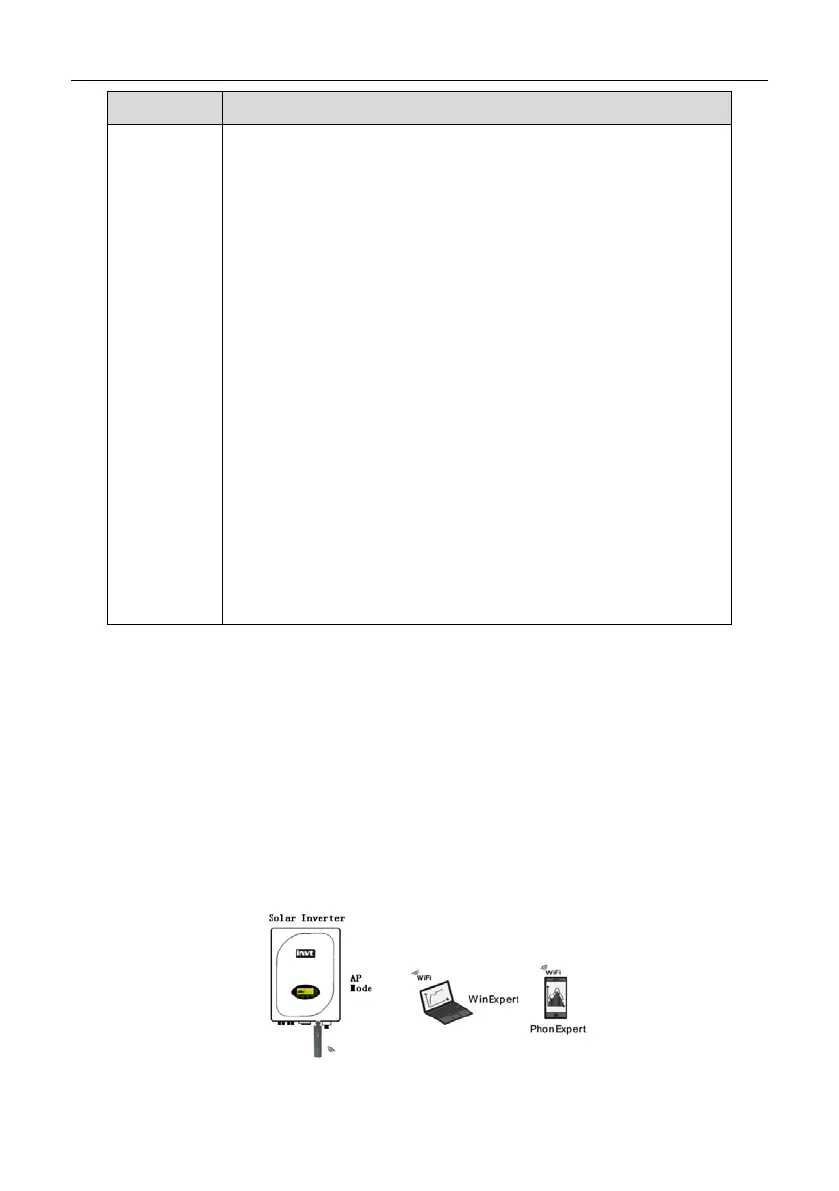

Figure 6.5 Direct connection solution
