INVT iMars MG Series User Manual

INVT iMars MG series grid-tied solar inverters Monitoring communication
Direct connection solution is suitable for short distance monitoring. The wiring is as the figure
above. Hardware and software devices such as iMars series solar inverters, WiFi200
communication converters, computers with the function of WiFi signal receiving), and WinExpert
solar monitoring software are needed in the establishment of direct solar monitoring. WiFi200
operates in AP mode which is also the default mode of the module. The monitoring device can visit
the inverter through wireless and wire modes. Refer to 6.2.1.3 for the configuration of WiFi200
communication converter and computers.
2. Router LAN

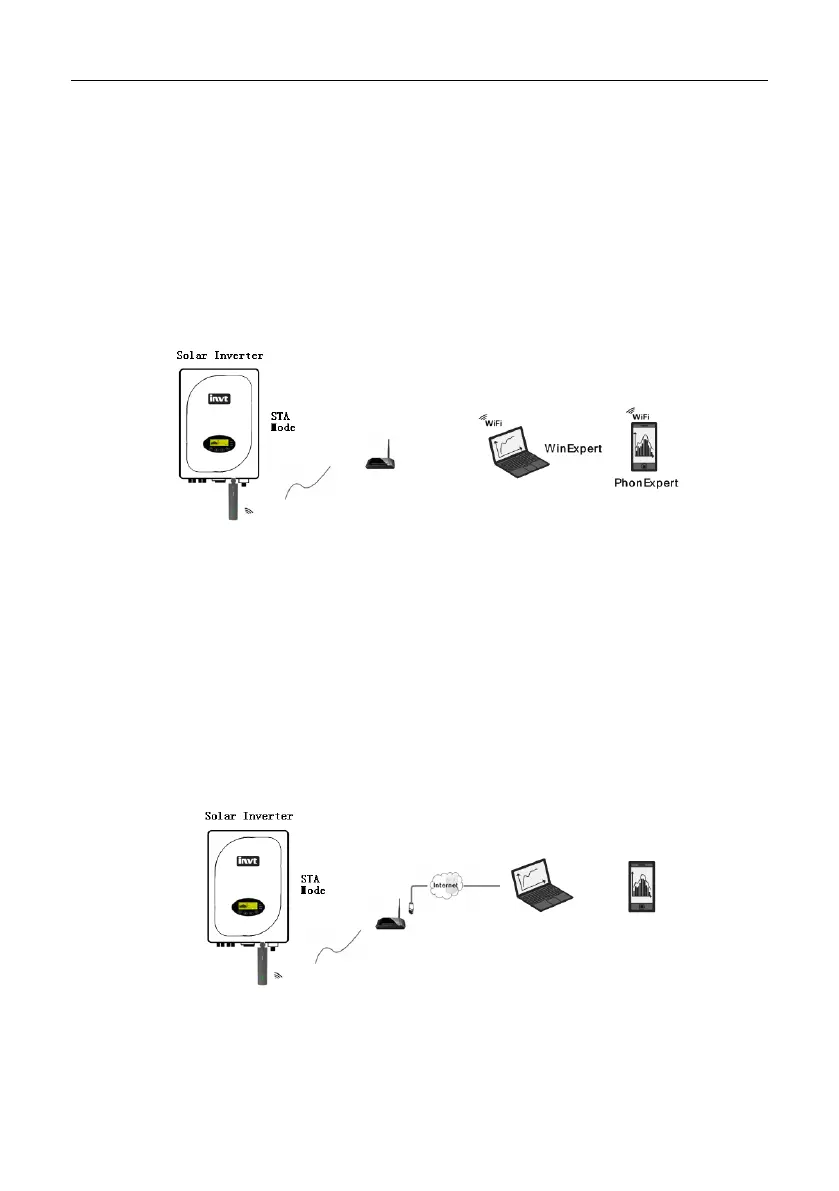

Figure 6.6 Router LAN solution
Router LAN is suitable for remote LAN monitoring. The wiring is as the figure above. Hardware
and software devices such as iMars series solar inverters, WiFi200 communication converters,
routers, devices with the function of WiFi signal receiving (such as computers and mobile phones)
are needed in the establishment of router internet monitoring. WinExpert solar monitoring software
or mobile phone APP are needed for the operation and data viewing.
Different configurations are needed in the wire or wireless connection between WiFi200 and
routers, monitoring devices and routers. Refer to 6.2.1.3 for detailed operation.
3. Router internet
Figure 6.7 Router internet solution
Router internet is suitable for internet monitoring without distance limit. But the servers of INVT
solar monitoring system are needed. The wiring is as the figure above. Hardware and software
- 55 -
